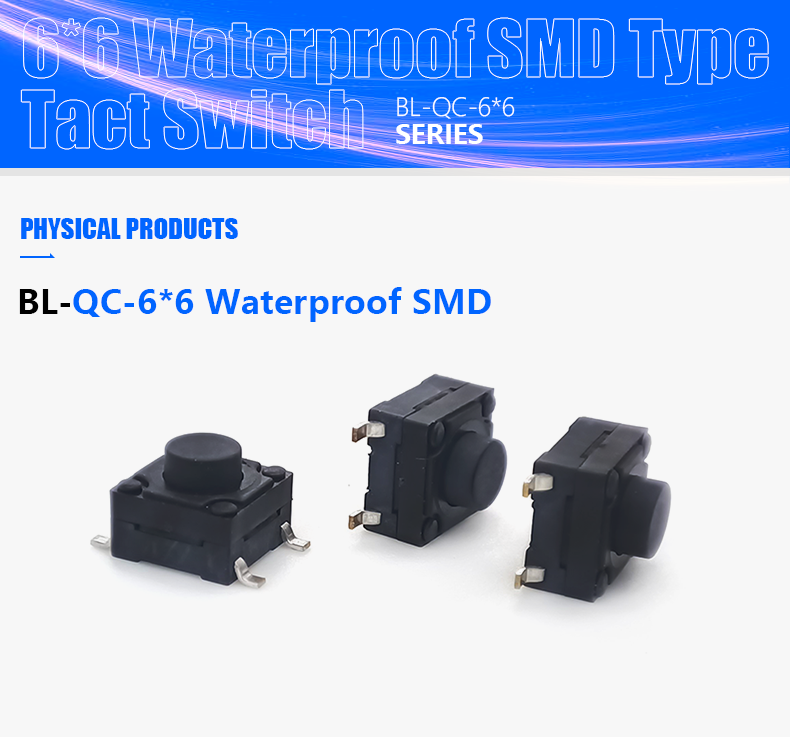

Beelee 4pin tact switch 6x6 waterproof tactile tact push button switch mini
- Certification:RoHS
- Whether the smart:NO
- Place of Origin:Guangdong, China
- Brand Name:Beelee
- Model Number:BL-QC-6x6x5WS
- Max. Current:50mA
- Max. Voltage:12V
- LED:NO
- Rating:DC12V 50mA
- Dielectric voltage proof:AC 250V 50Hz/1 min
- Operating temperature range:-20℃ to +70℃
- Mechanical life:100000cycles
- Operating force:160±30gf,260±50gf
- Travel:0.3±0.1mm
The BL-QC-6*6 waterproof SMD is applicable to the requirements for TACTILE SWITCH (MECHANICAL CONTACT)
01.Lightly striking the center of the stem at a rate encountered in normal use (3 to 4 operations per sec),Bounce shall be tested when “ON” and “OFF”
02.Placing the switch such that the direction of switch operation is vertical and then applying static load of 2times operating force to the center of the stem; the travel distance for the switch to come to a stop shall be measured.

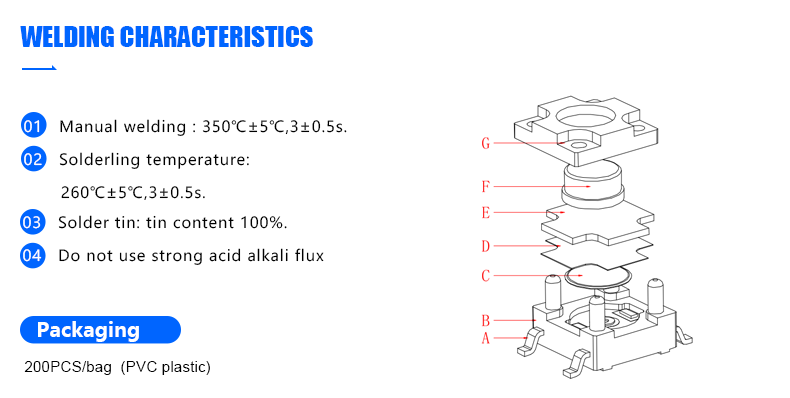

03.Following the soldering process,do not try to clean the switch with a solvent or the like.
| ITEM | STANDARD |
| Rating | DC12V 50mA |
| Insulation Resistance | >100MΩ |
| Dielectric voltage proof | AC 250V 50Hz/1 min |
| Contact Resistance | ≤100mΩ |
| Operating temperature range | -20℃ to +70℃ |
| Mechanical life | 100000cycles |
| Operating force | 160±30gf,260±50gf |
| Travel | 0.3±0.1mm |
1.Q:Can I get sample from you?
A:Yes,we can provide the free samples for your testing,please contact us for free and tell us which product you need.
2.Q:Do you accept customization?
A:Yes,customization is acceptable,please contact our sales staffs for consult.
3.Q:Can you provide help for technical issues?
A:Yes,we have more than 15 years of research and development in the electronic switch industry. If you need technical help in the purchase process, please feel free to contact us
