ABS plastic door magnetic switch signal quantity proximity switch

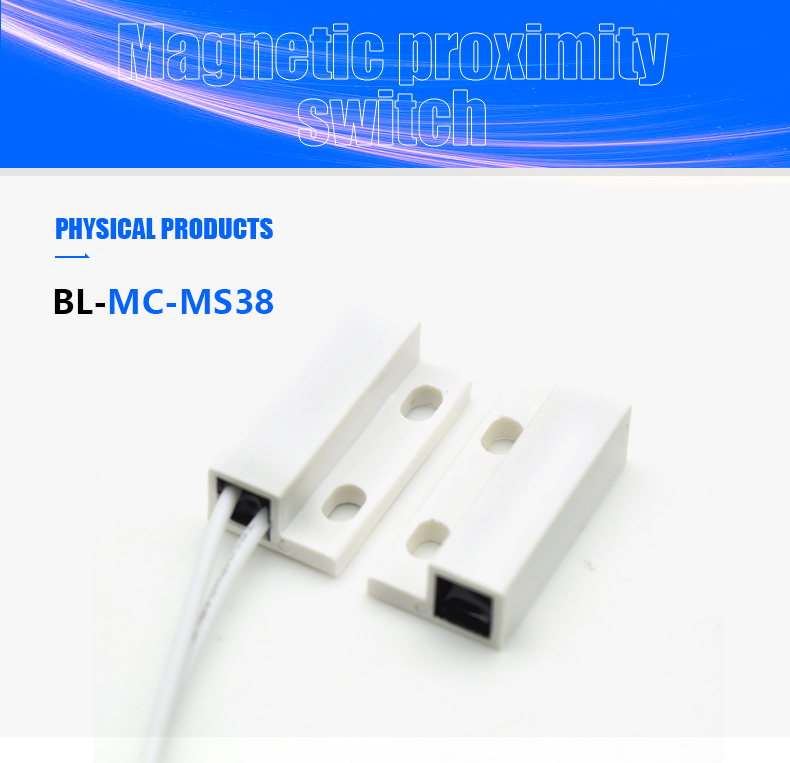

BL-MC-MS38 Door magnetic switch ABS plastic magnetic door sensor switch signal quantity proximity switch

BL-MC-MS38
minimum order
1 piece
Quantity:
Contact Now
add to cart
  • Series:Proximity Sensor
  • Features:magnetic door sensor
  • Mounting Type:Magnetic spring is normally open
  • Description:Independence, magnetic back, Inductive Sensor
  • Manufacturing Date Code:Contact Us
  • Model Number:BL-MC-MS38
  • Type:Magnetic Proximity Sensor
  • Place of Origin:Guangdong, China
  • Brand Name:Beelee
  • Use:Position Sensor
  • Theory:Inductance Sensor
  • Output:Analog SENSOR
  • Contact resistance value (RC):100max
  • Disconnect value (D0):4min AT
  • Contact time withstand voltage:150~250 VDC
  • Max.switching voltage:30~200 VAC/DC
  • Max.switching current(VDC):0.2~0.5
  • Max.energized current:0.5~1 A
  • Operating temperature range:-40℃~80℃
  • Installation method:Embedded
  • Shell material:ABS material
  • Wire length:300mm





01. It is not recommended to install in an iron environment (where the magnetic field cannot approach the sensor).
02. The two parts of the magnetic switch must be installed in parallel, with a spacing of<1cm and cannot be misaligned.
03. The load through the magnetic switch cannot exceed the calibrated value.
04. Avoid using in environments with strong magnetic fields and high currents.




project
unit
NO Type
NC Type
NC/NO Type
model
--
BL-MC-MS38-NO
BL-MC--MS38
BL-MC--MS38-T

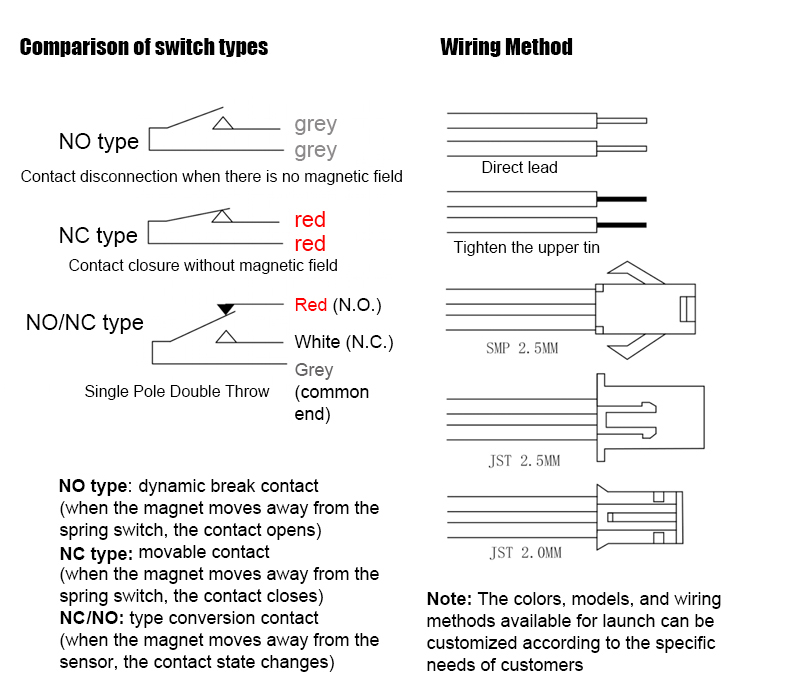

Switching mode
--
Normally open
Normally closed
convert
Contact resistance value (RC)
mΩ
100max
100max
100max
Disconnect value (D0)
AT
4min
4min
4min
Contact time withstand voltage
VDC
250min
150min
150min
insulation resistance
Ω
1010min
109min
109min
Static electricity capacity between contacts
pF
0.3max
1.5max
1.5max
contact rating
VA
10
3
3
Maximum switching voltage
V·AC/DC
200
30
30
Maximum switching current
V·DC
0.5
0.2
0.2
Maximum energized current
A
1
0.5
0.5
Action time
ms
0.4max
1.0max
1.0max
Jump time
ms
0.3max
1.5max
1.5max
Release time
ms
0.05max
0.05max
0.05max
resonant frequency
Hz
5000±400
6000±400
6000±400
Maximum drive frequency
Hz
500
200
200
Operating temperature range
℃
-40~80
-40~80
-40~80
Installation method
--
Embedded
Embedded
Embedded
Shell material
--
ABS material
ABS material
ABS material
Shell color
--
White/Black/Brown
White/Black/Brown
White/Black/Brown
Wire specifications
mm
1007 22#
1007 22#
1007 22#
Wire length
mm
300
300
300
Wire color
--
grey
red
Grey/red/white
Action distance
mm
≥10mm
≥5mm
≥5mm
Product weight
right
10g
10g
10g
packing of products
package
20 pairs/pack
20 pairs/pack
20 pairs/pack
