proximity sensor

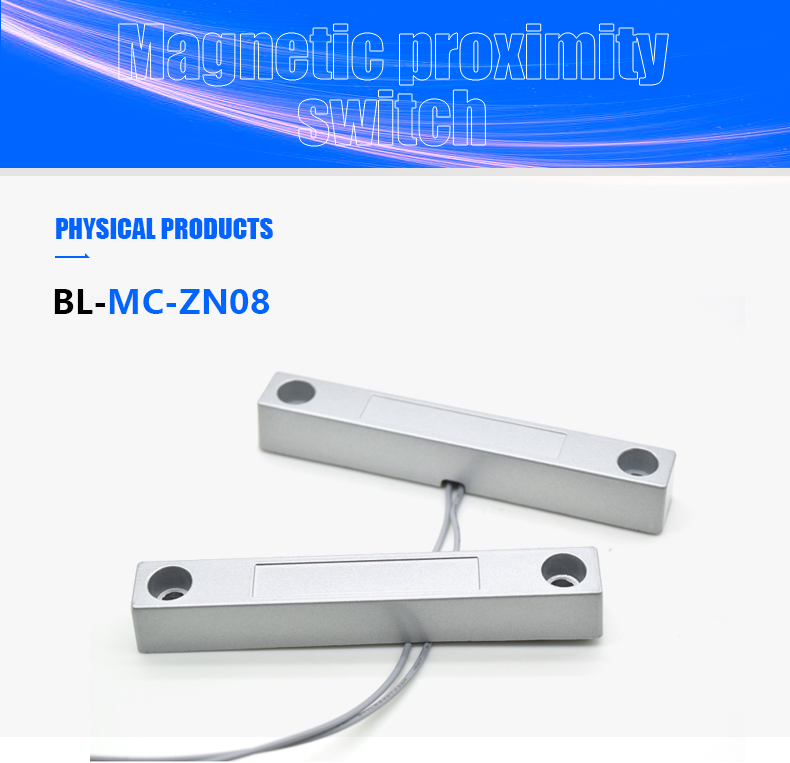

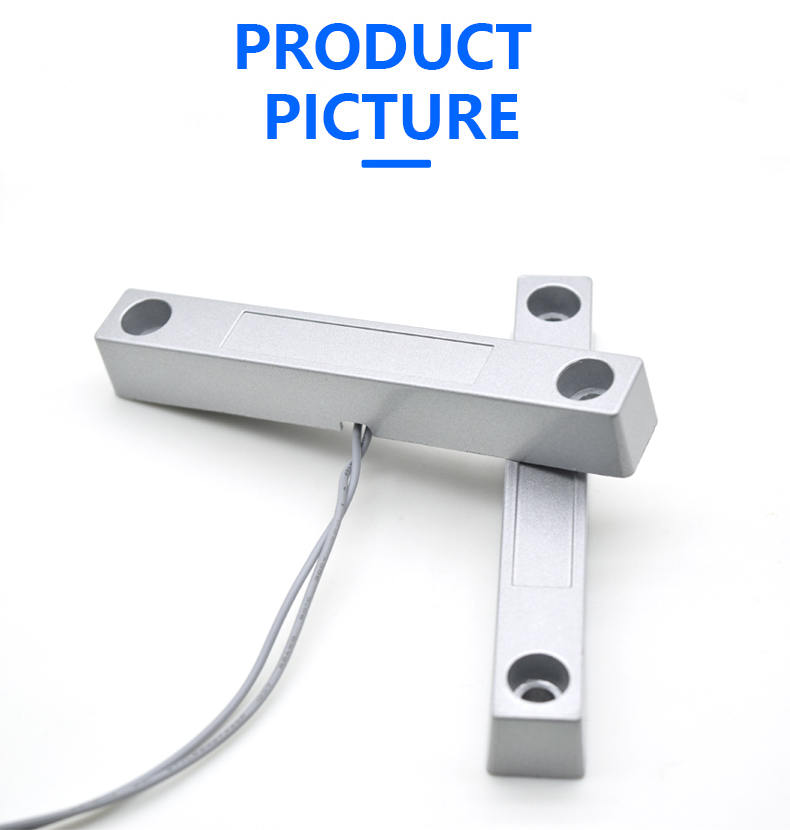

BL-MC-ZN08 Magnetic switch signal quantity door status sensor switch metal material cabinet magnetic door sensor

BL-MC-ZN08
minimum order
1 piece
Quantity:
Contact Now
add to cart
  • Series:Proximxty Sensor
  • Features:No standby power consumption
  • Mounting Type:Non contact working mode
  • Description:Metal proximity switch, Inductive Sensor
  • Model Number:BL-MC-ZN08
  • Type:Magnetic Proximity Sensor
  • Place of Origin:Guangdong, China
  • Brand Name:Beelee
  • Use:Position Sensor
  • Theory:Inductance Sensor
  • Output:Analog SENSOR
  • Contact resistance value (RC):100max mΩ
  • Disconnect value (D0):4min AT
  • Contact time withstand voltage:150~250min
  • Static electricity capacity:0.3~1.5max
  • contact rating:3~10 VA
  • Max switching voltage:30~200 VAC/DC
  • Max switching current:0.2~0.5 VDC
  • energized current:0.5~1 A
  • Operating temperature range:-40℃~80℃
  • Installation method:Surface mounted

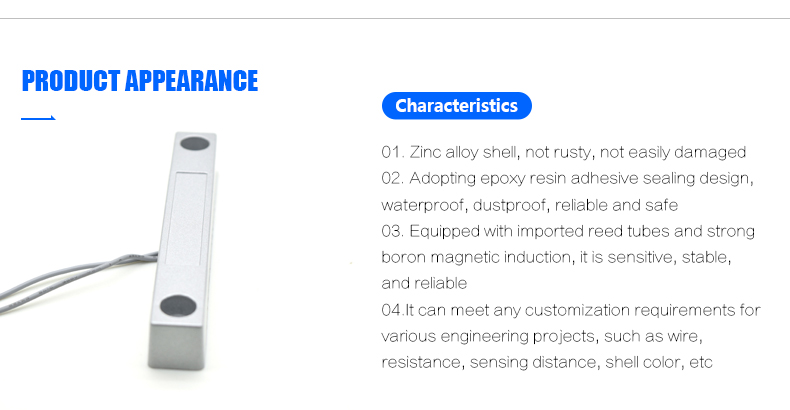

01. Zinc alloy shell, not rusty, not easily damaged

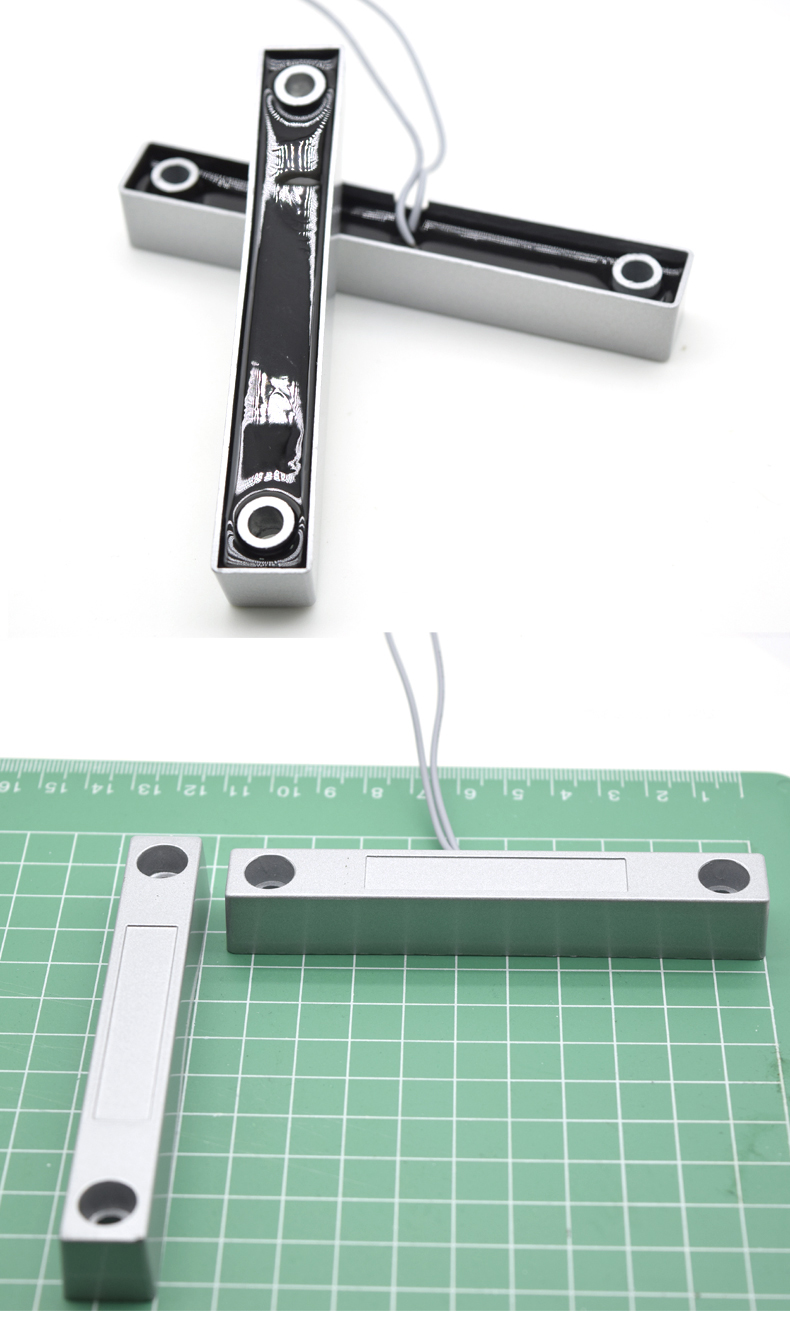

02. Adopting epoxy resin adhesive sealing design,waterproof, dustproof, reliable and safe
03. Equipped with imported reed tubes and strongboron magnetic induction, it is sensitive, stable,and reliable
04.lt can meet any customization requirements forvarious engineering projects, such as wire.resistance, sensing distance, shell color, etc












project
unit

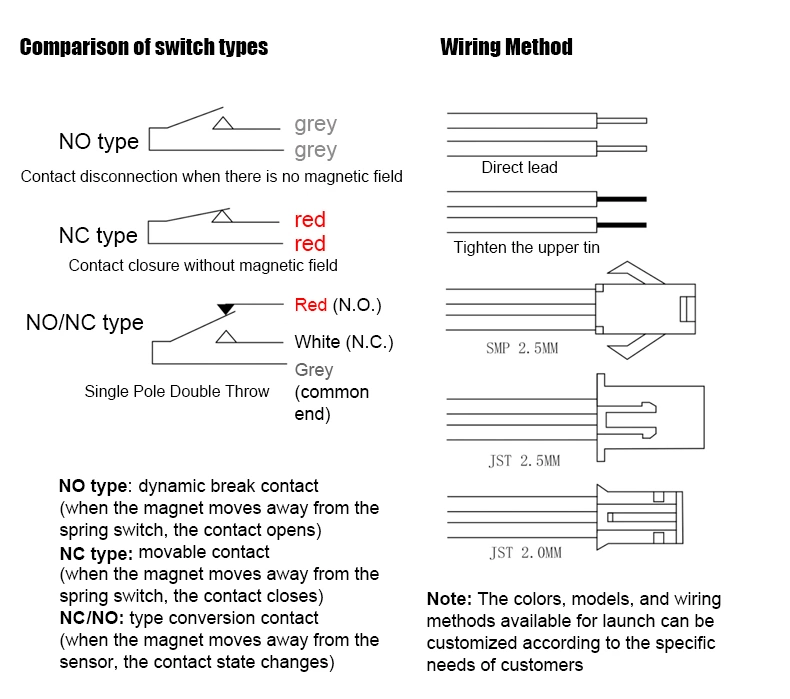

NO Type
NC Type
NC/NO Type
model
--
BL-MC-ZN08-NO
BL-MC-ZN08
BL-MC-ZN08-T
Switching mode
--
Normally open
Normally closed
convert
Contact resistance value (RC)
mΩ
100max
100max
100max
Disconnect value (D0)
AT
4min
4min
4min
Contact time withstand voltage
VDC
250min
150min
150min
insulation resistance
Ω
1010min
109min
109min
Static electricity capacity between contacts
pF
0.3max
1.5max
1.5max
contact rating
VA
10
3
3
Maximum switching voltage
V·AC/DC
200
30
30
Maximum switching current
V·DC
0.5
0.2
0.2
Maximum energized current
A
1
0.5
0.5
Action time
ms
0.4max
1.0max
1.0max
Jump time
ms
0.3max
1.5max
1.5max
Release time
ms
0.05max
0.05max
0.05max
resonant frequency
Hz
5000±400
6000±400
6000±400
Maximum drive frequency
Hz
500
200
200
Operating temperature range
℃
-40~80
-40~80
-40~80
Installation method
--
Surface mounted
Surface mounted
Surface mounted
Shell material
--
Zinc alloy
Zinc alloy
Zinc alloy
Shell color
--
Silver Grey
Silver Grey
Silver Grey
Wire specifications
mm
1007 22#
1007 22#
1007 22#
Wire length
mm
300
300
300
Wire color
--
grey
red
Grey/red/white
Action distance
mm
≥45mm
≥35mm
≥35mm
Product weight
right
110g
110g
110g
packing of products
package
5 pairs/pack
5 pairs/pack
5 pairs/pack
