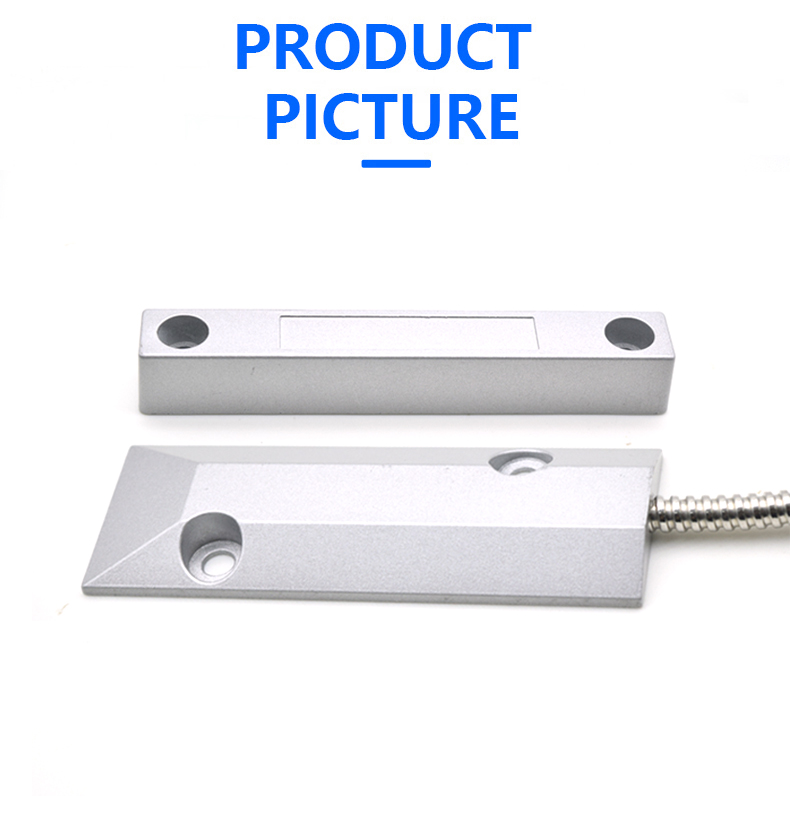

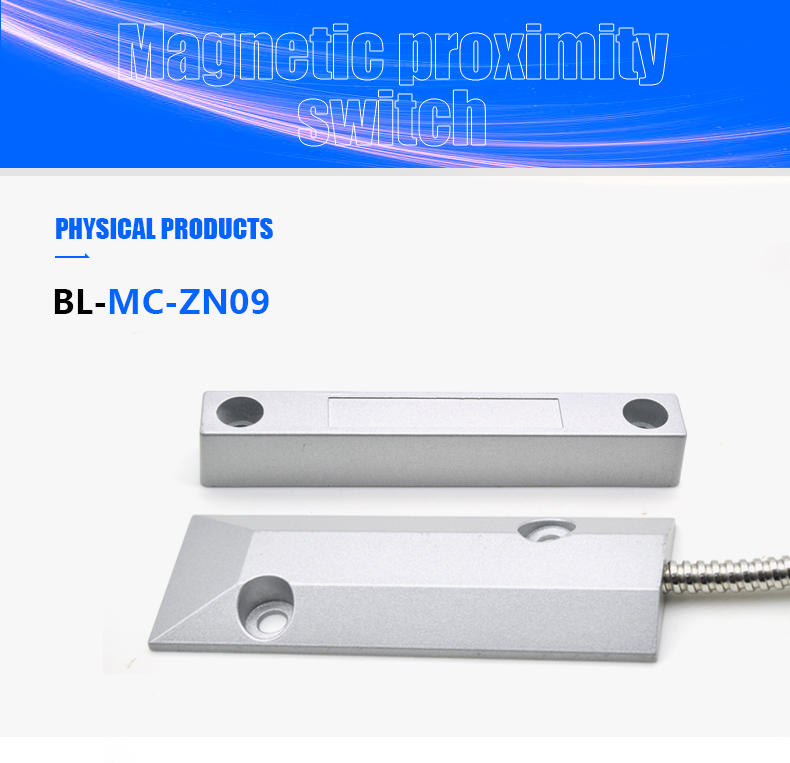

BL-MC-ZN09 Cable roller gate magnetic switch magnetic induction switch sealing, waterproof, proximity magnetic control switch

BL-MC-ZN09

minimum order

1 piece

Quantity:

Contact Now

add to cart

Series:Proximxty Sensor
Features:No standby power consumption
Mounting Type:Non contact working mode
Description:Metal proximity switch, Inductive Sensor
Model Number:BL-MC-ZN09
Type:Magnetic Proximity Sensor
Place of Origin:Guangdong, China
Brand Name:Beelee
Use:Position Sensor
Theory:Inductance Sensor
Output:Analog SENSOR
Contact resistance value (RC):100max mΩ
Disconnect value (D0):4min AT
Contact time withstand voltage:150~250min
Static electricity capacity:0.3~1.5max
contact rating:3~10 VA
Max switching voltage:30~200 VAC/DC
Max switching current:0.2~0.5 VDC
energized current:0.5~1 A
Operating temperature range:-40℃~80℃
Installation method:Surface mounted

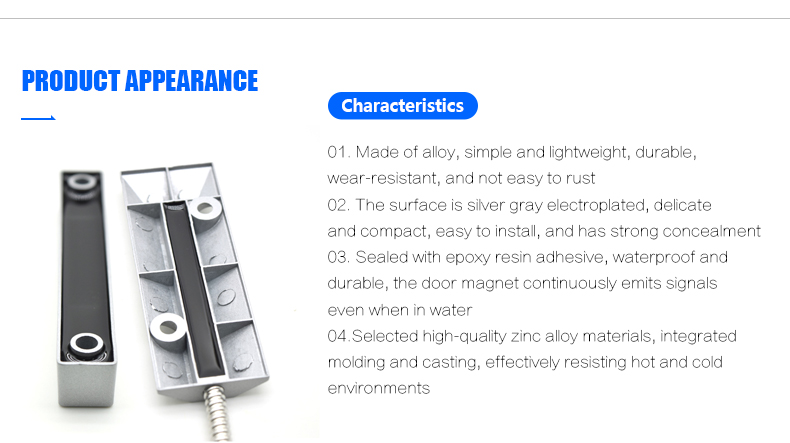

01. Made of alloy, simple and lightweight, durable, wear-resistant, and not easy to rust
02. The surface is silver gray electroplated, delicate and compact, easy to install, and has strong concealment

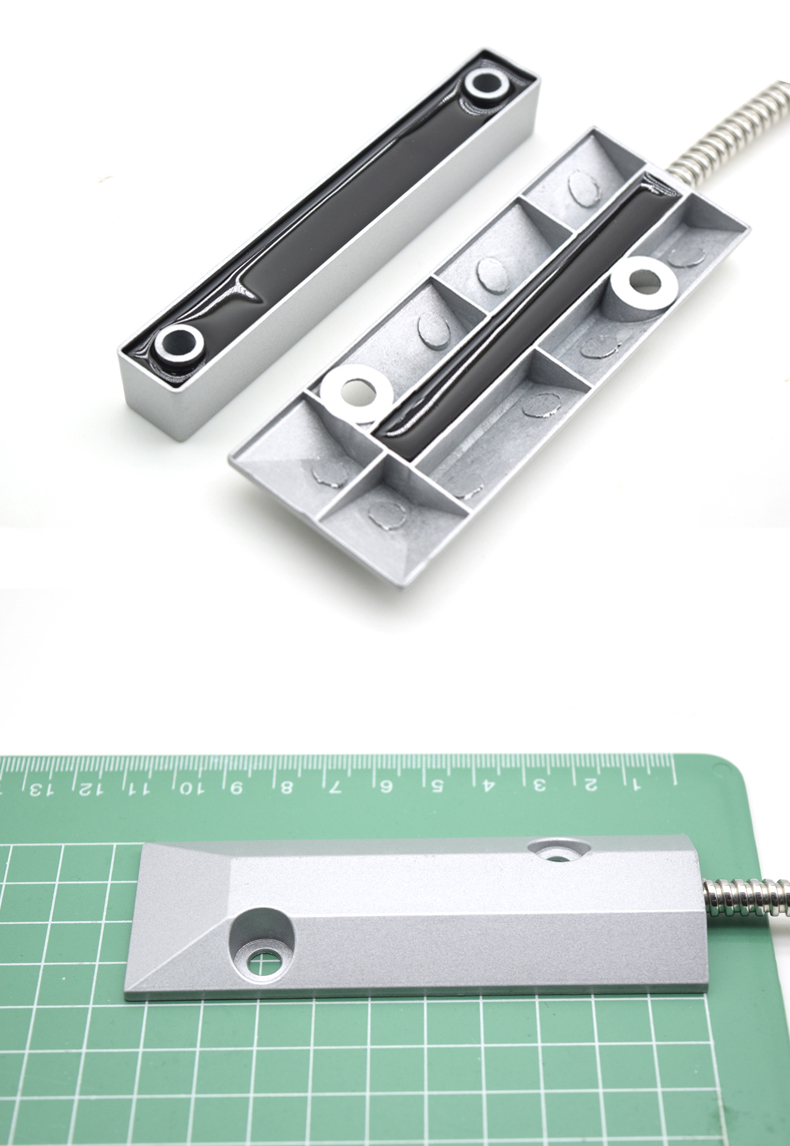

03. Sealed with epoxy resin adhesive, waterproof and durable, the door magnet continuously emits signals even when in water
04. Selected high-quality zinc alloy materials, integrated molding and casting, effectively resisting hot and cold environments

project	unit	NO Type	NC Type	NC/NO Type
model	--	BL-MC-ZN09-NO	BL-MC-ZN09	BL-MC-ZN09-T

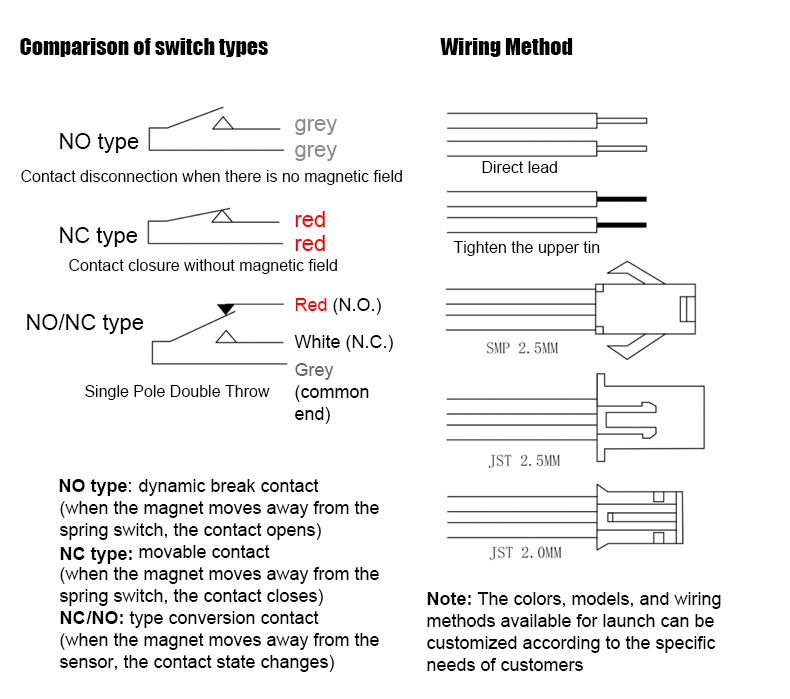

Switching mode	--	Normally open	Normally closed	convert
Contact resistance value (RC)	mΩ	100max	100max	100max
Disconnect value (D0)	AT	4min	4min	4min
Contact time withstand voltage	VDC	250min	150min	150min
insulation resistance	Ω	1010min	109min	109min
Static electricity capacity between contacts	pF	0.3max	1.5max	1.5max
contact rating	VA	10	3	3
Maximum switching voltage	V·AC/DC	200	30	30
Maximum switching current	V·DC	0.5	0.2	0.2
Maximum energized current	A	1	0.5	0.5
Action time	ms	0.4max	1.0max	1.0max
Jump time	ms	0.3max	1.5max	1.5max
Release time	ms	0.05max	0.05max	0.05max
resonant frequency	Hz	5000±400	6000±400	6000±400
Maximum drive frequency	Hz	500	200	200
Operating temperature range	℃	-40~80	-40~80	-40~80
Installation method	--	Surface mounted	Surface mounted	Surface mounted
Shell material	--	Zinc alloy	Zinc alloy	Zinc alloy
Shell color	--	Silver Grey	Silver Grey	Silver Grey
Wire specifications	mm	1007 22#	1007 22#	1007 22#
Wire length	mm	300	300	300
Wire color	--	grey	red	Grey/red/white
Action distance	mm	≥45mm	≥35mm	≥25mm
Product weight	right	151g	151g	151g
packing of products	package	2 pairs/pack	2 pairs/pack	2 pairs/pack
