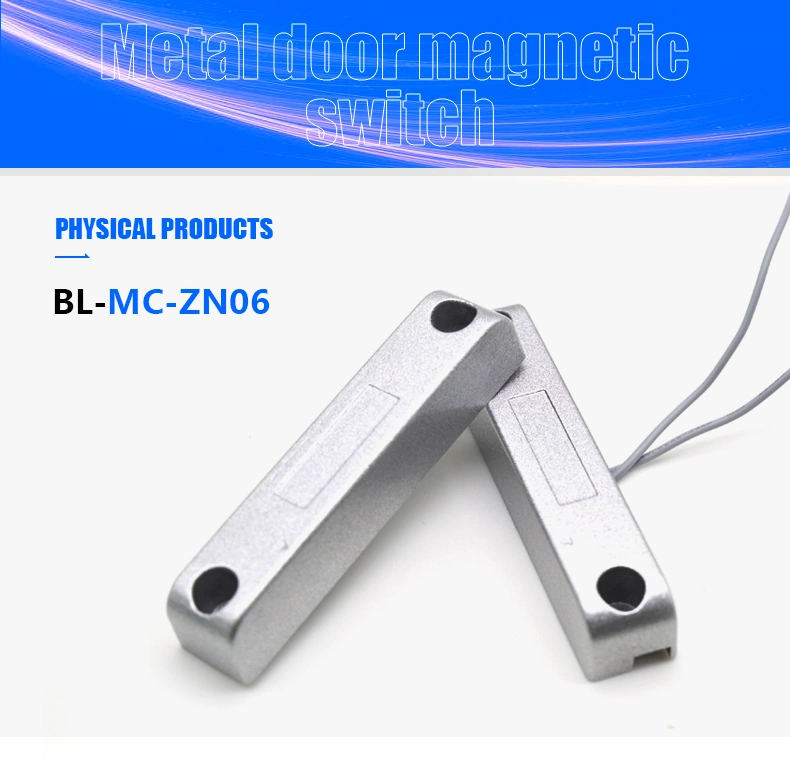

BL-MC-ZN06 Magnetic switch signal quantity door status sensor switch metal material cabinet magnetic door sensor

BL-MC-ZN06

minimum order

1 piece

Quantity:

Contact Now

add to cart

Series:Proximxty Sensor
Features:No standby power consumption
Mounting Type:Non contact working mode
Description:Metal proximity switch, Inductive Sensor
Model Number:BL-MC-ZN06
Type:Magnetic Proximity Sensor
Place of Origin:Guangdong, China
Brand Name:Beelee
Use:Position Sensor
Theory:Inductance Sensor
Output:Analog SENSOR
Contact resistance value (RC):100max mΩ
Disconnect value (D0):4min AT
Contact time withstand voltage:150~250min
Static electricity capacity:0.3~1.5max
contact rating:3~10 VA
Max switching voltage:30~200 VAC/DC
Max switching current:0.2~0.5 VDC
energized current:0.5~1 A
Operating temperature range:-40℃~80℃
Installation method:Surface mounted

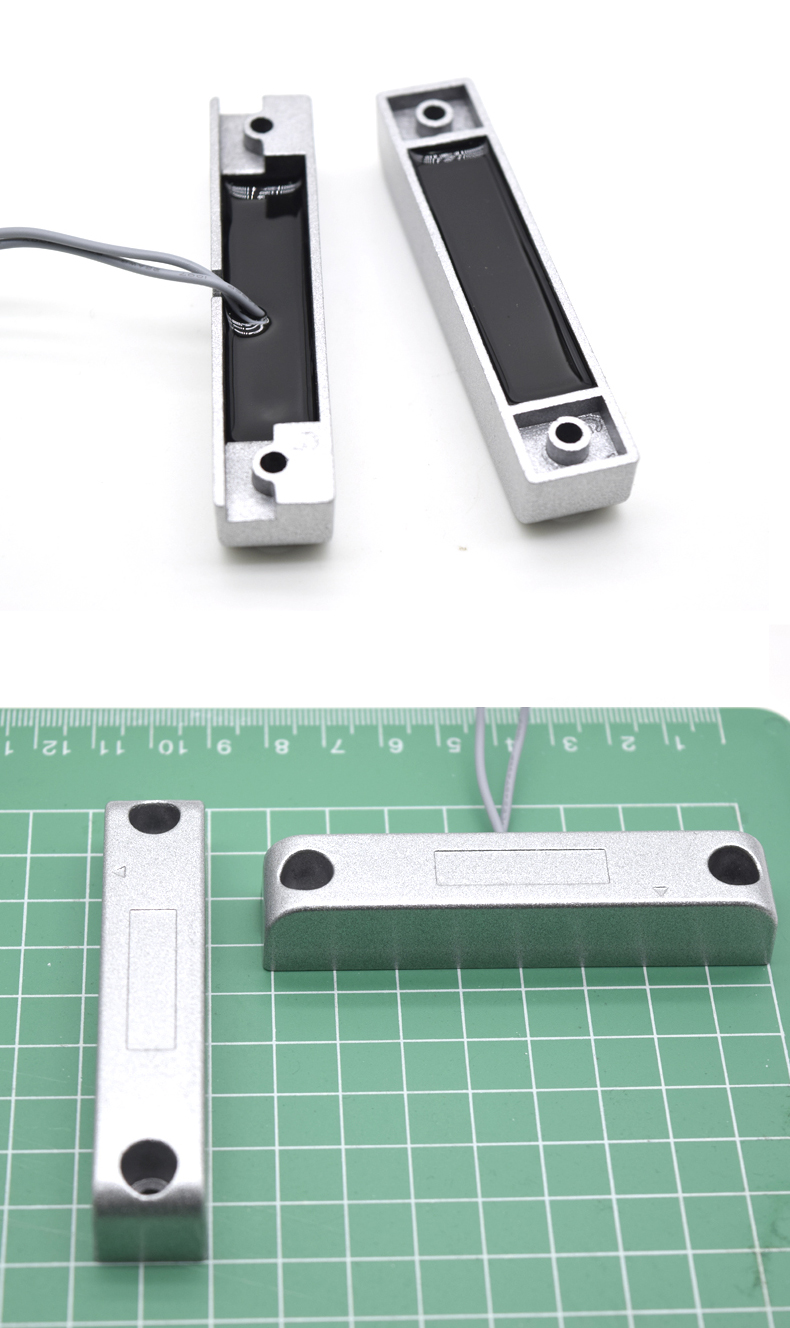

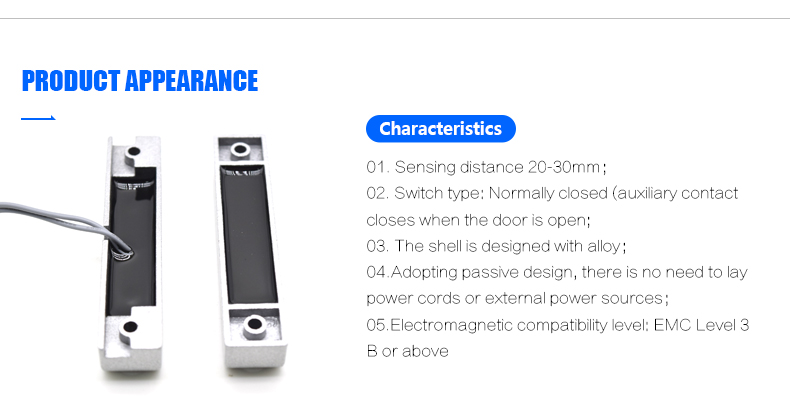

01.Made of alloy, simple and lightweight, durable, wear-resistant, and not easy to rust;
02.The surface is silver gray electroplated, delicate and compact, easy to install, and has strong concealment;
03.Sealed with epoxy resin adhesive, waterproof and durable, the door magnet continuously emits signals even when in water;
04.Selected high-quality zinc alloy materials, integrated molding and casting, effectively resisting hot and cold environments;
05.The factory measurement range of the door magnet is 20MM~45MM, effectively preventing false alarms and making the detection more accurate;

project	unit	NO Type	NC Type	NC/NO Type
model	--	BL-MC-ZN06-NO	BL-MC-ZN06	BL-MC-ZN06-T

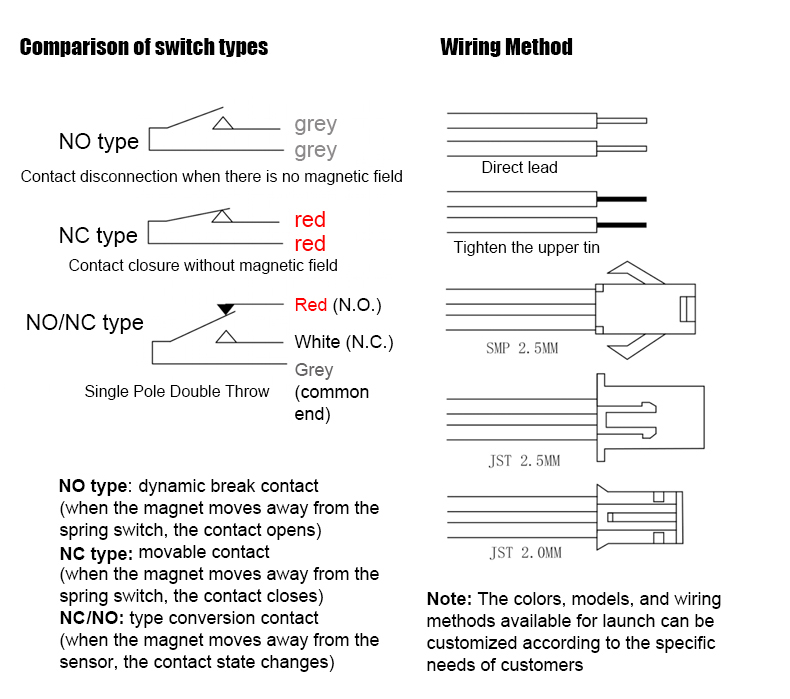

Switching mode	--	Normally open	Normally closed	convert
Contact resistance value (RC)	mΩ	100max	100max	100max
Disconnect value (D0)	AT	4min	4min	4min
Contact time withstand voltage	VDC	250min	150min	150min
insulation resistance	Ω	1010min	109min	109min
Static electricity capacity between contacts	pF	0.3max	1.5max	1.5max
contact rating	VA	10	3	3
Maximum switching voltage	V·AC/DC	200	30	30
Maximum switching current	V·DC	0.5	0.2	0.2
Maximum energized current	A	1	0.5	0.5
Action time	ms	0.4max	1.0max	1.0max
Jump time	ms	0.3max	1.5max	1.5max
Release time	ms	0.05max	0.05max	0.05max
resonant frequency	Hz	5000±400	6000±400	6000±400
Maximum drive frequency	Hz	500	200	200
Operating temperature range	℃	-40~80	-40~80	-40~80
Installation method	--	Surface mounted	Surface mounted	Surface mounted
Shell material	--	Zinc alloy	Zinc alloy	Zinc alloy
Shell color	--	Silver Grey	Silver Grey	Silver Grey
Wire specifications	mm	1007 22#	1007 22#	1007 22#
Wire length	mm	300	300	300
Wire color	--	grey	red	Grey/red/white
Action distance	mm	≥40mm	≥25mm	≥25mm
Product weight	right	90.5g	90.5g	91g
packing of products	package	5 pairs/pack	5 pairs/pack	5 pairs/pack
