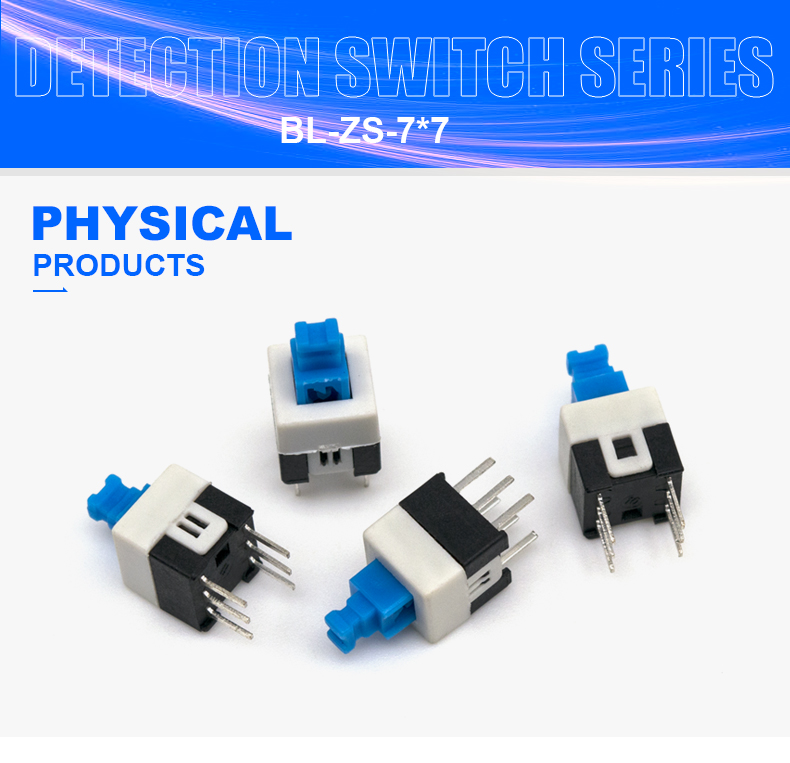

Beelee 7*7 plastic tact push button switch micro push button switch

• Certification:RoHS
• Whether the smart:NO
• Place of Origin:Guangdong, China
• Brand Name:Beelee
• Model Number:BL-ZS-7x7
• Max. Current:0.1A
• Max. Voltage:12V
• LED:NO
• Contact resistance:200mΩ MAX
• Insulation impedance:100MΩ MIN
• OPERATING FORCE:250gf±50gf
• DIELECTRIC STRENGTH:AC250V(50HZ)Min
• Temperature range:-40℃~+70℃
• Service life:5000 Cycles

01.Self-locking switch is a common push-button switch. When the switch button is pressed for the first time, the switch is turned on and held, that is, self-locking; when the switch button is pressed for the second time, the switch is turned off and the switch button pops up at the same time.

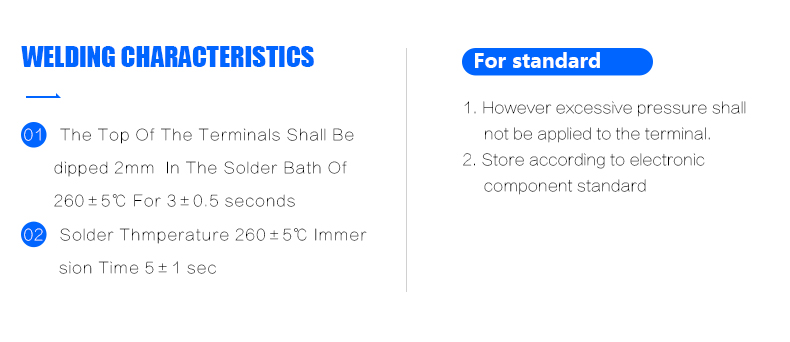

02.The Top Of The Terminals Shall Bedipped 2mm In The Solder Bath Of 260±5°C For 3±0.5 Seconds

03.Solder Thmperature 260±5°C Immersion Time 5±1 Sec Immersion Depth Up To The Srface Of The Board Thickness Of Printed Wiring Board 1.6mm Dimensions Of Component Holes In The Printed Wiring Board Shall Being Accordance With Those Specified In This Specefied In This Speceication

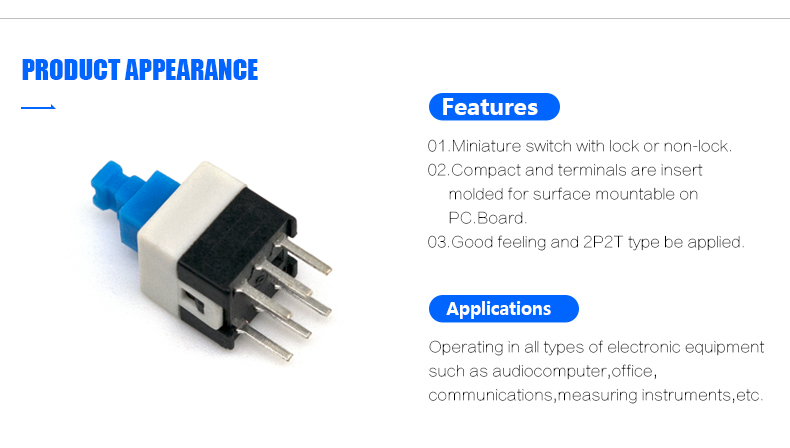

04.Operating in all types of electronic equipment such as audiocomputer,office, communications,measuring instruments,etc

1.Q:Can I get sample from you?

A:Yes,we can provide the free samples for your testing,please contact us for free and tell us which product you need.

2.Q:Do you accept customization?

A:Yes,customization is acceptable,please contact our sales staffs for consult.

3.Q:Can you provide help for technical issues?

A:Yes,we have more than 15 years of research and development in the electronic switch industry. If you need technical help in the purchase process, please feel free to contact us
