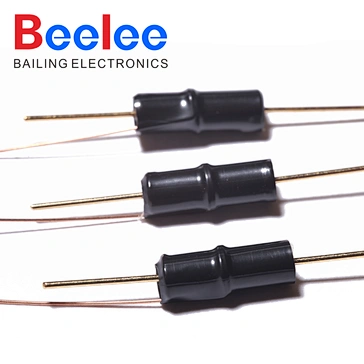

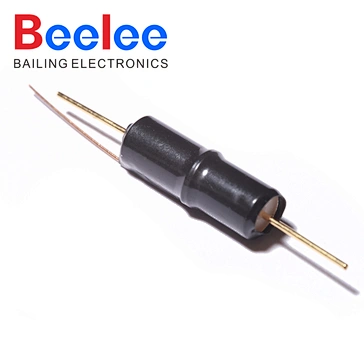

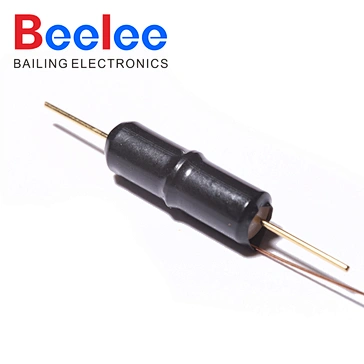

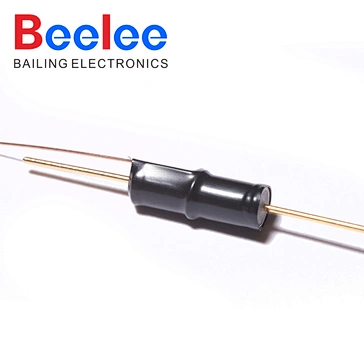

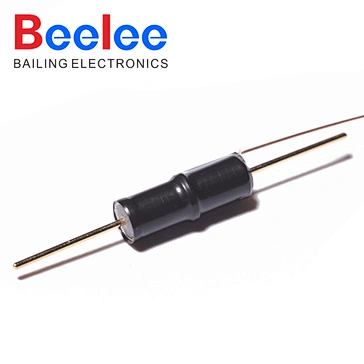

SW200DD 3.4*10.5MM TWO-way Ball type roll ball tilt sensor switch
SW200DD
Quantity:

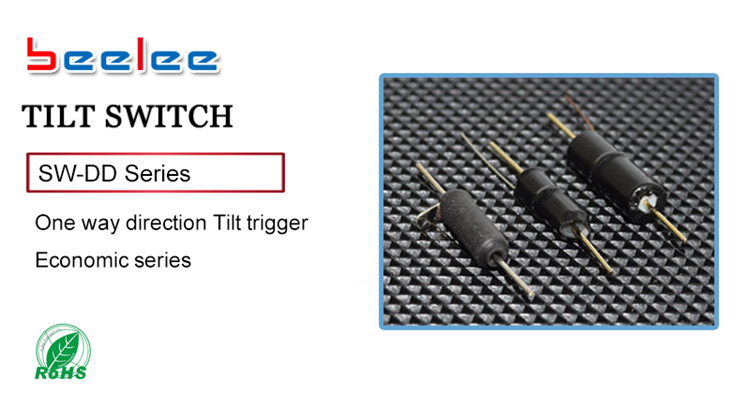

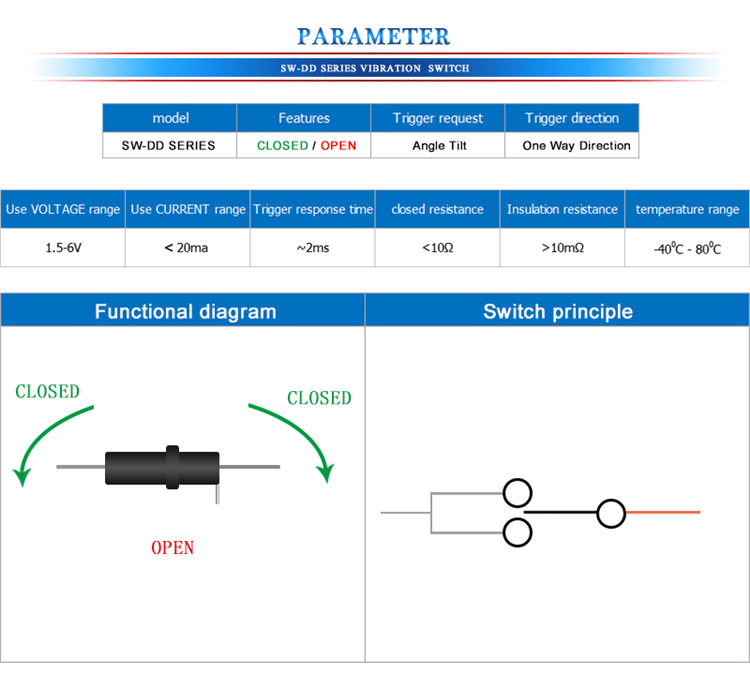

- SW-200 is ball type tilt ensitive trigger switch.When the product is inclined to the conductive end (silver pin end A) and the inclination angle is greater than 15 degrees, it is in an open-circuit OFF state. When the horizontal state of the product changes, the trigger end (gold-plated pin end C) is lower than the horizontal and the inclination angle is greater When the angle is 15 degrees, the closed circuit is ON.
- Place of Origin:CN;GUA
- Brand Name:beelee
- Model Number:SW200DD
- Max. Current:>20ma
- Max. Voltage:>6v
