BL-RD-YS312 pir 센서
BL-RD-YS312
최소 주문
1 조각
수량:
- Series:Pyroelectric Infrared Sensor
- Features:Digital signal processing, Digital signal processing
- Mounting Type:Digital signal output
- Description:Intelligent Pyroelectric Infrared Motion Sensor

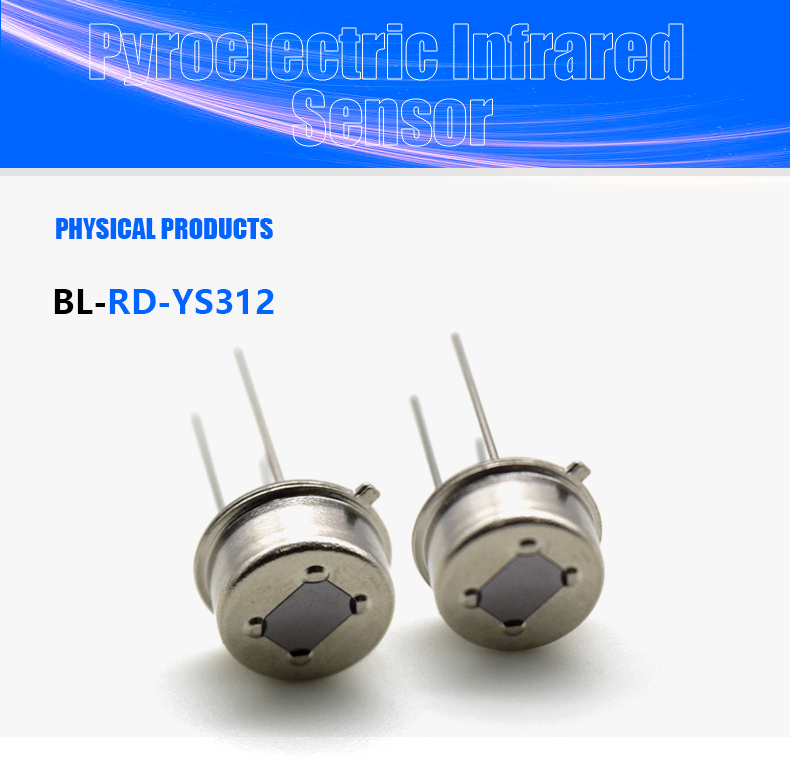

- Model Number:BL-RD-YS312
- Place of Origin:Guangdong, China
- Brand Name:GBeelee
- Usage:smart toys,automatic light switch,Sensor door
- Theory:Infrared detection
- Output:Analog signal
- Brand:Pyroelectric Infrared Sensor
- Output Type:Analog signal
- Operating Temperature:-30~+70℃
- Current - Supply (Max):5~20uA
- Frequency:0.44~7Hz
- Output Configuration:Output Balance<10%
- Voltage Rating:2.2-5.5V
- Humidity Range:-40~80℃
- Size:Contact Us

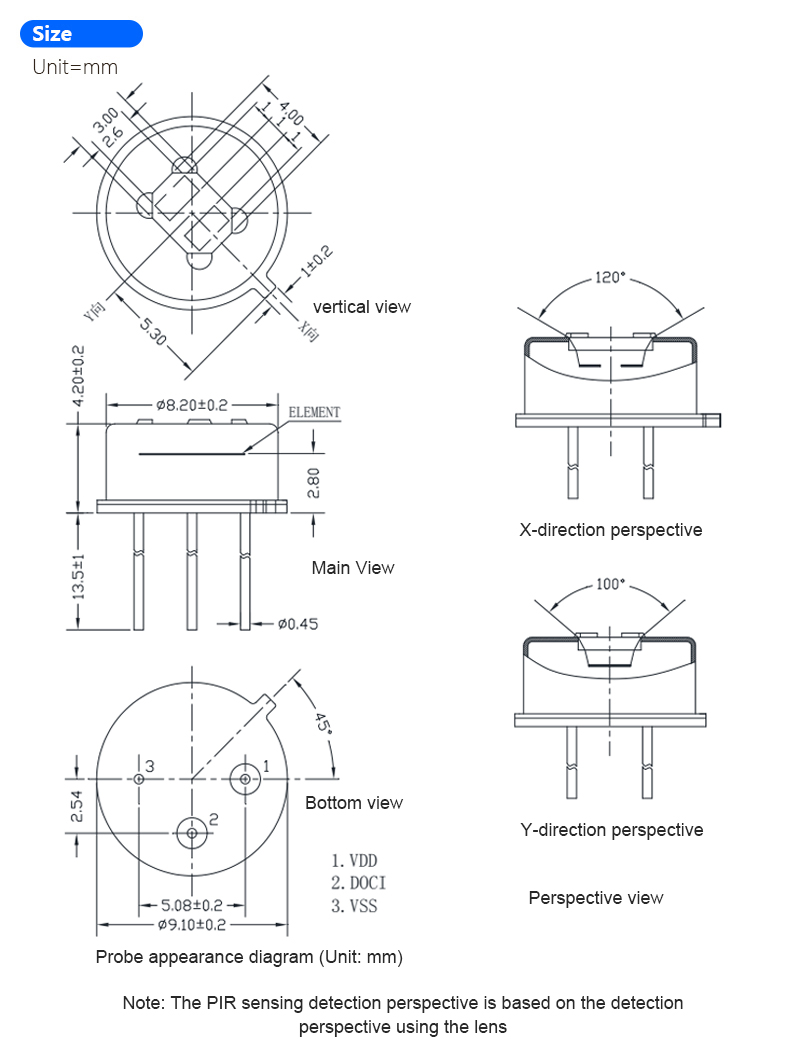

- Size / Dimension:Window Size: 3*4mm
- Resolution:Contact Us
- Interface:Contact Us
- Technology:Contact Us
- Sensing Range:120° (horizontal direction)
- Current - Output (Max):Supply Voltage:2.2-3.7V
- Bandwidth:Contact Us
- Function:Contact Us
- Acceleration Range:Contact Us
- Sensitivity (LSB/g):Contact Us
- Sensitivity (mV/g):Contact Us
- Sensitivity (LSB/(°/s)):Contact Us
- Sensitivity (mV/°/s):Contact Us
- Sensing Distance:10M (lens SB-F-02), 10M (lens SB-F-02)
- Voltage - Max:5.5V
- Voltage - Input:3~15V
- Application:smart toys,automatic light switch,Sensor door
- PROD Model:BL-RD-YS312
- Window Size:3*4mm
- Output Signal:High and low level output
- Sensing Angle:120° (horizontal direction)
- Working Voltage:2.2-5.5V
- Static Power Consumption:<20uA
- Current into any pin:-100~100 mA
- Operating Temp:-30~70 ℃
- Storage Temp:-40~80 ℃

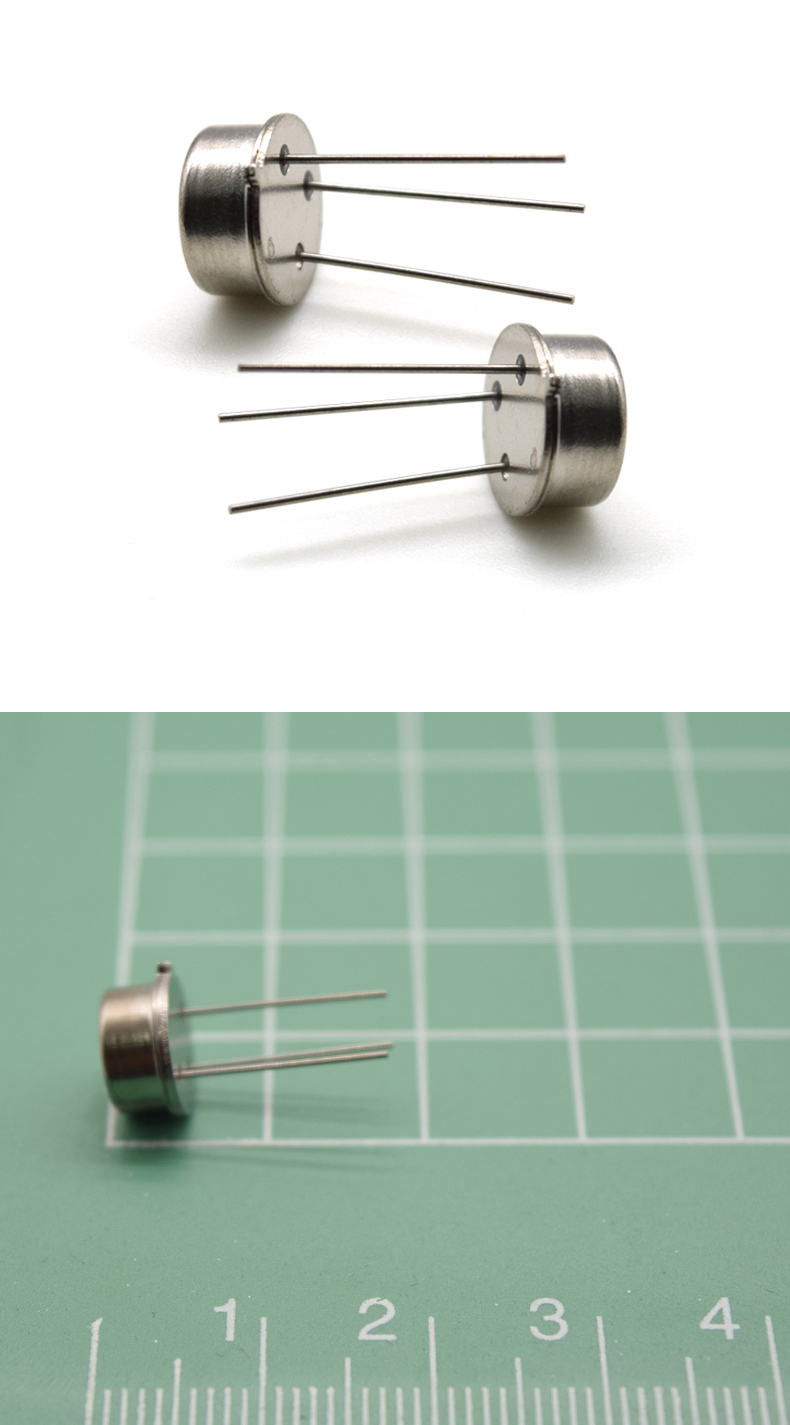

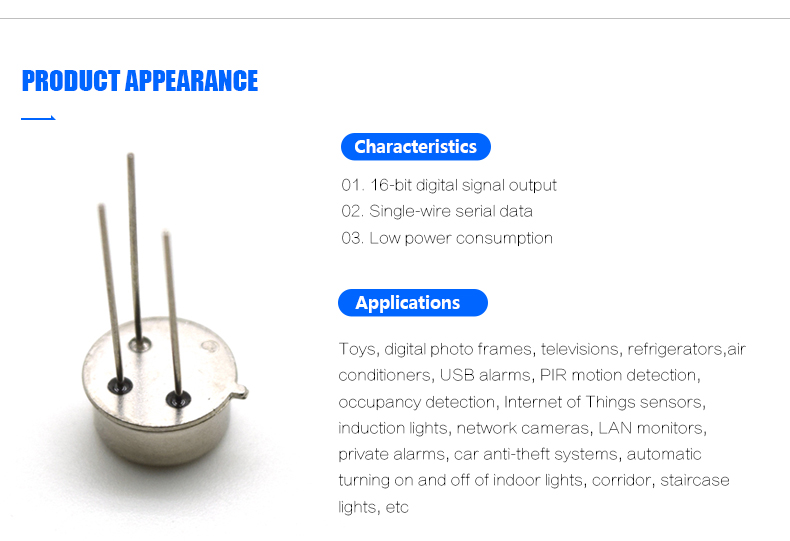

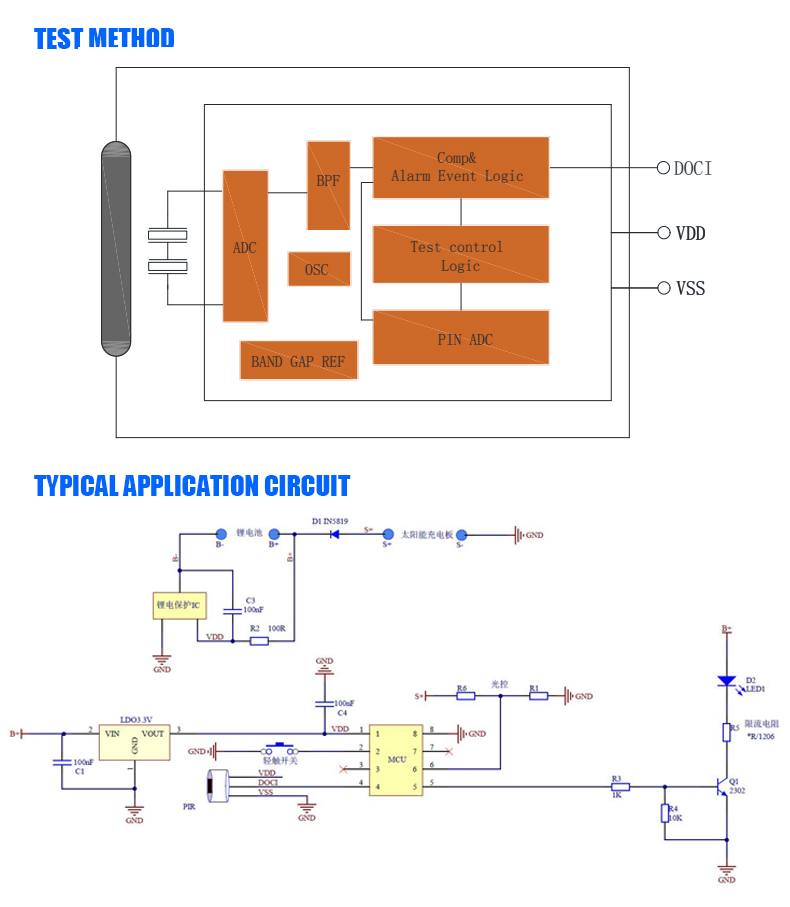

BL-RD-YS312 is a pyroelectric infrared sensor that integrates AD chip and human body detection sensor in an electromagnetic shield. The human body detection sensor transmits the sensed human body movement signal to the AD chip, which outputs the 16-bit digital signal through acquisition and filtering, and realizes related functions through the single chip microcomputer of the peripheral circuit.
1.Absolute Maximum Ratings Electrical characteristics(beyond those listed below may cause permanent damage to the device. Exposure to absolute maximum ratings may affect the device reliability. ) | ||||||||||||
Parameter | Symbol | Min | Max | Unit | Remarks | |||||||
Operating Temp | TST | -30 | 70 | ℃ | ||||||||
Current into any pin | Into | -100 | 100 | mA | ||||||||
Storage Temp | TST | -40 | 80 | ℃ | ||||||||
2.Operating Conditions (T=25°C, Vdd=3V，unless stated otherwise) | ||||||||||||
Parameter | Symbol | Min | Type | Max | Unit | Remarks | ||||||
Regular voltage | VDD | 2.2 | 3.3 | 5.5 | V | |||||||
Operation current | IDD | 5 | 10 | 20 | μA | |||||||
ADC Resolution | 16 | Bits | ||||||||||
Detective Wavelength | λ | 5 | 14 | um | ||||||||
LPF cutoff frequency | 7 | Hz | ||||||||||
HPF cutoff frequency | 0.44 | Hz | ||||||||||
