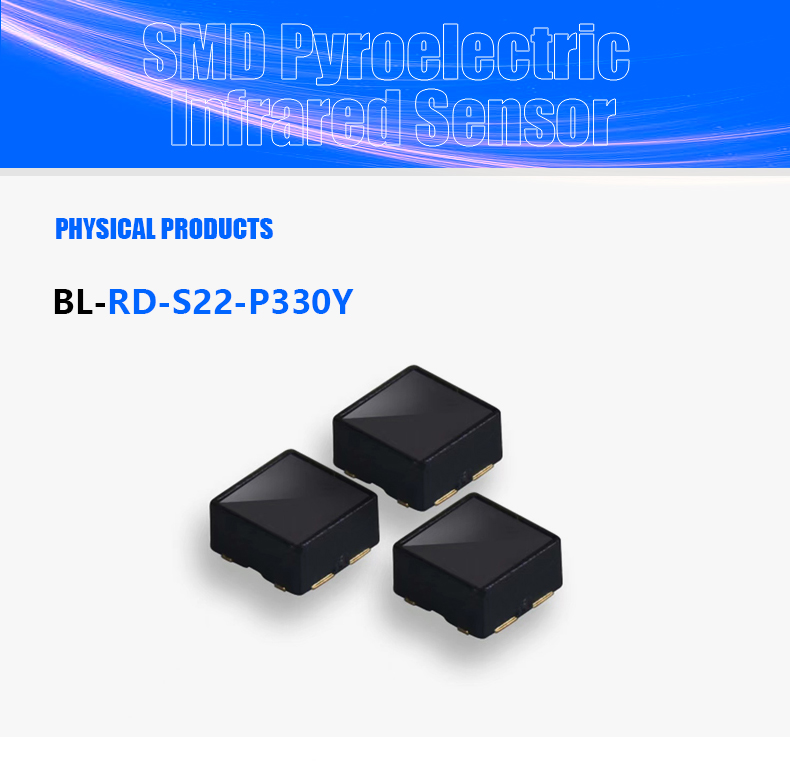

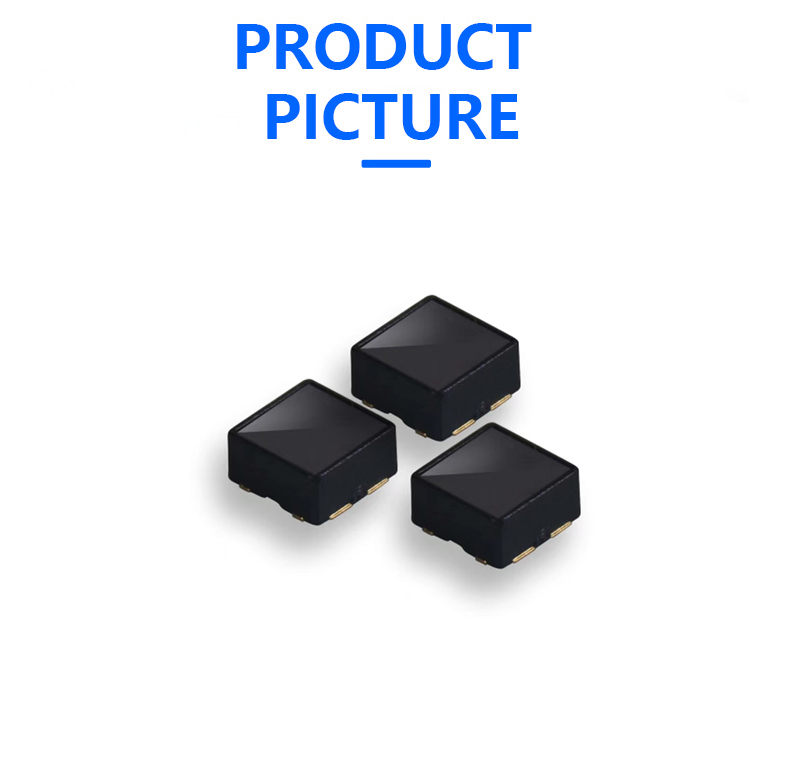

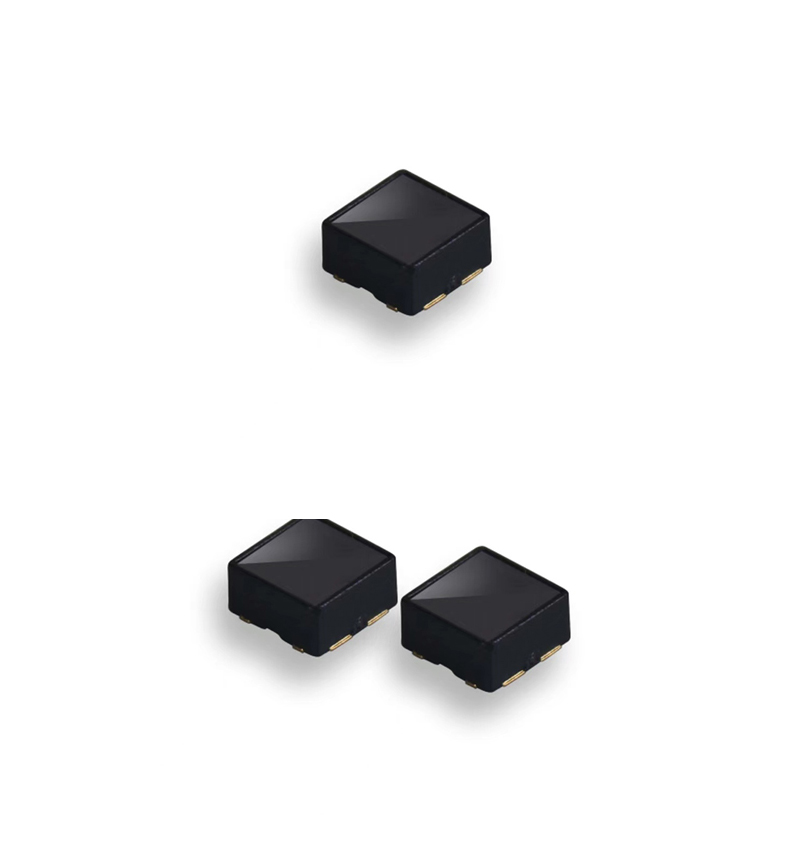

BL-RD-S22-P330Y SMD焦電センサー
BL-RD-S22-P330Y
最小注文
1 ピース
数量:
- Series:Pyroelectric Infrared Sensor
- Features:Digital signal processing, low noise
- Mounting Type:Digital signal output
- Description:Intelligent Pyroelectric Infrared Motion Sensor
- Model Number:BL-RD-S22-P330Y
- Place of Origin:Guangdong, China
- Brand Name:GBeelee
- Usage:smart toys,automatic light switch,Sensor door
- Theory:Infrared detection
- Output:Analog signal
- Brand:Pyroelectric Infrared Sensor
- Voltage - Supply:2.2-5.5V
- Output Type:Analog signal
- Operating Temperature:-20~+70℃
- Current - Supply (Max):<15uA
- Output Configuration:Output Balance<10%
- Voltage Rating:1.6-5.5V
- Humidity Range:-40~80 degree
- Size / Dimension:Window Size: 4*4mm
- Sensing Range:110° (horizontal direction)
- Current - Output (Max):Supply Voltage3-15V
- Sensing Distance:8M (lens SB-SF-01), 8M (lens SB-SF-01)
- Voltage - Max:2.2-5V
- Sensing Light:Infrared ray
- Voltage - Input:<15uA
- Application:smart toys,automatic light switch,Sensor door
- PROD Model:BL-RD-S22-P330Y
- Working Temp:-20~70 ℃

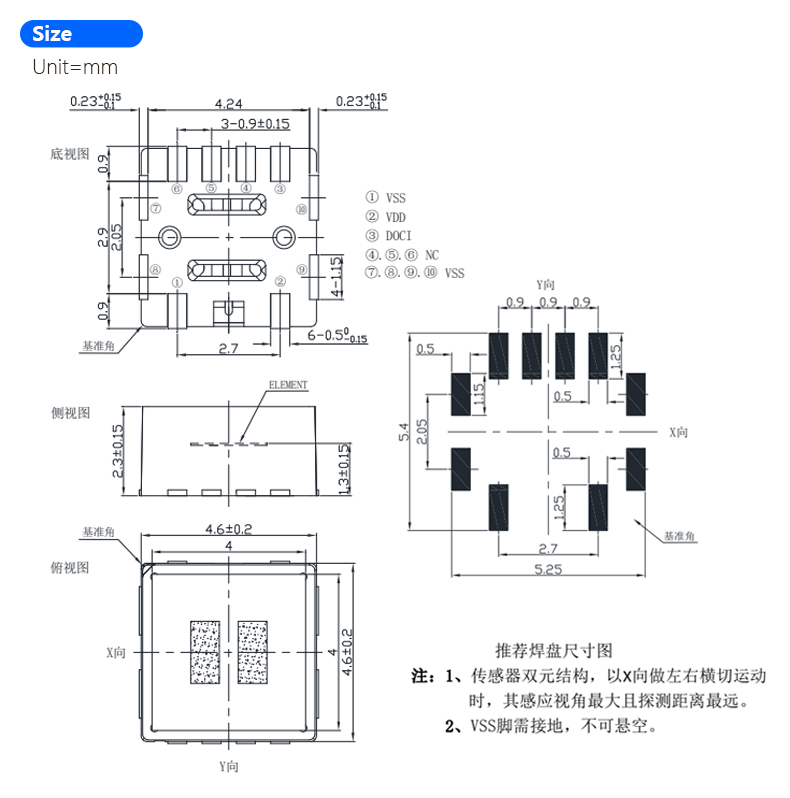

- Window Size:4*4mm
- View of Angle:X=110°;Y=90°
- Storage Temp:-30~80 ℃
- Spectral Response:5~14μm
- Sensing Angle:110° (horizontal direction)
- Working Voltage:2.2-5.5V
- Static Power Consumption:<15uA

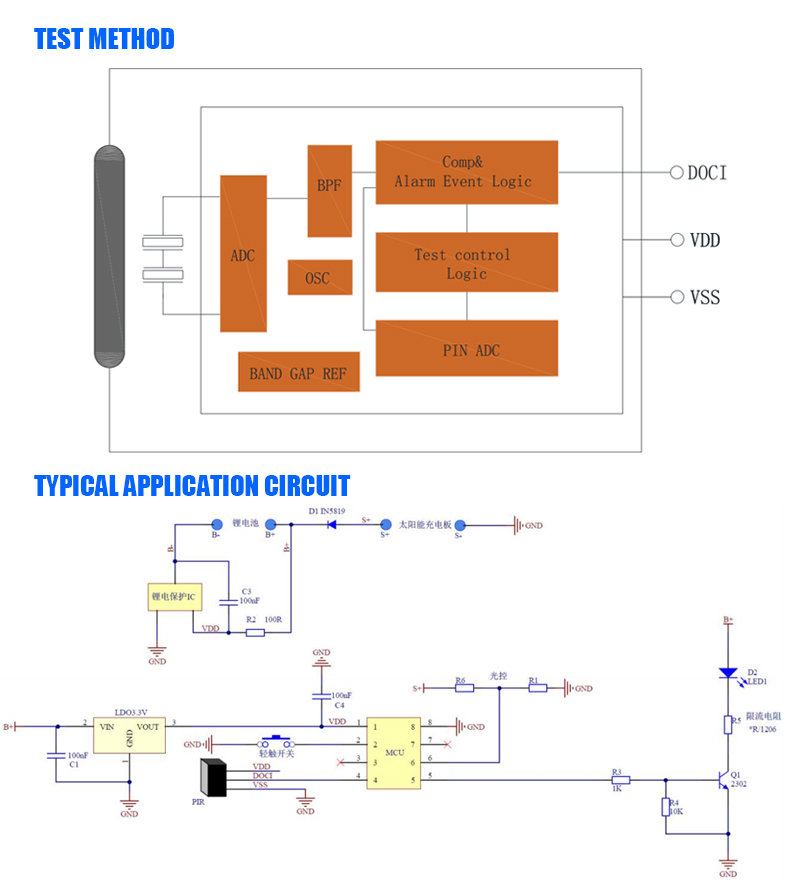

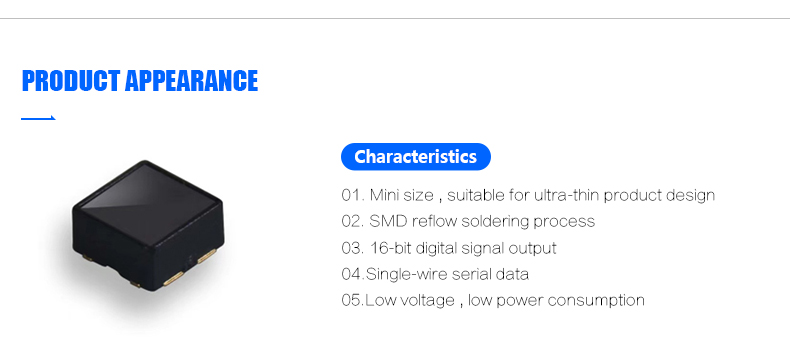

BL-RD-S22-P330Y is a type of PIR sensor which integrates AD chip and sensitive element in a hermetically sealed package.The sensitive element transmits the sensed human body movement signal to the AD chip, which outputs 16-bit digital signals through collection, filtering, etc., and realizes related functions through the peripheral circuit MCU.
Parameter | Sym | Min | Max | Unit | Remark |
Working Temp | TOT | -20 | 70 | ℃ | |
View of Angle | θ | X=110° | Y=90° | ° | Theoretical Angle |
Storage Temp | TST | -30 | 80 | ℃ | |
Spectral Response | λ | 5 | 14 | μm |
