日本セラミック焦電型パッシブ赤外線センサー BL-RD-NS412 バランス差動照明制御セキュリティおもちゃ PIR センサー

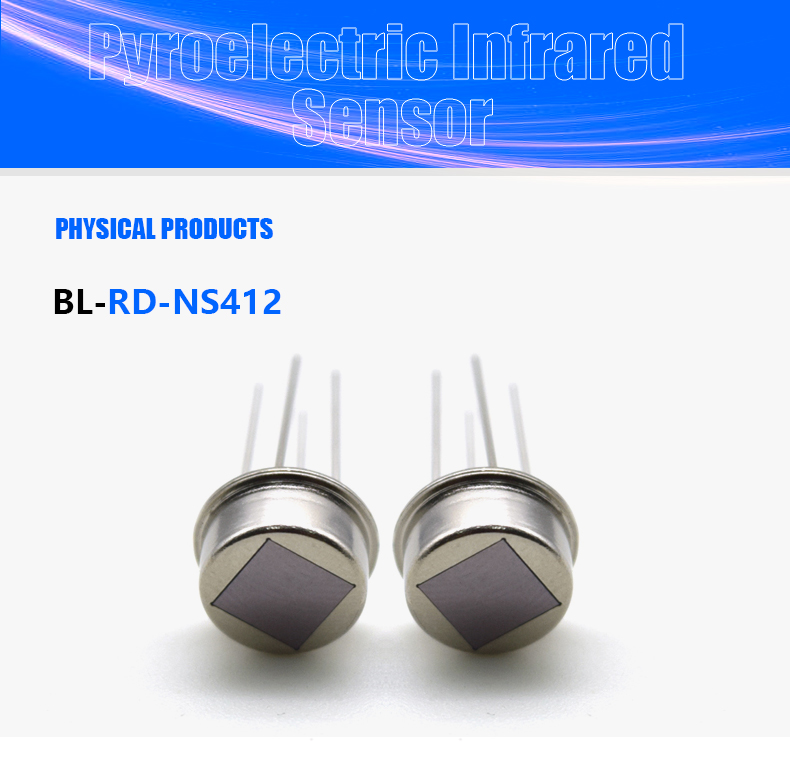

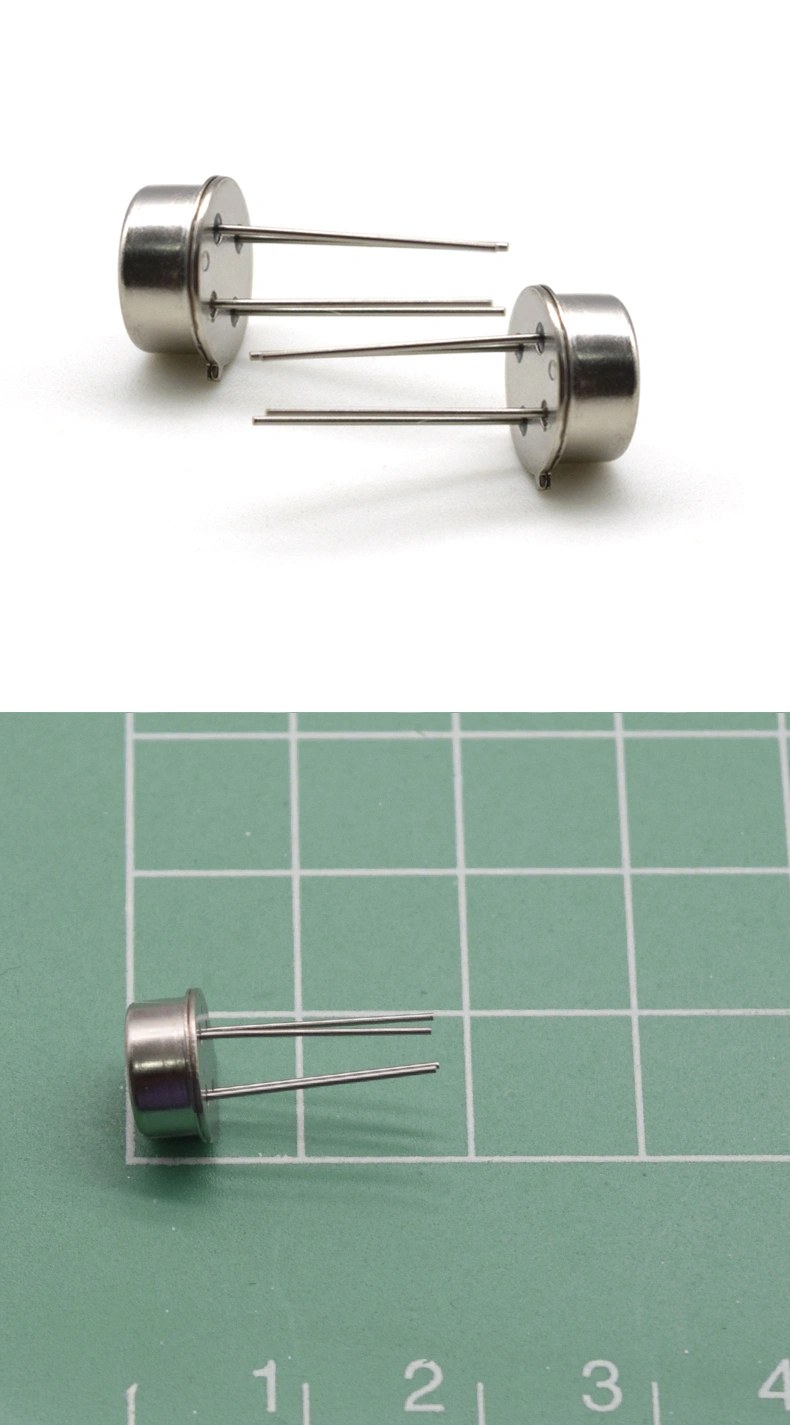

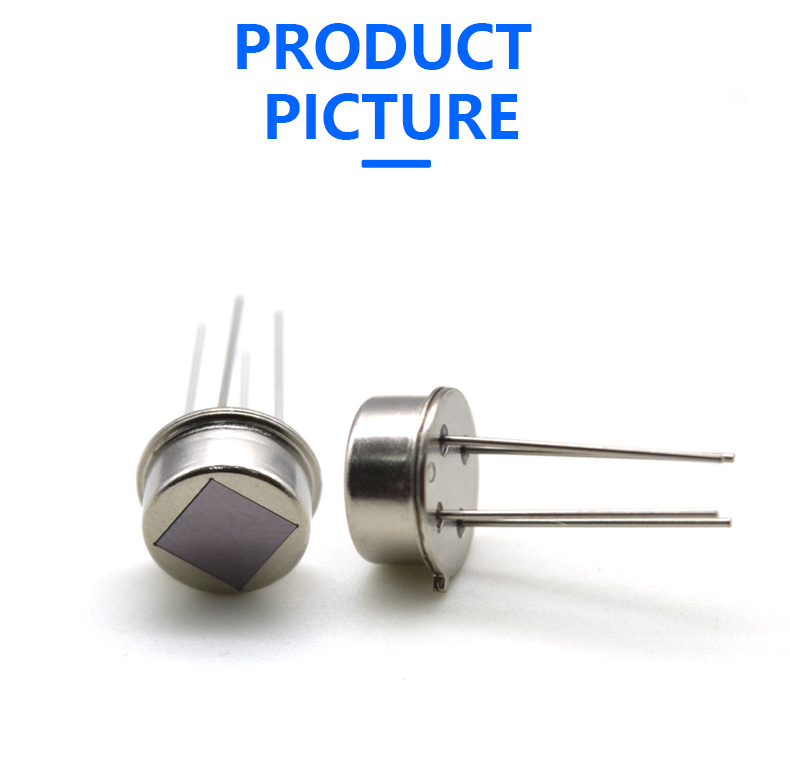

BL-RD-NS412
最小注文
1 ピース
数量:
- Series:Pyroelectric Infrared Sensor
- Features:Digital signal processing, Digital signal processing
- Mounting Type:Digital signal output
- Description:Intelligent Pyroelectric Infrared Motion Sensor
- Model Number:BL-RD-NS412
- Place of Origin:Guangdong, China
- Brand Name:GBeelee
- Usage:smart toys,automatic light switch,Sensor door
- Theory:Infrared detection
- Output:Analog signal
- Brand:Pyroelectric Infrared Sensor
- Output Type:Analog signal
- Operating Temperature:-30~+70℃
- Current - Supply (Max):<12uA
- Output Configuration:Output Balance<10%
- Voltage Rating:2.2-3.7V
- Humidity Range:-40~80℃
- Size:Contact Us

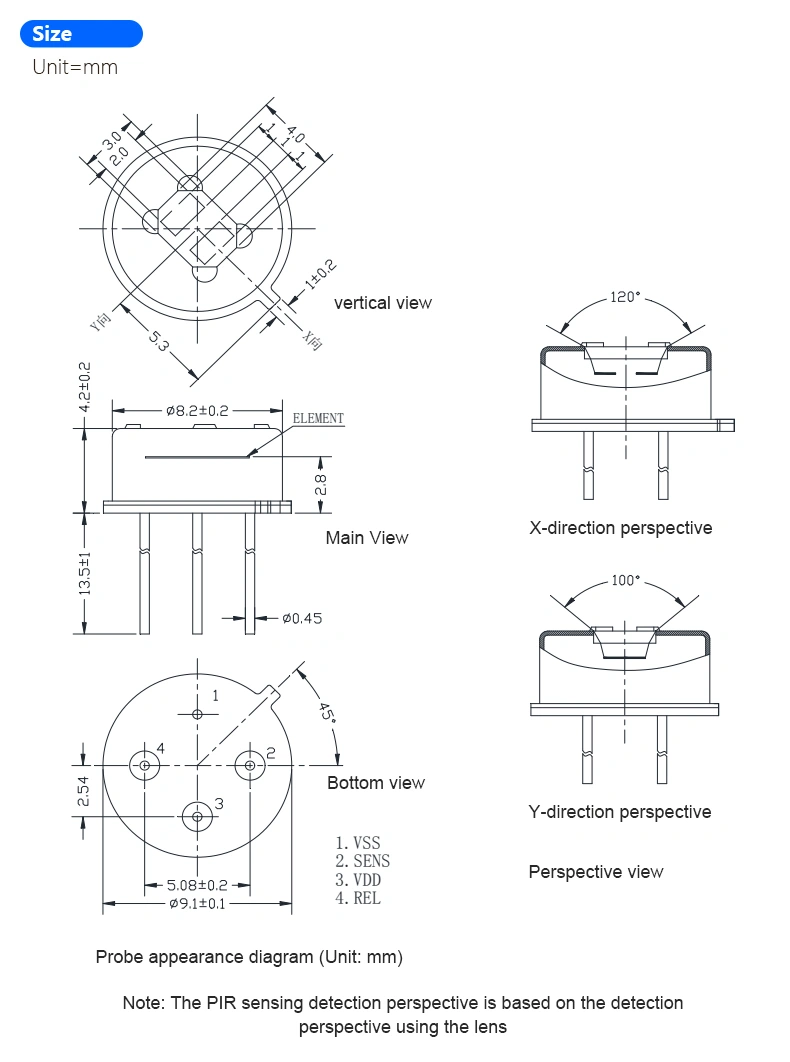

- Size / Dimension:Window Size: 3*4mm
- Resolution:Contact Us
- Interface:Contact Us
- Technology:Contact Us
- Sensing Range:120° (horizontal direction)
- Current - Output (Max):Supply Voltage:2.2-3.7V
- Bandwidth:Contact Us
- Function:Contact Us
- Acceleration Range:Contact Us
- Sensitivity (LSB/g):Contact Us
- Sensitivity (mV/g):Contact Us
- Sensitivity (LSB/(°/s)):Contact Us
- Sensitivity (mV/°/s):Contact Us
- Sensing Distance:10M (lens SB-F-02), 10M (lens SB-F-02)
- Voltage - Max:3.7V
- Sensing Light:5~14um
- Voltage - Input:3~15V
- Application:smart toys,automatic light switch,Sensor door
- PROD Model:BL-RD-NS412
- Window Size:3*4mm
- Output Signal:High and low level output
- Sensing Angle:120° (horizontal direction)
- Working Voltage:2.2-3.7V
- Static Power Consumption:<11uA
- Output Balance:<10%
- Operating Temp:-30~70 ℃
- Storage Temp:-40~80 ℃

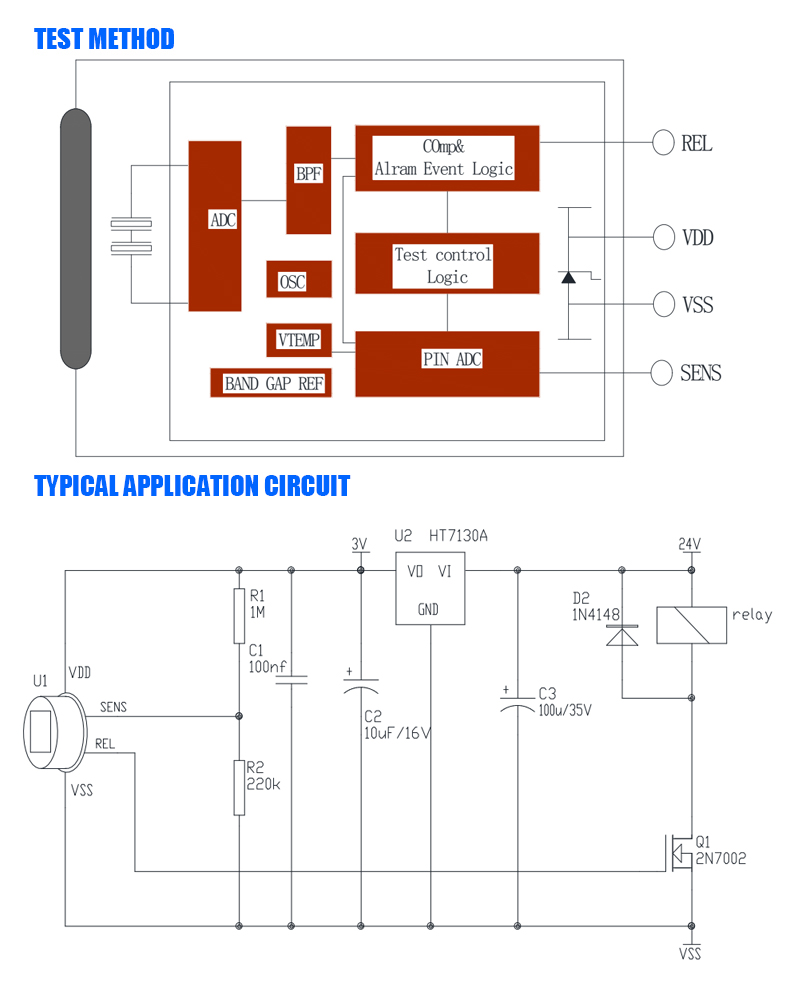

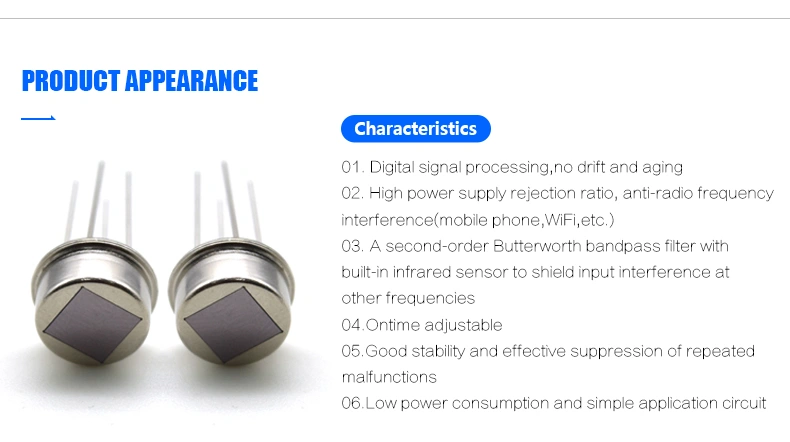

BL-RD-NS412 is a type of PIR sensor which integrates a digital control circuit and a human detection sensor in an electromagenetic shielding housing.The human body detection sensor couples the sensed human movement signal to the digital intelligent integrated circuit chip through a very high impedance differential input circuit.The digital intelligent integrated circuit converts the signal into digital signal, and when the PIR signal exceeds the selected digital threshold, there will be a delayed REL level output. The time parameter is set through the resistance to control the continuous working delay time of the electrical appliance. All the signal processing is done on one chip.
1.Absolute Maximum Ratings Electrical characteristics(beyond those listed below may cause permanent damage to the device. Exposure to absolute maximum ratings may affect the device reliability. | ||||||||||||
Parameter | Symbol | Min | Max | Unit | Remarks | |||||||
Operating Temp | TST | -30 | 70 | ℃ | ||||||||
Current into any pin | Into | -100 | 100 | mA | ||||||||
Storage Temp | TST | -40 | 80 | ℃ | ||||||||
2.Operating Conditions (T=25°C, Vdd=3V，unless stated otherwise) | ||||||||||||
Parameter | Symbol | Min | Type | Max | Unit | Remarks | ||||||
Regular voltage | VDD | 2.2 | 3 | 3.7 | V | |||||||
Supply current | IDD | 9 | 9.5 | 11 | μA | |||||||
Sensitivity threshold | VSENS | 90 | μV | |||||||||
Detective Wavelength | λ | 5 | 14 | um | ||||||||
Outputs REL | ||||||||||||
Output current low | IOL | 10 | mA | VOL<1V | ||||||||
Output current high | IOH | -10 | mA | VOH>(VDD-1V) | ||||||||
Low REL output locking time | TOL | 2 | s | Non-adjustable | ||||||||
High REL output delay time | TOH | 2 | 3600 | s | ||||||||
Inputs ONTIME | ||||||||||||
Input voltage range | 0 | VDD1/2 | V | Adjustable between 0V and VDD/2 | ||||||||
Input leakage current | -1 | 1 | μA | |||||||||
Oscillator and Filter | ||||||||||||
LPF cutoff frequency | 7 | Hz | ||||||||||
HPF cutoff frequency | 0.44 | Hz | ||||||||||
On chip oscillator frequency | FCLK | 64 | kHz | |||||||||
