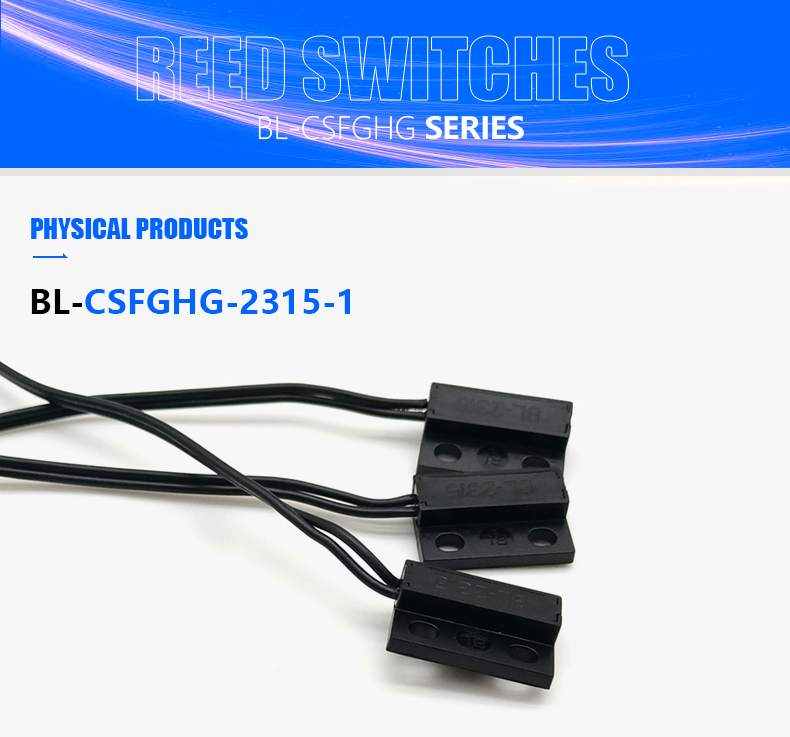

BL-CSFGHG-2315 No/Nc Kapı Manyetik Sensörü

BL-CSFGHG-2315

Minimum sipariş

1 Parça

Miktar:

Bir iletişim mektubu gönderin

Sepete ekle

Whether the smart:Yes
Place of Origin:Guangdong, China
Brand Name:GBeelee
Model Number:BL-CSFGHG-2315
Max. Current:0.5A
Max. Voltage:200 V.AC/DC
Pull in Value:10-40 AT
Contact Rating:10 W
Max. current:0.5A
Contact resistance:max 150 m ohm
Insulation resistance:min 1*10^10 ohm
min. Withstand voltage:250 V.DC
Max.switching voltage:200 V.AC/DC
Certification:RohS

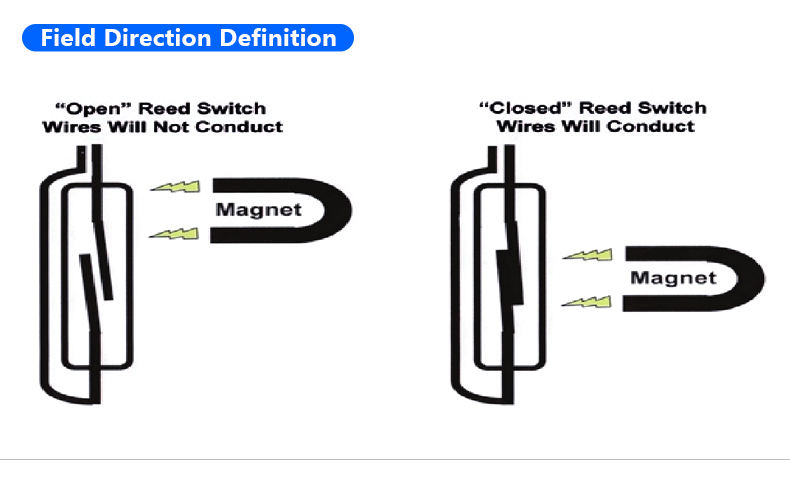

01. Micro changeover dry-reed switch hermetically sealed in a gas- filled envelope. Single-pole, double-throw (SPDT) type, having a normally open and a normally closed contact.

02.The switch may be actuated by an electromagnet, a permanent magnet or a combination of both. The device is intended for use in sensors, relays, pulse counters or similar devices.

Project	specs	unit	Test conditions
Pull in Value	10-40	AT	I=20mA switch is consistent with the coil center (total length of 13mm turns, 5000T coil resistance, 530m ohm), 100AT first, then return to zero, and then measure the AT value. Resistance test: closing value× 1.5 times current.
Release value	5 min	AT
Contact resistance	150 max	m ohm
Insulation resistance	1*10¹⁰min	ohm	Measure after applying voltage DC100V1 for minutes.
Withstand voltage	250 min	V.DC	Within 60 seconds with leakage current below 500uA
Contact Rating	10	W
Max.switching voltage	200	V.AC/DC
Max. current	0.5	A
Max.energizing current	1	A
Operating time	0.6 max	m sec	Control mode: 1, square wave drive, coil frequency 10Hz 2, current 20mA.
Bounce time	0.4 max	m sec
Release Time	0.2 max	m sec
Max.driving cycles	500	Hz
Resonance cycle number	5000±400	Hz
Tensile strength	19	N(Kgf)	Apply the specified tension vertically for 20 seconds and there is no abnormality at the tight part
Operating temperature	-40~+125	℃	Humidity below 70%rh
Storage temperature	5~+35	℃
Thermal Shock	-10~+65	℃	MIL-STD-202G
Welding heart-resistant property	310	℃	Heat for 3 seconds at the place >2.0mm away from the contact part
Soldering tin rate	90	%	310℃,3s
Impact resistance	480	m/s²	MIL-STD-202G
Vibration resistance	10~55	Hz	MIL-STD-202G

Q1:How can I get more information about your product?
A1:Please send the inquiry for us, and then we can send the detail including spec and offer to you.
Q2:Do you accept OEM or ODM?
A2:Yes,But we have quantity requirements.
Q3:What is the payment way of your company?
A4:100% T/T in advance before shipping,(We can accept payment such as T/T, Paypal,Western Union,Alibaba trade assurance,Etc. )
Q4:What is the shipping way?
A5: Usually by air (DHL,UPS,TNT, FedEx etc).
Q5:How long for manufacturing once we place order?
A7: I0000pcs within 5-10 days.
Q6:How long for samples order?
A7: Usually within 24 hours.
