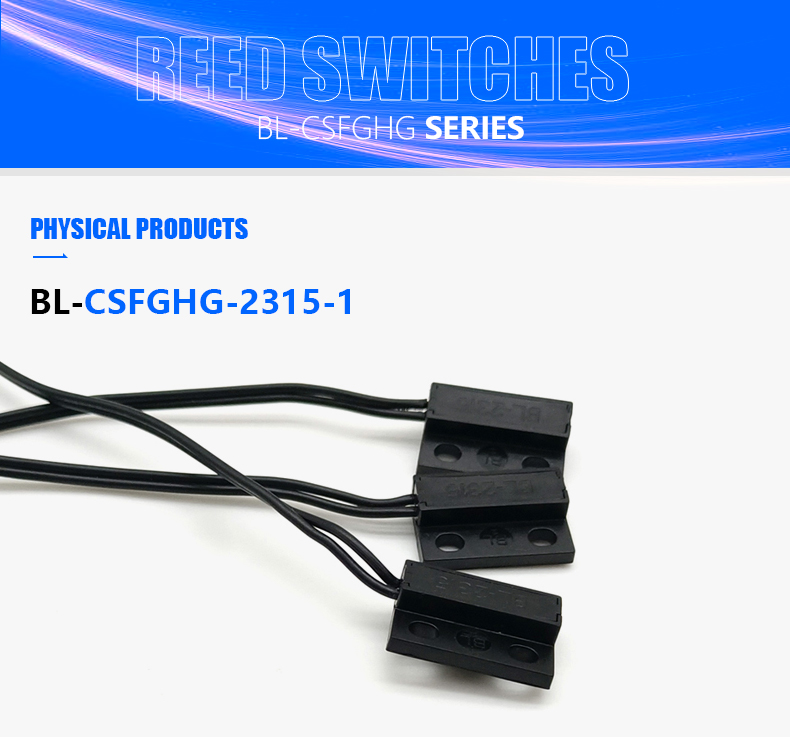

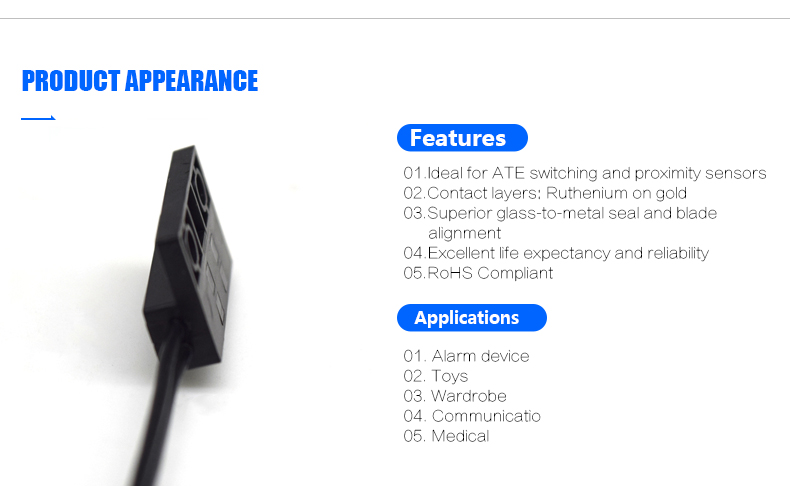

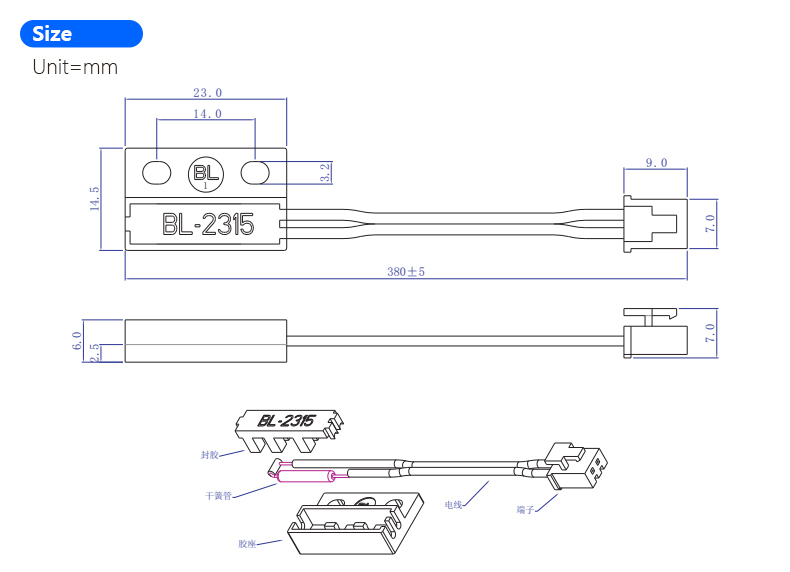

BL-CSFGHG-2315 No/Nc 도어 자기 센서
- Whether the smart:Yes
- Place of Origin:Guangdong, China
- Brand Name:GBeelee
- Model Number:BL-CSFGHG-2315
- Max. Current:0.5A
- Max. Voltage:200 V.AC/DC
- Pull in Value:10-40 AT
- Contact Rating:10 W
- Max. current:0.5A
- Contact resistance:max 150 m ohm
- Insulation resistance:min 1*10^10 ohm
- min. Withstand voltage:250 V.DC
- Max.switching voltage:200 V.AC/DC
- Certification:RohS
01. Micro changeover dry-reed switch hermetically sealed in a gas- filled envelope. Single-pole, double-throw (SPDT) type, having a normally open and a normally closed contact.

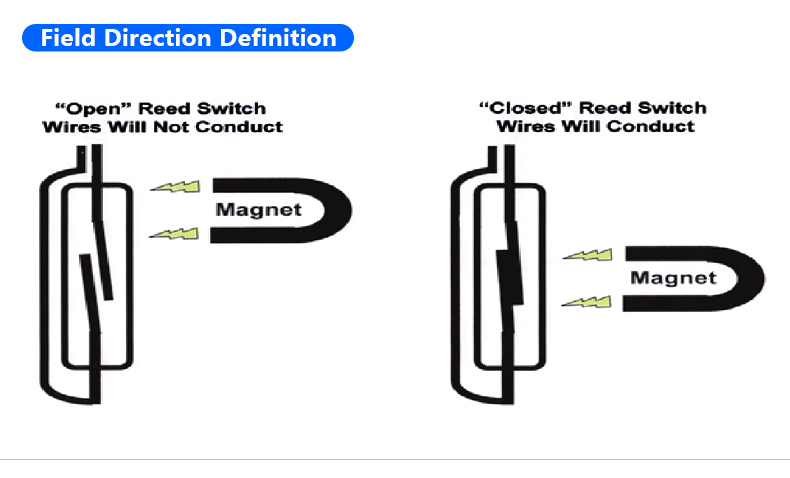

02.The switch may be actuated by an electromagnet, a permanent magnet or a combination of both. The device is intended for use in sensors, relays, pulse counters or similar devices.

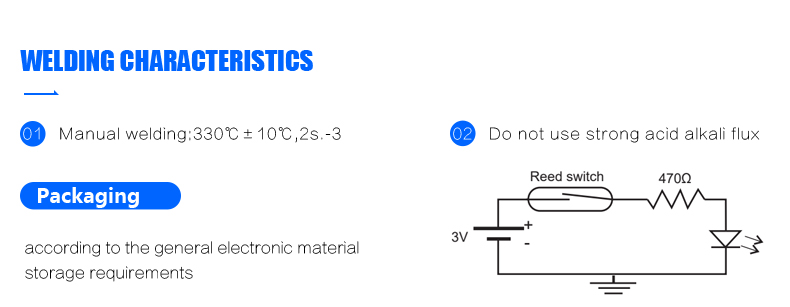

| Project | specs | unit | Test conditions |
| Pull in Value | 10-40 | AT | I=20mA switch is consistent with the coil center (total length of 13mm turns, 5000T coil resistance, 530m ohm), 100AT first, then return to zero, and then measure the AT value. Resistance test: closing value× 1.5 times current. |
| Release value | 5 min | AT | |
| Contact resistance | 150 max | m ohm | |
| Insulation resistance | 1*1010min | ohm | Measure after applying voltage DC100V1 for minutes. |
| Withstand voltage | 250 min | V.DC | Within 60 seconds with leakage current below 500uA |
| Contact Rating | 10 | W | |
| Max.switching voltage | 200 | V.AC/DC | |
| Max. current | 0.5 | A | |
| Max.energizing current | 1 | A | |
| Operating time | 0.6 max | m sec | Control mode: 1, square wave drive, coil frequency 10Hz 2, current 20mA. |
| Bounce time | 0.4 max | m sec | |
| Release Time | 0.2 max | m sec | |
| Max.driving cycles | 500 | Hz | |
| Resonance cycle number | 5000±400 | Hz | |
| Tensile strength | 19 | N(Kgf) | Apply the specified tension vertically for 20 seconds and there is no abnormality at the tight part |
| Operating temperature | -40~+125 | ℃ | Humidity below 70%rh |
| Storage temperature | 5~+35 | ℃ | |
| Thermal Shock | -10~+65 | ℃ | MIL-STD-202G |
| Welding heart-resistant property | 310 | ℃ | Heat for 3 seconds at the place >2.0mm away from the contact part |
| Soldering tin rate | 90 | % | 310℃,3s |
| Impact resistance | 480 | m/s2 | MIL-STD-202G |
| Vibration resistance | 10~55 | Hz | MIL-STD-202G |
Q1:How can I get more information about your product?
A1:Please send the inquiry for us, and then we can send the detail including spec and offer to you.
Q2:Do you accept OEM or ODM?
A2:Yes,But we have quantity requirements.
Q3:What is the payment way of your company?
A4:100% T/T in advance before shipping,(We can accept payment such as T/T, Paypal,Western Union,Alibaba trade assurance,Etc. )
Q4:What is the shipping way?
A5: Usually by air (DHL,UPS,TNT, FedEx etc).
Q5:How long for manufacturing once we place order?
A7: I0000pcs within 5-10 days.
Q6:How long for samples order?
A7: Usually within 24 hours.
