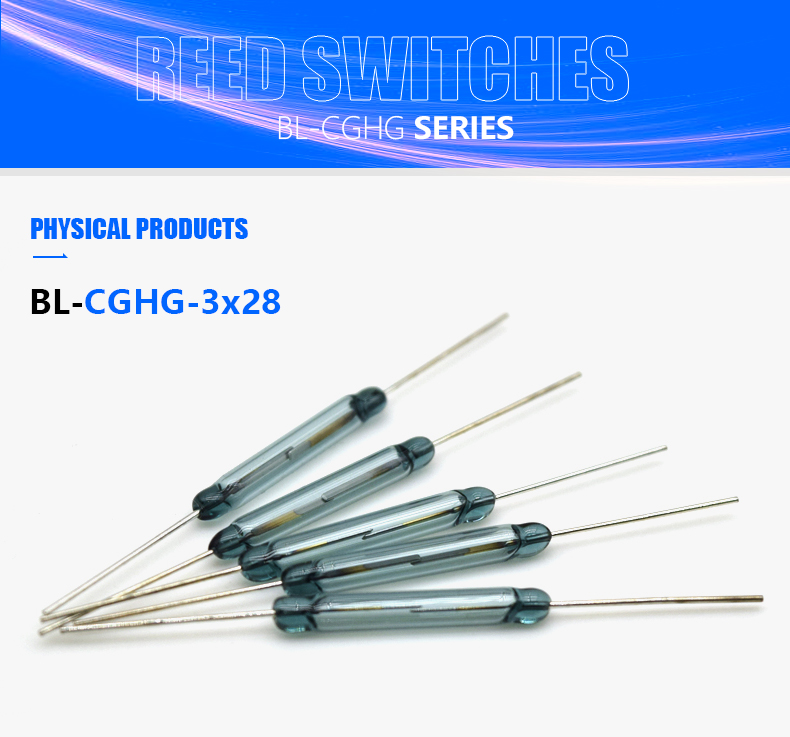

Beelee 3X28 manyetik küçük indükleme anahtarı PCB kartı için normalde kapalı silindirik mühürlü yakınlık

BL-CGHG-3X28

Minimum sipariş

1 Parça

Miktar:

Bir iletişim mektubu gönderin

Sepete ekle

Certification:RoHS
Whether the smart:NO
Place of Origin:Guangdong, China
Brand Name:Beelee
Model Number:BL-CGHG-3X28
Max. Current:0.5A
Max. Voltage:250VDC
Contact Rating:12W
Switching Voltage:250VDC
Breakdown Voltage:250VDC
Switching Current:0.5A
Max.Carry Current:1A
Resonant Frequency:1.7kHz
Operating Frequency:50Hz

DESCRIPTION

01.Micronormally open reed switch hermetically sealed in gas fulled envelope.Single-pole, double-throw (SPST-NO) type.

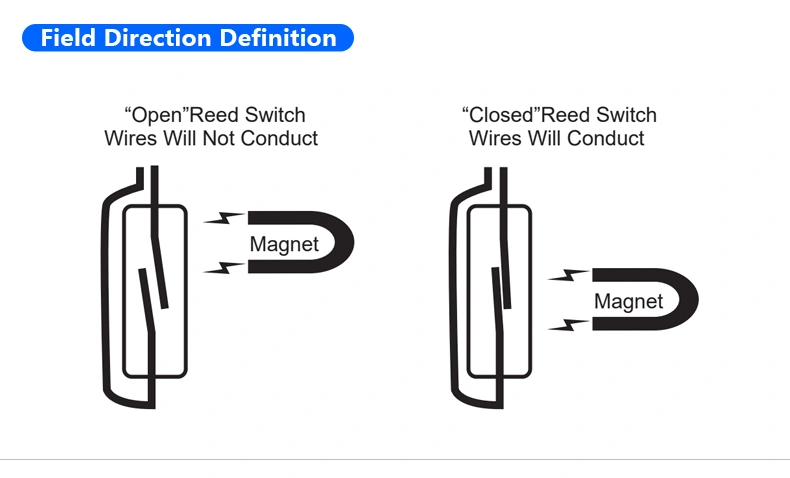

02.The switch may be actuated by an electromagnet, a permanent magnet or a combination of both.The device is intended for use in sensors, relays, pulse counters or similar devices.

parameter	Unit	BL-CGHG-3X28
Contact Form		A
Contact Rating	W	12
Switching Voltage	VDC	250
Breakdown Voltage	VDC	250
Switching Current	A	0.5
Carry Current	A	1
Intial Contact Resistance	mΩ	150
Insulation Resistance	Ω	10⁹
Resonant Frequency	Hz	1.7k
Operating Frequency	Hz	50
Pull in Value	AT	30-80
Drop Out Value	FT	10
Contact Capacitance	PF	0.5
Electrcal Life (Resistive Loads)		510⁶(5VDC,5mA) 110⁶(60V,25mA)
Test Coll	Ω	5000
Number Of Turns Resistance	Ω		400

Q1:How can I get more information about your product?
A1:Please send the inquiry for us, and then we can send the detail including spec and offer to you.
Q2:Do you accept OEM or ODM?
A2:Yes,But we have quantity requirements.
Q3:What is the payment way of your company?
A3:100% T/T in advance before shipping,(We can accept payment such as T/T, Paypal,Western Union,Alibaba trade assurance,Etc. )
Q4:What is the shipping way?
A4: Usually by air (DHL,UPS,TNT, FedEx etc).
Q5:How long for manufacturing once we place order?
A5: 10000pcs within 5-10days
Q6:How long for samples order?
A6: Usually within 24hour
