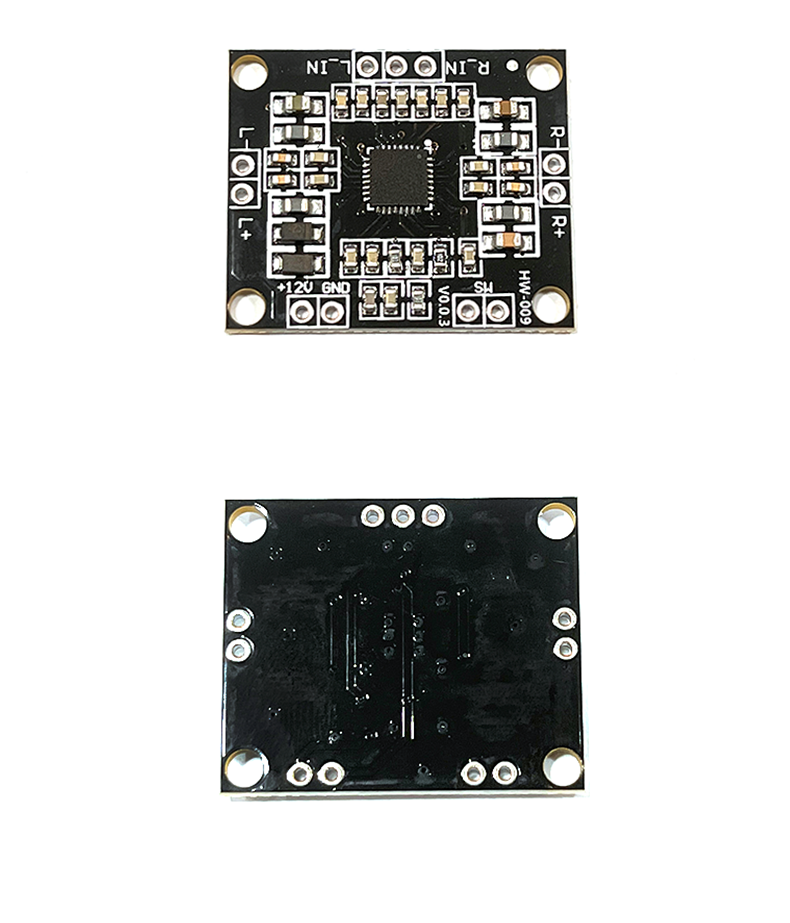

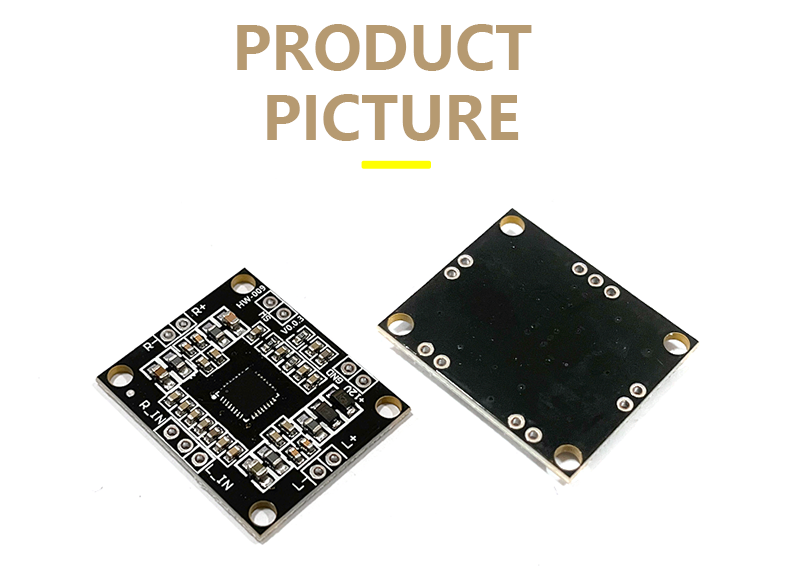

XST-MZ-009 Pam8610 amplifier board diy Module

XST-MZ-009

minimum order

1 piece

Quantity:

Contact Now

add to cart

Model Number:XST-MZ-009
Type:Pam8610 amplifier board diy Module
Place of Origin:Guangdong, China
Brand Name:Xunster
Chipset:PAM8610
Application:Audio and other electronic products power amplifier board
Power supply voltage:DC 7V-15V
Output power:10W+10W (8Q load) 15W+15W (4Q load)
Efficiency:>90%
Break current:4uA
Static current:20mA
Signal to noise ratio:86%
Frequency range:20Hz-20KHz
Input impedance:15K Q
Amplifier board size:30mm* 25mm* 2.5mm

The amplifier has super high efficiency and ultra -large power. Under the condition of 12V power supply, it can output 10W+10W power. The chip does not require heat sink, and it has a protective function such as overheating and overcurrent. The functions can be said to be very powerful.

This board has a switch function that will be shortened by SW and will turn off the power amplifier.

Precautions:

1. The voltage of the power supply limit is 16.5V, do not exceed this voltage power supply, do not connect the positive and negative extreme

2. Power supply power supply is recommended to 12V, 3A filtering power supply power supply

3. The speaker is recommended to use 4-8 inch audio

4. Please do not shorten the audio output.

5. Please check carefully before power -on to ensure that the wiring is correct and can be powered on.
