pp water level sensor switch horizontal high quality fluid controller float

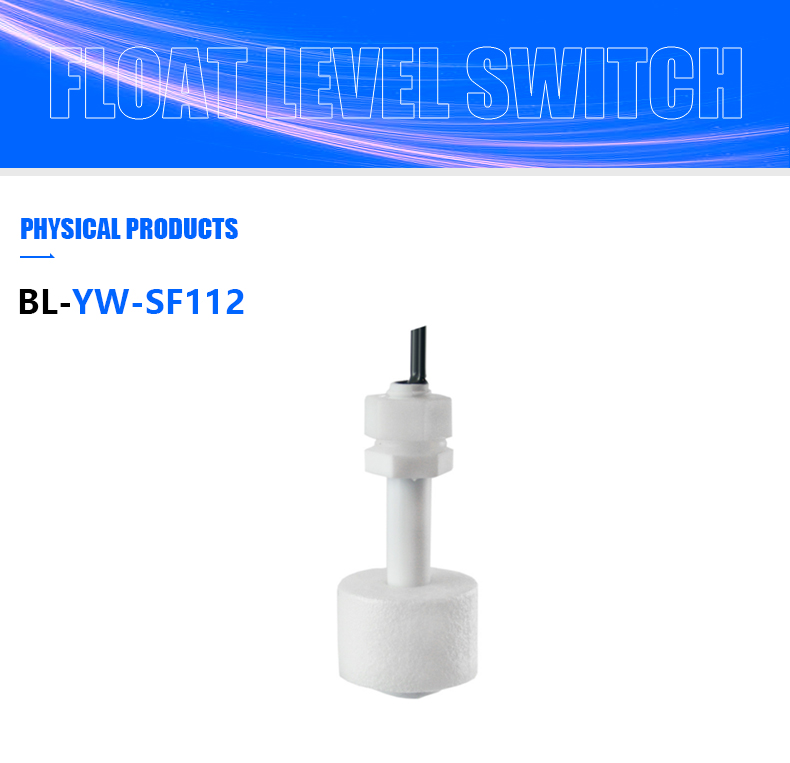

• Model Number:BL-YW-SF112
• Type:Liquid Level Sensor
• Place of Origin:Guangdong, China
• Brand Name:BeeLee
• Usage:Liquid level safety control field
• Theory:Floating ball type magnetic liquid level switch
• Output:200V DC~580V DC
• Description:YW-SF112
• Maximum switch power:10W
• Maximum switch voltage (DC):200V
• Maximum switch voltage (AC):140V
• Maximum switch current (DC):500mA
• Maximum switch current (AC):500mA
• Minimum breakdown voltage:230V DC
• Maximum load current:1.75A
• Maximum contact impedance:100mΩ
• Minimum insulation resistance:106MΩ
• Range of working temperature:-40℃~+80℃

The principle of floating ball magnetic liquid level switch is equipped with an appropriate constant magnetic field in the floating ball of the pole. Due to the rise or decrease of the liquid level, the magnetic field generated inside the floating ball triggers the dry reservoir in the pole to generate action. Widely used in the field of liquid level measurement, liquid level alarm and liquid level safety control.
