Metal level switch BL-YW-Y23A no touch switch Capacitive Water Level Sensor Contactless Pipe Water Level Detection

• Place of Origin:Guangdong, China
• Brand Name:GBeelee
• Model Number:BL-YW-Y23A
• Warranty:Other
• Type:no touch switch
• Certification:rohs
• Power:≤100mA
• Voltage:DC 5V
• Customized:Yes
• Sensing Range:contact us
• Whether the smart:Yes
• Input voltage (Vin):DC 5V
• Ripple and noise voltage:<100mVp-p
• Current consumption:5mA±2mA

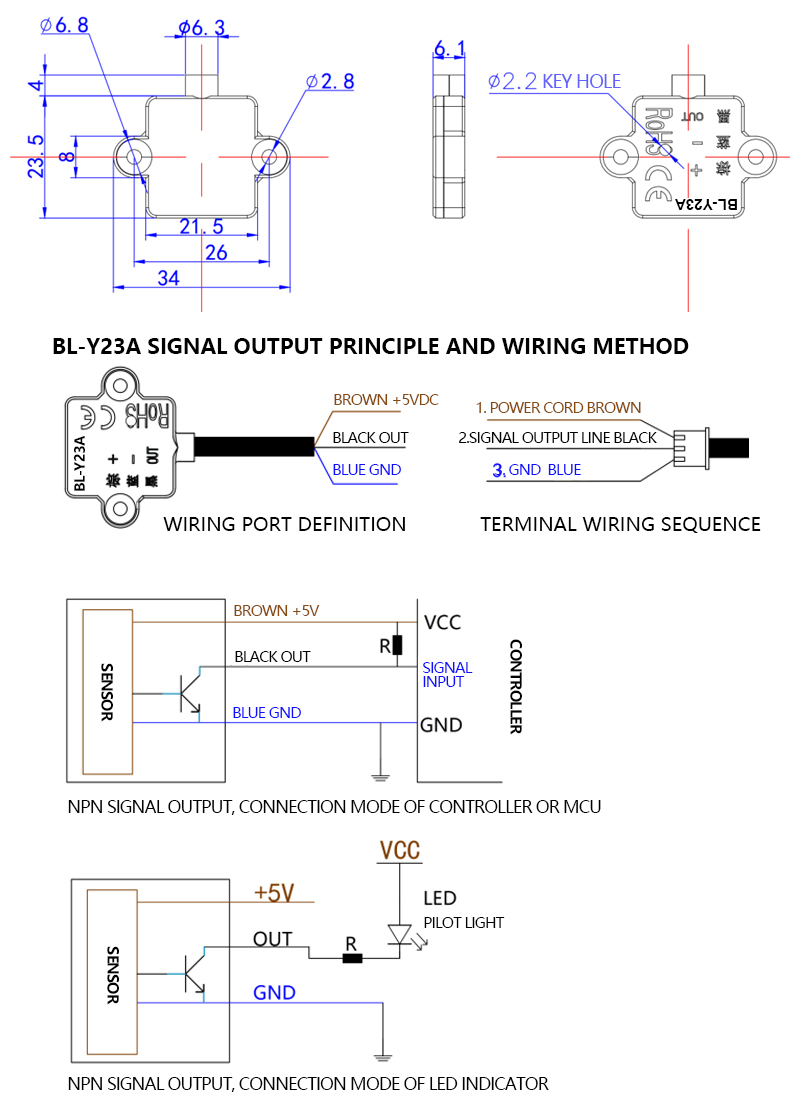

• Output mode:NPN
• Output current:≤100mA
• response time:500mS
• Operating ambient temperature:-20~105℃
• Inductive thickness (sensitivity) range:≤15mm
• Level accuracy:±3mm
• Humidity:≤100%

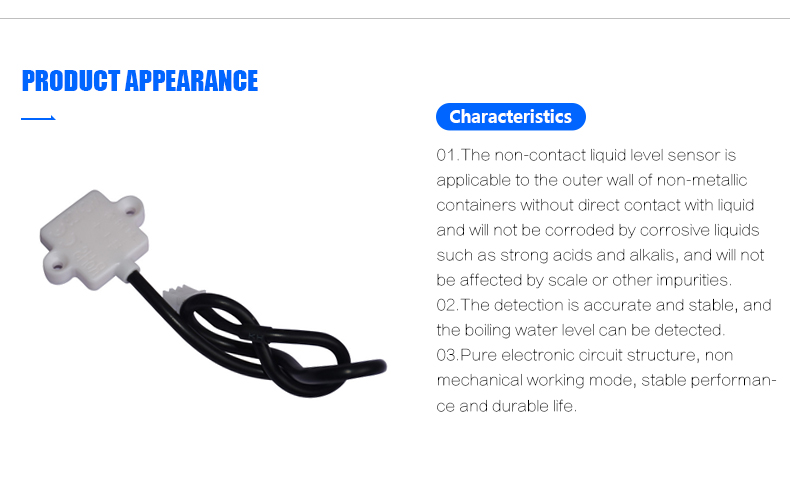

The intelligent non-contact liquid level sensor (hereinafter referred to as the liquid level sensor) uses advanced signal processing technology and high-tech integrated chips, breaking through The influence of the wall thickness of the container realizes the real non-contact detection of the liquid level height in the closed container. The liquid level sensor (probe) is installed on the For the upper and lower parts (high and low level of liquid level), non-metallic containers do not need to be opened, installed simply, and do not affect production. It can realize Test the liquid level of various toxic substances, strong acids, strong alkalis and various liquids. The liquid level sensor has no special requirements for the material of liquid medium and container, and can Extensive use.
