hall current sensor

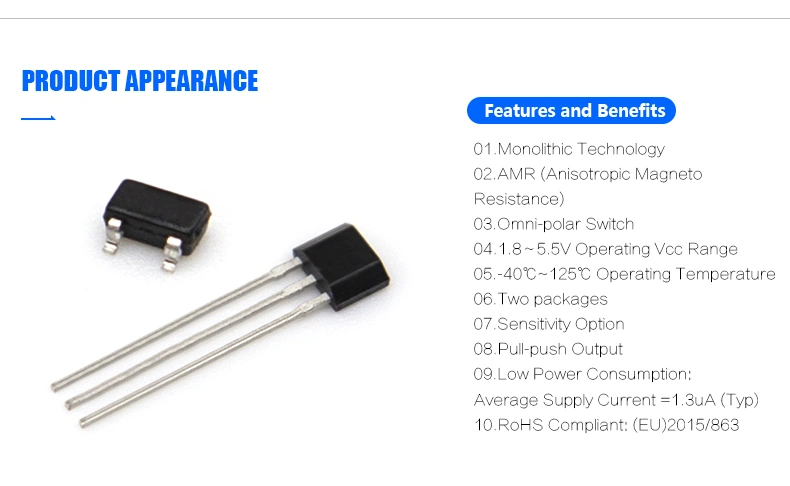

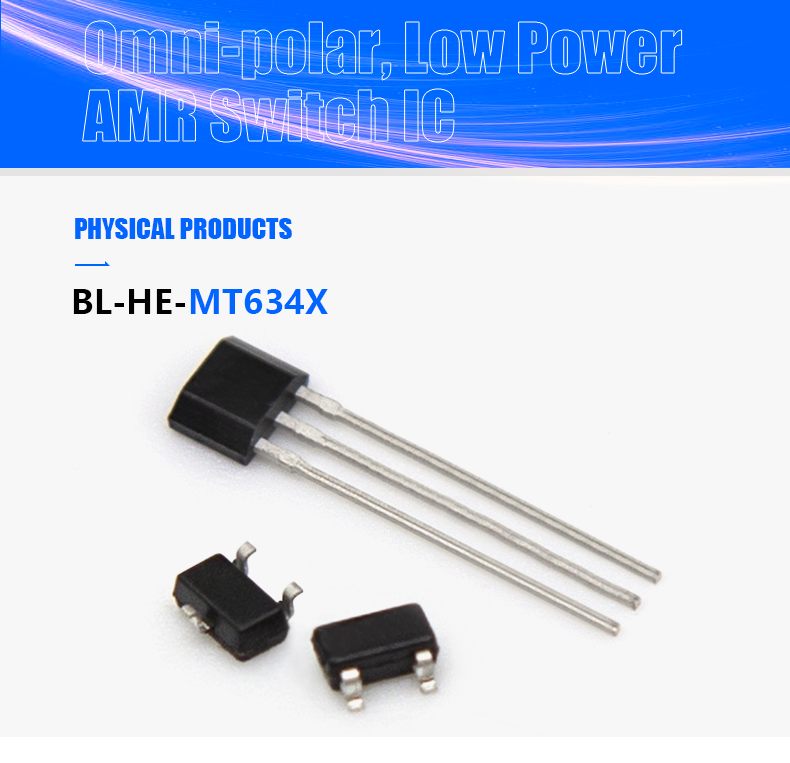

BL-HE-MT634X Omnipolar Hall Sensor, Low Power AMR Switch IC for Pcb Pcba

BL-HE-MT634X
minimum order
1 piece
Quantity:
Contact Now
add to cart
  • Model Number:BL-HE-MT634X
  • Type:hall effect switch
  • Place of Origin:Guangdong, China
  • Brand Name:GBeelee
  • Use:Home appliances, Industrial
  • Theory:AMR (Anisotropic Magneto Resistance)
  • Output:Pull-push Output
  • Supply voltage:1.8 V~5.5 V
  • Supply Current:1.3-2.0uA
  • Output Low Voltage:0.2V
  • Output High Voltage:Vcc- 0.3
  • Output Leakage:1uA
  • Power on Time:100us
  • Switching Frequency:20Hz
  • Awake Time:12us
  • Sleep Time:50ms
  • Duty Cycle:0.02%
  • Description:Hall sensor






The BL-HE-MT634X family is produced with monolithic technology. Which built AMR sensor & ASIC on one chip. The IC internally includes a Wheatstone bridge with magnetic film, a voltage regulator for operating with supply voltage from 1.8V to 5.5V, a sleep/awake logic for low power consumption requirement, small signal amplifier and Schmitt trigger comparator with dynamic offset cancellation, and an output driver with push-pull output.


























































































































SymbolParametersTest ConditionMinTypMaxUnit
VCCSupply VoltageOperating1.8-5.5V
ICCSupply CurrentVCC=3.6V-1.32.0uA
VOLOutput Low VoltageVcc=3.6V, IOUT=15mA,
B>BOP		--0.2V
VOHOutput High VoltageVcc=3.6V, IOUT=15mA,
B		Vcc- 0.3--V
IOFFOutput LeakageVOUT=5.5V, B
Current		--1uA
TPOPower on TimedVCC/dt>3.6V/us, B>BOP(MAX)--100us
FSWSwitching FrequencyVCC=3.6V-20-Hz
TAWAwake TimeVCC=3.6V-12-Us
TSLSleep TimeVCC=3.6V-50-ms
D.C.Duty CycleVCC=3.6V-0.02-%

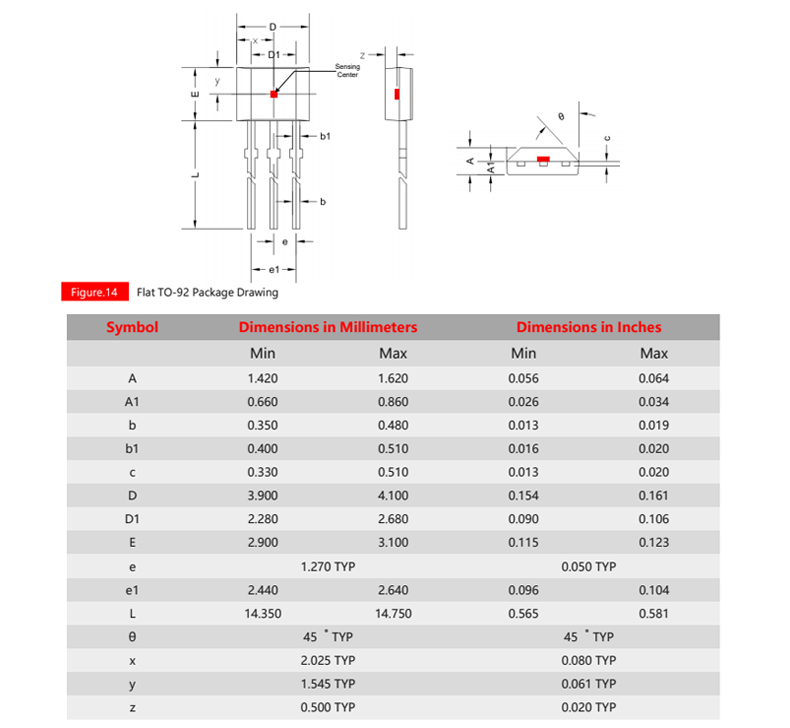

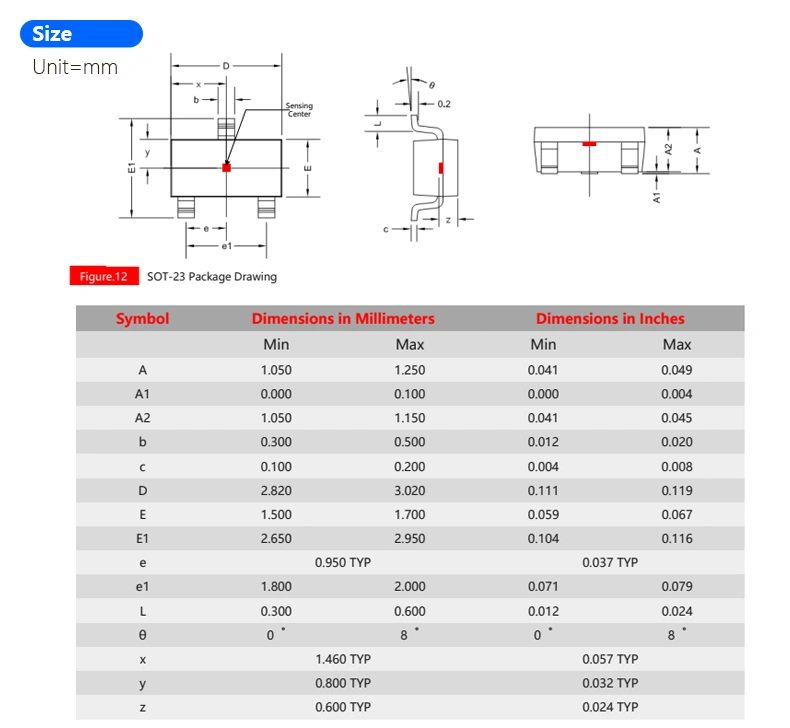

RTHThermal Resistance of SOT-23 -301-℃/W
Thermal Resistance of Flat TO-92 -230-℃/W
