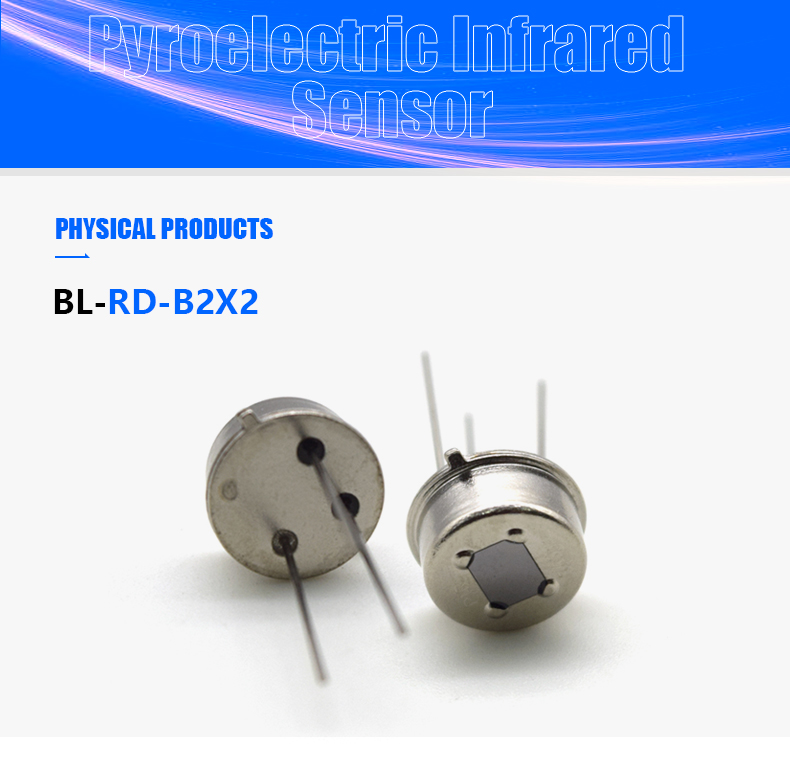

GBeelee BL-RD-B2X2 Intelligent PIR sensor Pyroelectric Infrared Radial Sensor for Smart toys sensing doors
BL-RD-B2X2
minimum order
1 piece
Quantity:
- Series:Pyroelectric Infrared Sensor
- Features:Digital signal processing, Contact Us
- Mounting Type:Digital signal output, Contact Us
- Description:BL-RD-B2X2
- Model Number:BL-RD-B2X2
- Place of Origin:Guangdong, China
- Brand Name:GBeelee
- Usage:Smart toys, sensing doors,etc.
- Theory:PIR SENSOR
- Output:≥ 3500mV
- Brand:Contact Us
- Amplifier Type:Contact Us
- Voltage - Supply:3~15V
- Output Type:≥ 3500mV
- Operating Temperature:-30~70
- Resolution (Bits):≥ 75%
- Current - Supply (Max):15μA
- Packaging:Contact Us, TO-5
- Frequency:Contact Us
- Output Configuration:Contact Us
- Current:Contact Us
- Voltage Rating:0.3~1.2V
- Operating Force:Contact Us
- Oxygen Range:Contact Us
- Humidity Range:Contact Us
- Size:Contact Us
- Size / Dimension:4*4mm
- Measuring Range:Contact Us
- Resolution:Contact Us
- Interface:Contact Us
- Technology:Contact Us
- Sensing Range:1.1*1.1mm 4elements
- Current - Output (Max):Contact Us
- Bandwidth:Contact Us
- Function:Contact Us
- Acceleration Range:Contact Us
- Sensitivity (LSB/g):≥ 3300V/W
- Sensitivity (mV/g):≥ 3300V/W
- Sensitivity (LSB/(°/s)):≥ 3300V/W
- Sensitivity (mV/°/s):≥ 3300V/W
- Sensing Distance:5~14μ m
- Current - Output:-10~10MA
- Power - Rated:Contact Us
- Voltage - Output Difference (Typ) @ Distance:Contact Us
- Voltage - Output (Typ) @ Distance:Contact Us
- Voltage - Max:Contact Us
- Voltage - DC Reverse (Vr) (Max):Contact Us
- Power - Max:Contact Us
- Sensing Object:Contact Us
- Sensing Light:Contact Us
- Resistance:Contact Us
- Resistance Tolerance:Contact Us
- Sensing Temperature - Local:Contact Us
- Sensing Temperature - Remote:Contact Us
- Current Rating - AC:Contact Us
- Current Rating - DC:Contact Us
- Tolerance:Contact Us
- Voltage - Rated:Contact Us
- Flow Sensor Type:Contact Us
- Voltage - Input:Contact Us
- Application:Contact Us
- Output Function:Contact Us
- D/C:Contact Us
- Cross Reference:Contact Us
- Operating temperature range:-30~70 ℃
- Infrared receiving electrode:1.1*1.1mm 4elements
- Receiving wavelength:5~14μm
- Transmittance:≥ 75%
- Output signal peak [Vp-p]:≥ 3500mV
- Sensitivity:≥ 3300V/W
- Noise peak [Vp-p]:<100mV
- Output balance:<10%
- Source voltage:0.3~1.2V

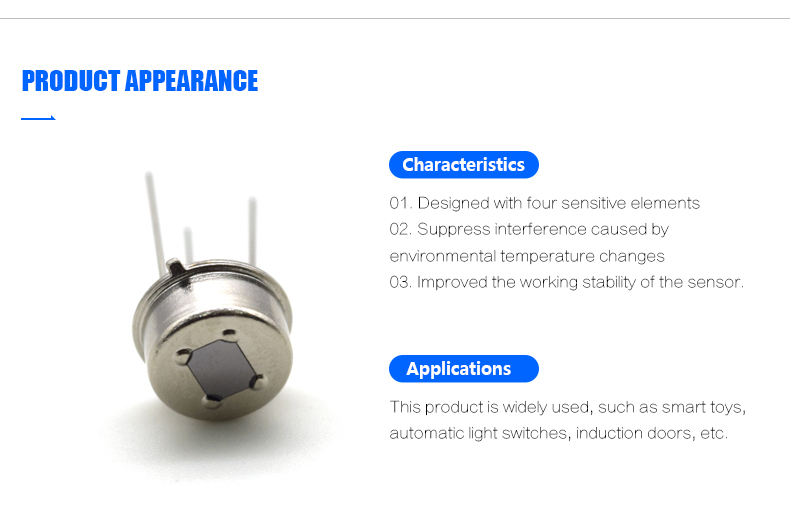

Pyroelectric infrared sensors are sensors that use the characteristics of spontaneous polarization of materials with temperature changes to detect infrared radiation. They are designed with four sensitive elements to suppress interference caused by environmental temperature changes and improve the working stability of the sensor. This product is widely used, such as smart toys, automatic light switches, induction doors, etc.

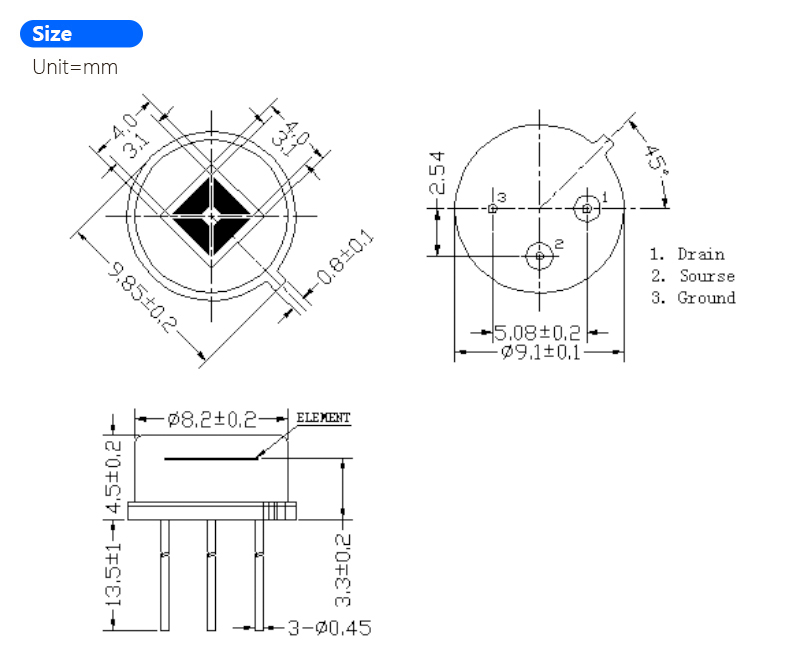

Window size | 4*4mm |
Infrared receiving electrode | 1.1*1.1mm 4elements |
Packaging | TO-5 |
Receiving wavelength | 5～14μm |
Transmittance | ≥ 75% |
Output signal peak [Vp-p] | ≥ 3500mV |
Sensitivity | ≥ 3300V/W |
Detection rate (D *) | 1.4X108 cmHz1/2/W |
Noise peak [Vp-p] | <100mV |
Output balance | <10% |
Source voltage | 0.3~1.2V |
Power supply voltage | 3~15V |
Operating temperature range | -30~70ºC |
Storage temperature range | -40~80ºC |
Output current high | IOH |
Low REL output locking time | TOL |
High REL output delay time | TOH |
