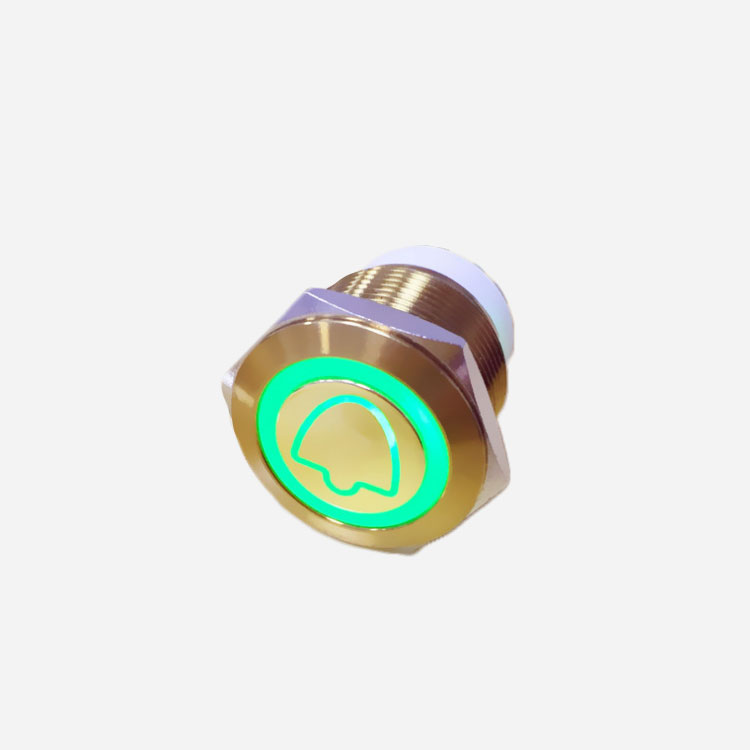

CE ROHS IP67 22mm push button switch with short housing
GQ22A-5
Quantity:
- GQ22A-5 22mm push button switch with short housing doorbell used for home device
- Place of Origin:CN;GUA
- Brand Name:BeeLee
- Model Number:GQ22A-5
- Max. Current:3A
- Max. Voltage:12v
- Certificate:CE
- Material:Brass/Aluminum/SS
- Product name:push button switch
- Insulation Resistance:1GΩmin.at 500VDC
- Dielectric Strength:1000vac rms
- Electrical Life:500000 cycles
- Operating Pressure:5.5N±1.5N
- Operating Stroke:1.5-2.5mm
- Protection Grade:IP65
- Brand Name:BeeLee
| Rating | 100mA 24VDC 2A 125VAC |
| Contact Resistance | 100mΩ MAX |
| Insulation Resistance | 1GΩmin.at 500VDC |
| Dielectric Strength | 1000vac rms |
| Electrical Life | 500000 cycles |
| Operating Pressure | 5.5N±1.5N |
| Operating Stroke | 1.5-2.5mm |
| Protection Grade | IP65 |
