Beelee 10mm illuminated push button switch round reset metal button switch
- Certification:RoHS
- Whether the smart:NO
- Place of Origin:Guangdong, China
- Brand Name:Beelee
- Model Number:LQ-22MM4-FT-XX-XX-XS
- Protection Level:IP65/IP67
- Max. Current:3A
- Max. Voltage:250V
- LED:NO
- Rating:AC/DC 250V 3A
- Contact Resistance:50mΩ Max
- Insulation Resistance:500MΩ Min
- Shell material:Brass
- Electrical life:200,000 cycles
- Mechanical life:1,000,000 cycles

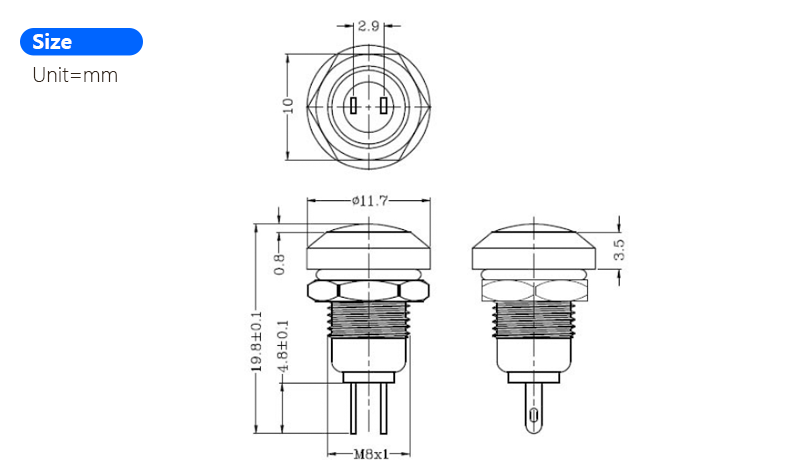

01.Assemble hole 8mm, It is smaller and shorter than similar specifications. self-locking type, reset type metal button switch, To solve the problem of insufficient installation space for some users.
02.Stainless steel, aluminum alloy, copper alloy shell, button shape has convex type, horizontal type, spherical type.
03.A variety of shell colors can be selected, and other colors can be customized.
| Rating | AC/DC 250V 3A |
| Contact Resistance | 50mΩ Max |
| Insulation Resistance | 500MΩ Min |
| Shell material | Brass |
| Electrical life | 200,000 cycles |
| Mechanical life | 1,000,000 cycles |
| Operating Temperature | -20℃~55℃ |
1.Q:Can I get sample from you?
A:Yes,we can provide the free samples for your testing,please contact us for free and tell us which product you need.
2.Q:Do you accept customization?
A:Yes,customization is acceptable,please contact our sales staffs for consult.
3.Q:Can you provide help for technical issues?
A:Yes,we have more than 15 years of research and development in the electronic switch industry. If you need technical help in the purchase process, please feel free to contact us
4.Q:How many types of switches do you have,and what about your quality?
A:We have 10 different types of switches for your choice,all our products is passed the ROHS and REACH,please trust we definitely could meet your quality stander.
