Contactable liquid level sensor

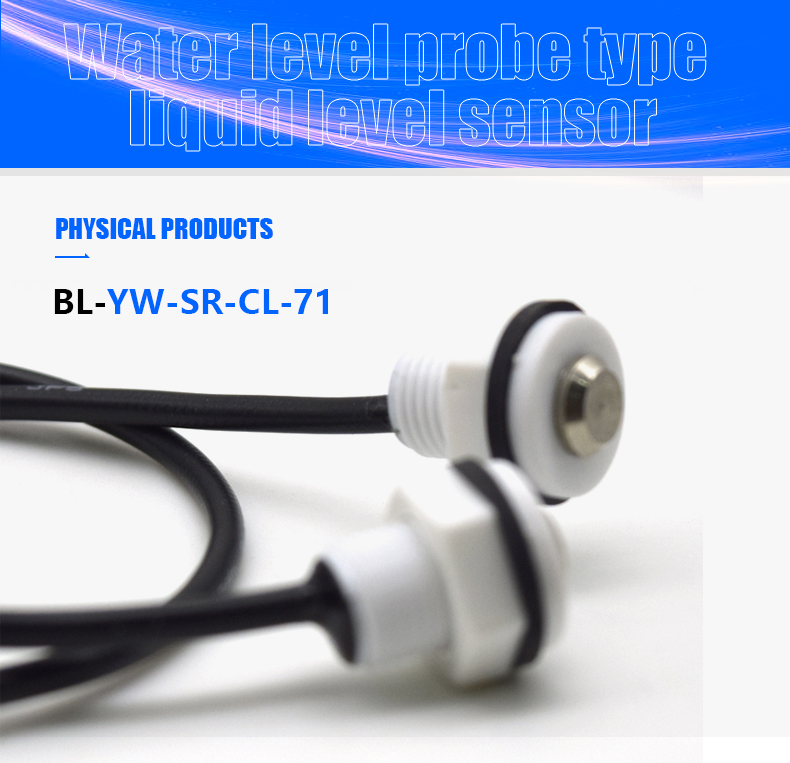

BL-YW-SR-CL-71 Contactable Capacitive Liquid Level Sensor

BL-YW-SR-CL-71
A contactable capacitive level sensor is a sensor used to measure the level of liquids. It is based on the capacitance principle and determines the horizontal position of the liquid by sensing the capacitance change between the liquid and the sensor electrode. This type of sensor is widely used in industry, agriculture, environmental monitoring and other fields to measure liquid levels and monitor liquid flow or storage. Since they come in direct contact with liquids, they are suitable for a wide range of liquid types.
minimum order
1 piece
Quantity:
Contact Now
add to cart
A contactable capacitive level sensor is a sensor used to measure the level of liquids. It is based on the capacitance principle and determines the horizontal position of the liquid by sensing the capacitance change between the liquid and the sensor electrode. This type of sensor is widely used in industry, agriculture, environmental monitoring and other fields to measure liquid levels and monitor liquid flow or storage. Since they come in direct contact with liquids, they are suitable for a wide range of liquid types.
  • Type: Contactable liquid level sensor
  • Place of Origin:Guangdong, China
  • Brand Name:Gbeelee
  • Model Number:BL-YW-SR-CL-71
  • Max. Current:<5mA
  • Max. Voltage:3.3-5.0V
  • working voltage:3.3-5.0V
  • Water output voltage:<0.3V
  • Waterless output voltage:>4.6V
  • Working current:<3mA
  • working temperature:-20℃~120℃
  • Storage temperature:-40℃~120℃
  • working life:50000H
  • Certification:ROHS

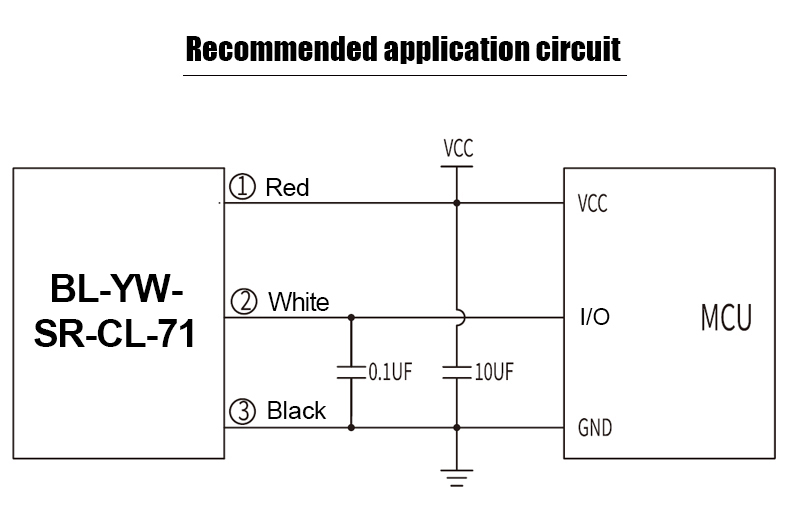

Connect the sensor as described above, and the signal end will output a voltage signal that is consistent with the water level condition. This signal is used as a liquid level control signal to connect to the MCU (microcontroller) I/0 port. When the liquid level exceeds the critical liquid level and submerges the sensor body, the signal output is low voltage. When the liquid level is below the critical liquid level and the sensor body is exposed, the signal output is high voltage.






parameter
Symbol
Conditions
Typ
working voltage
VDD
3.3-5.0V
Water output voltage
V01
VDD=5.0V,Ta=25℃
＜0.3V
Waterless output voltage
V02
VDD=5.0V,Ta=25℃
＞4.6V
Working current
IOP
VDD=5.0V,Ta=25℃
＜3mA
working temperature
Topr
-20℃~120℃
Storage temperature
Tstg
-40℃~120℃
working life
WL
30000H
