liquid level detection

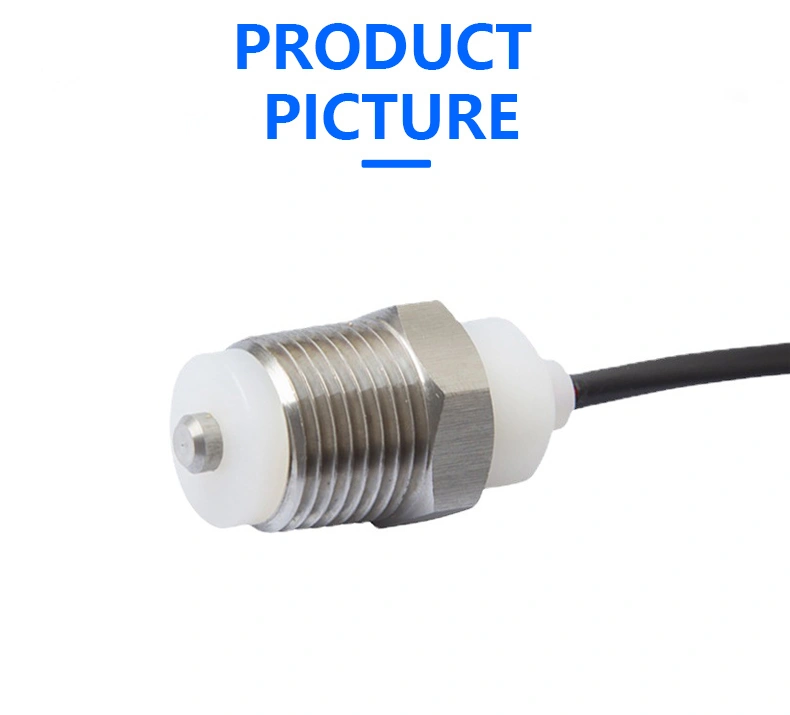

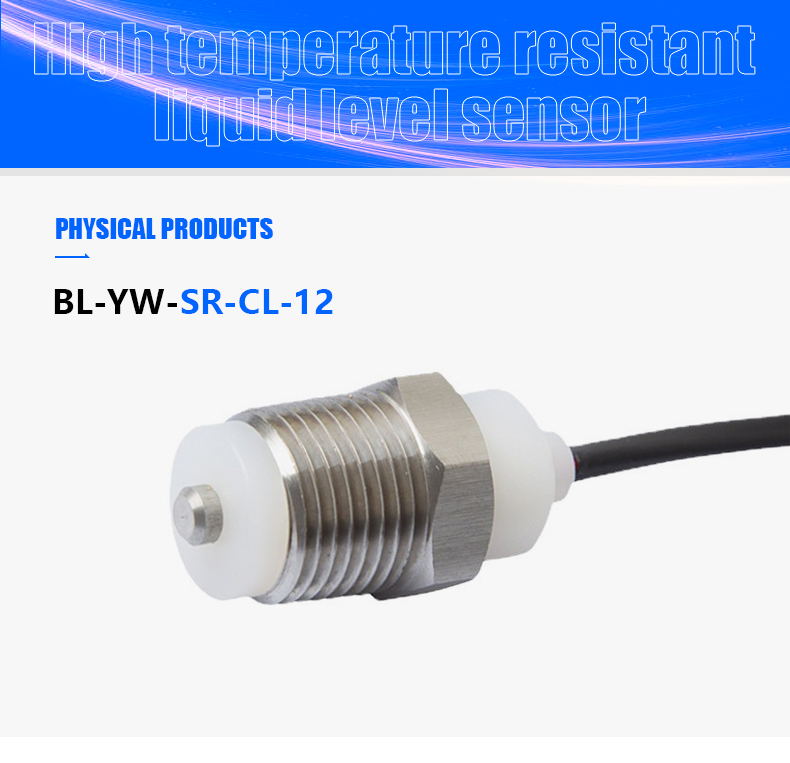

High-Temperature Resistant Probe-Type Liquid Level Sensor for Water Level Detection

BL-YW-SR-CL-12
minimum order
1 piece
Quantity:
Contact Now
add to cart

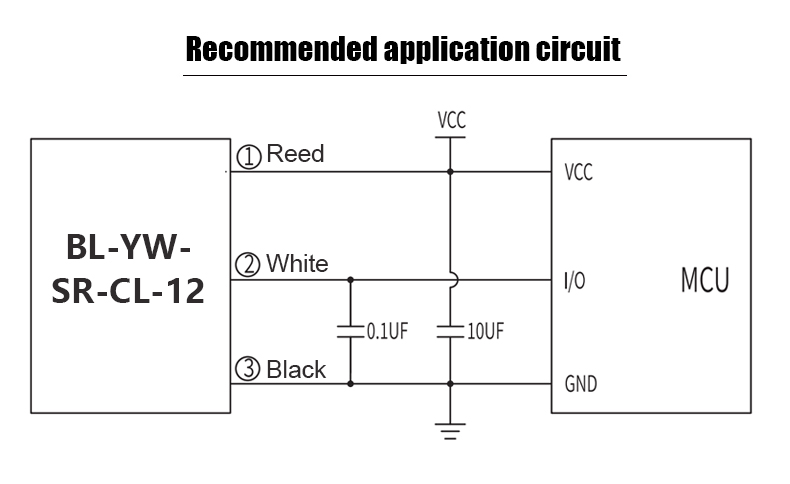

BL-YW-SR-CL-12 is a probe-type liquid-level sensor for high-temperature water circuits. The probe is set at the critical level; the internal circuit reads whether water is covering the probe and turns that into a clean high/low voltage signal. There is no float arm and no moving mechanical part, so nothing sticks, jams or wears, and the output does not depend on the specific gravity of the liquid. The output swings rail to rail — above 11.0 V when the probe is submerged and below 0.3 V when it is exposed, both at a 12 V supply — so it can be wired straight into an MCU input or a comparator without an external amplifier.

Key Specifications

  • Supply voltage: 12–24 V
  • Output with water present: > 11.0 V (VDD = 12 V, Ta = 25 °C)
  • Output when dry: < 0.3 V (VDD = 12 V, Ta = 25 °C)
  • Working current: < 18 mA at 12 V
  • Output logic: NPN or PNP, specified when ordering
  • Output action: normally open or normally closed, specified when ordering
  • Operating temperature: −20 °C to +100 °C
  • Storage temperature: −40 °C to +100 °C
  • Working life: 30,000 hours

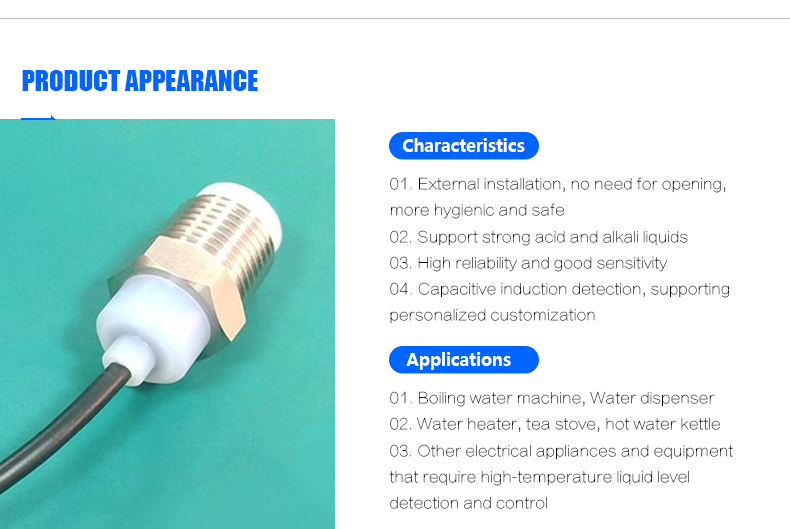

Key Features

  • No mechanical moving parts — high reliability, nothing to jam or wear

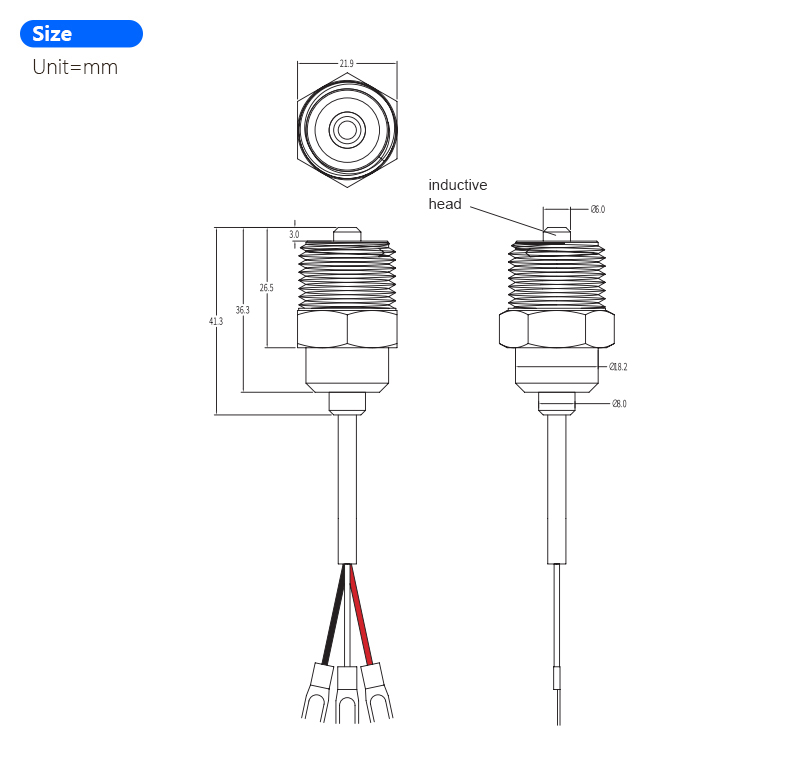

  • Compact probe body, minimal installation space
  • Strong pressure resistance and waterproof construction
  • Output high when submerged, low when exposed — direct MCU interface, no signal conditioning needed
  • NPN and PNP logic, normally-open and normally-closed actions available to match the control board
  • 12–24 V supply, matching common appliance and industrial control voltages
  • Rated for continuous duty up to 100 °C in hot-water circuits

Typical Applications

  • Industrial water boilers, water dispensers and water heaters
  • High-temperature liquid-level detection and level control in appliances and equipment
  • High- and low-level alarms in tanks and reservoirs
  • Liquid presence detection in vending and dispensing equipment

Why Buy from GBeelee

GBeelee is the export brand of Dongguan Bailing Electronics, a national high-tech enterprise that has manufactured sensors for more than 18 years and serves over 20,000 customers. Production is RoHS compliant, and OEM/ODM support is available for custom probe length, leads and output logic. Level sensors are produced in Guangdong, and probe and cable configuration can be adapted to the tank geometry.

Related product lines:Liquid level sensors·Non-contact level sensors

FAQ

How does it detect the level?
The probe sits at the critical level and the output switches high when water covers it and low when it is exposed. There is no float or moving part in the sensing path. If you are switching a liquid other than water, send us the medium and the installation drawing and we will confirm suitability before the order.

What output do I get?
A high/low voltage level: above 11.0 V with water present and below 0.3 V when dry, both measured at a 12 V supply and 25 °C. NPN and PNP versions, in normally-open or normally-closed action, are available — tell us which one your board expects.

Can I use it above 100 °C?
No — 100 °C is the rated operating limit for this model. If your process runs hotter, tell us the target range and we will propose a suitable alternative from the level-sensor range.

What supply should I use?
Anything in the 12–24 V range. The output thresholds quoted above are specified at 12 V; if you run at 24 V, ask us for the corresponding output levels.

  • Series:Contact type liquid level sensor
  • Features:Terminal Link
  • Mounting Type:Built in installation
  • Description:High and low levels, BL-YW
  • Model Number:BL-YW-SR-CL-12
  • Type:Liquid Level Sensor
  • Place of Origin:Guangdong, China
  • Brand Name:GBeeLee
  • Usage:Electrical appliances and equipment's etc.
  • Theory:Any direction liquid detecting
  • Output:<0.3V
  • working voltage:12-24V
  • Water output voltage:<0.3V
  • Waterless output voltage:>11.5V
  • Working current:<12mA
  • working temperature:-20℃~100℃
  • Storage temperature:-40℃~120℃
  • working life:30000H







parameter
Symbol
Conditions
Typ
working voltage
VDD
12-24V
Water output voltage
V01
VDD=12.0V,Ta=25℃
<0.3v
Waterless output voltage
V02
VDD=12.0V,Ta=25℃
>11.5V
Working current
Iop
VDD=12.0V,Ta=25℃
<12mV
working temperature
Topr
-20℃~100℃
Storage temperature
Tstg
-40℃~120℃
working life
WL
30000H
