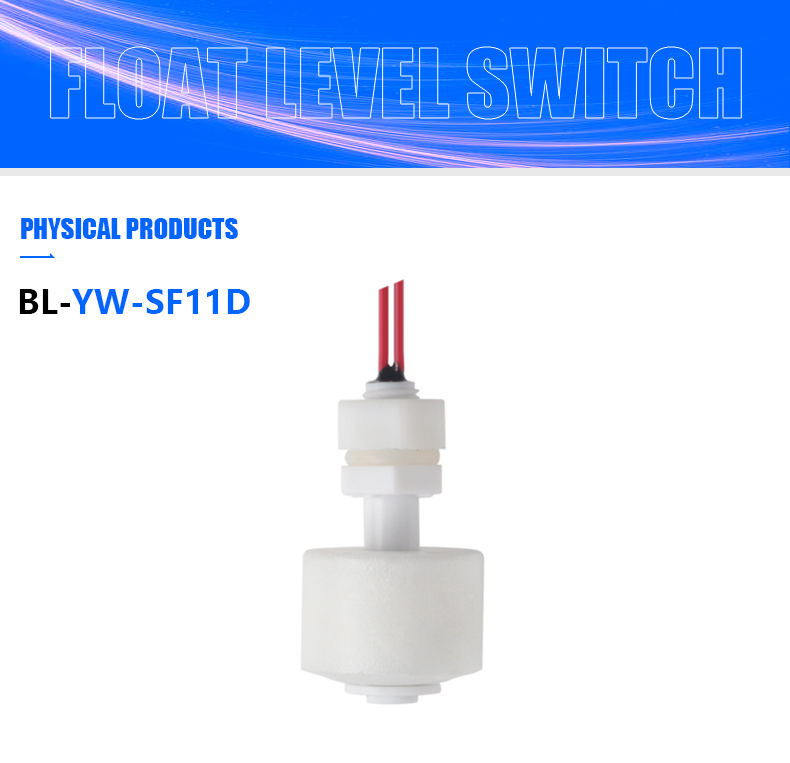

BL-YW-SF11D PP Liquid Level Switch

BL-YW-SF11D

PP magnetic float level sensor refers to a sensor that uses a magnetic float made of polypropylene material for liquid level measurement. PP is a common engineering plastic with good chemical resistance, high temperature resistance, and mechanical strength. This kind of sensor usually includes a floating ball embedded with magnetic material, usually permanent magnet material or other magnetic materials, which makes the floating ball magnetic and can be affected by external magnetic fields. And there are magnetic sensing devices around the sensor, which can be Hall effect sensors, magnetoresistive sensors or other magnetic sensors. These sensors can detect changes in the magnetic field. When the liquid level changes, the magnetic float will rise or fall accordingly, thus affecting the magnetic field in the sensing device. The sensor determines the level of the liquid by detecting changes in the magnetic field.

minimum order

1 piece

Quantity:

Contact Now

add to cart

PP magnetic float level sensor refers to a sensor that uses a magnetic float made of polypropylene material for liquid level measurement. PP is a common engineering plastic with good chemical resistance, high temperature resistance, and mechanical strength. This kind of sensor usually includes a floating ball embedded with magnetic material, usually permanent magnet material or other magnetic materials, which makes the floating ball magnetic and can be affected by external magnetic fields. And there are magnetic sensing devices around the sensor, which can be Hall effect sensors, magnetoresistive sensors or other magnetic sensors. These sensors can detect changes in the magnetic field. When the liquid level changes, the magnetic float will rise or fall accordingly, thus affecting the magnetic field in the sensing device. The sensor determines the level of the liquid by detecting changes in the magnetic field.

Model Number:BL-YW-SF11D
Type: PP Liquid Level Sensor
Place of Origin:Guangdong, China
Brand Name:BeeLee
Usage:liquid level measurement and liquid level alarm
Theory:Floating ball type magnetic liquid level switch
Output:200 VDC~580V DC
Description:YW-SF11D
Maximum switch power:10W
Maximum switch voltage (DC):200V
Maximum switch voltage (AC):140V
Maximum switch current (DC):500mA
Maximum switch current (AC):500mA
Minimum breakdown voltage:230V DC
Maximum load current:1.75A
Maximum contact impedance:100mΩ
Minimum insulation resistance:106MΩ
Range of working temperature:-40℃~+80℃

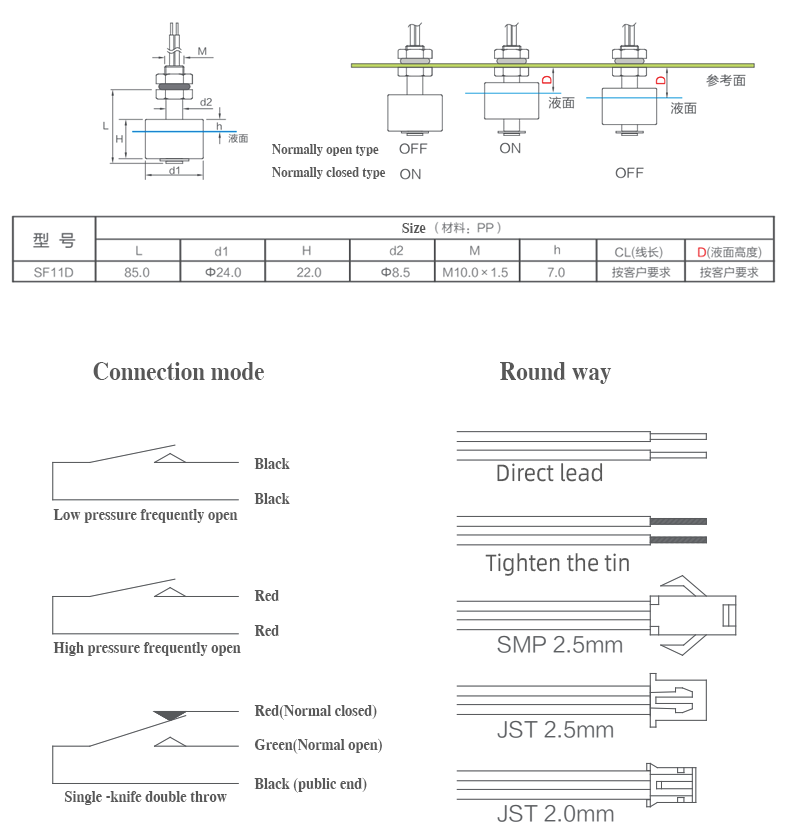

The principle of floating ball magnetic liquid level switch is equipped with a powerful constant magnetic field in the floating ball of the pole. Due to the rise or decrease of the liquid level, the magnetic field generated inside the floating ball triggers the dry reservoir in the pole to generate action. Widely used in the field of liquid level measurement, liquid level alarm and liquid level safety control.

Type	1	2	3
Maximum switch power	10W	70W	5W
Maximum switch voltage (DC)	200V	200V	175V
Maximum switch voltage (AC)	140V	250V	125V
Maximum switch current (DC)	500mA	1000mA	400mA
Maximum switch current (AC)	500mA	1000mA	280mA
Minimum breakdown voltage	230V DC	580V DC	200V DC
Maximum load current	1.75A	2.25A	0.5A
Maximum contact impedance	100mΩ	90mΩ	120mΩ
Minimum insulation resistance	106MΩ	106MΩ	106MΩ
Range of working temperature	-40℃~+80℃	-40℃~+80℃	-40℃~+80℃
