potentiometer

Beelee Potentiometer 3 pin rotary adjustable Potentiometer with switch B1K B10K 50K

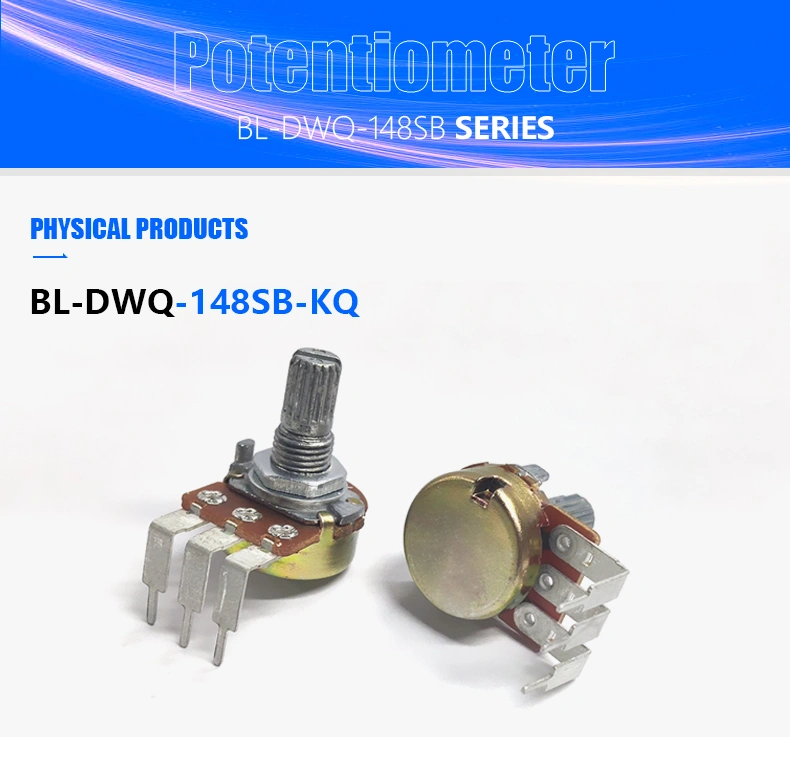

BL-DWQ-148SB-KQ
minimum order
1 piece
Quantity:
Contact Now
add to cart
  • Model Number:BL-DWQ-148SB-KQ
  • Type:Rotary Potentiometer
  • Place of Origin:Guangdong, China
  • Brand Name:Beelee
  • Technology:Metal Alloy
  • Resistance:50K
  • Resistance Tolerance:±10%~±20%
  • Rated Power:0.2W
  • Max. Operating Voltage:200 VAC
  • Operating Temperature:-10℃+55℃
  • Brand:Rotary Potentiometer
  • Adjustment Type:Top Finger Adjustment
  • Mounting Type:soldering
  • Built in Switch:None
  • Rotation:115°-200°
  • Termination Style:Surface Mount

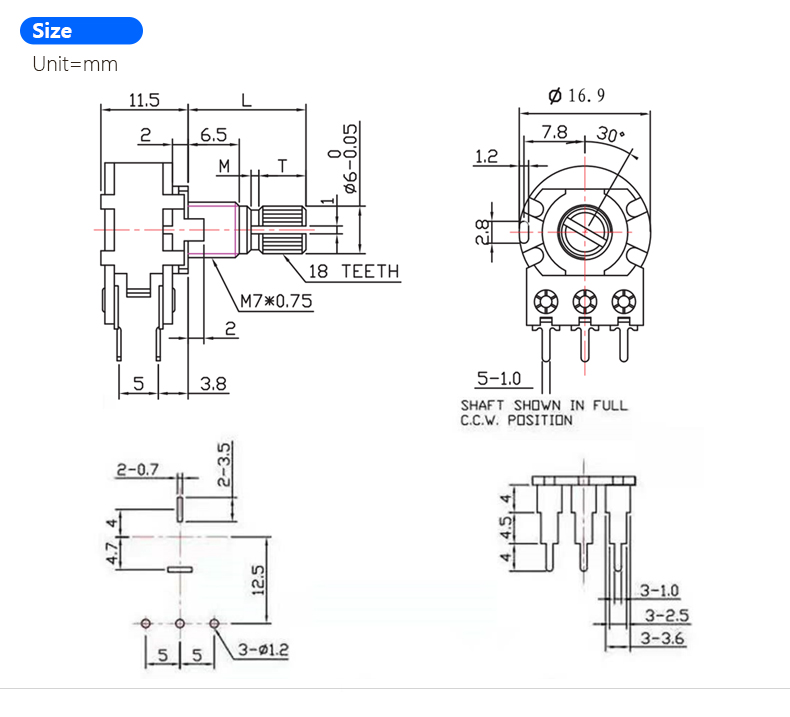

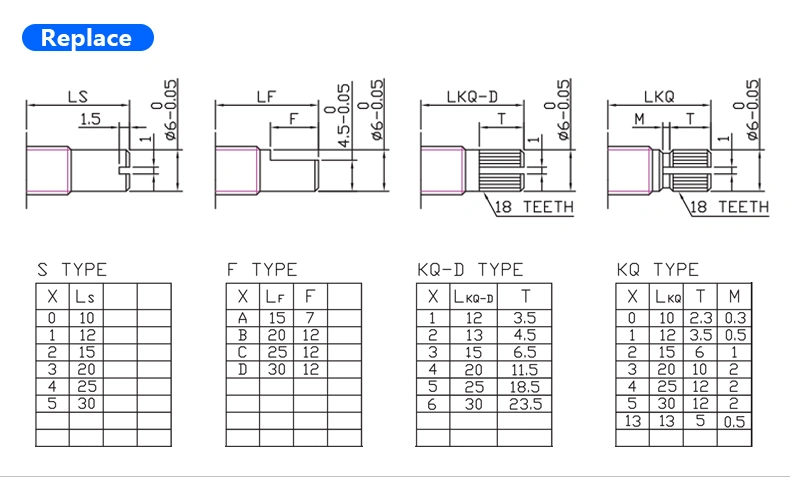

  • Shaft Size:30MM
  • Total resistance and tolerance:total resistance:50K
  • Power rating:B taper:0.2W other taper:0.1W
  • Rated voltage:B taper:200V AC
  • Contact Resistance:Less than 50MΩ
  • Switch power:AC 250V 1A
  • Insulation Resistance:100MΩ min
  • Residual resistance 1-2T:10Ωbelow(MAX)
  • Residual resistance 2-3T:10Ωbelow(MAX)

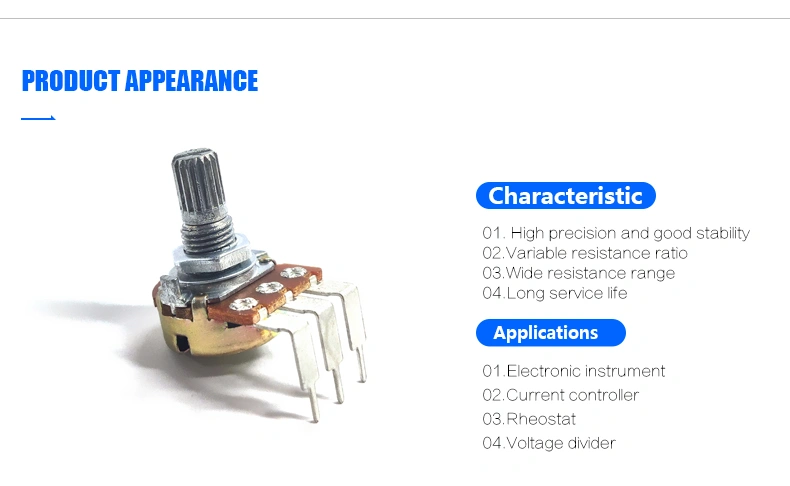

Application:This specification is applied to potentiometers used for electronic equipment.

01.Application:This specification is applied to potentiometers used for electronic equipment.
02.Can effectively 1A current.
03.Operating temperature range -10 ℃ to 55 ℃.


Total resistance and tolerancetotal resistance:50K
tolerance:±10% ±20%
Power ratingB taper:0.2W
other taper:0.1W
Rated voltageB taper:200V AC
other taper:150V AC
Contact ResistanceLess than 50MΩ
Switch powerAC 250V 1A
Insulation Resistance100MΩ min
Voltage proofWithout damage to parts arcing or breakdown.
Residual resistance1-2T:10Ωbelow(MAX)
2-3T:10Ωbelow(MAX)
Slider noiseLess than 47 mV
