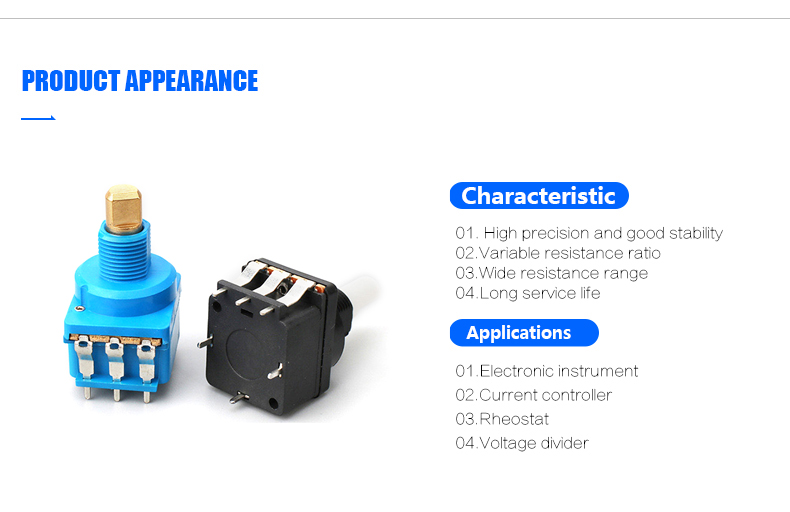

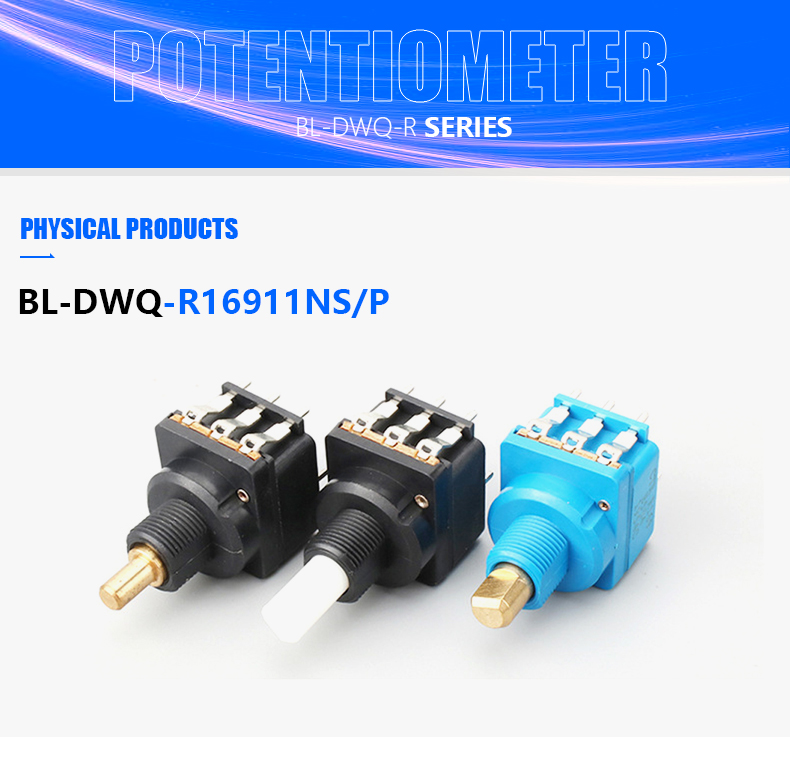

Beelee 17mm single rotary potentiometer PCB mount Potentiometer for current controller

BL-DWQ-R16911NP

minimum order

1 piece

Quantity:

Contact Now

add to cart

Model Number:BL-DWQ-R16911NP
Type:Rotary Potentiometer
Place of Origin:Guangdong, China
Brand Name:Beelee
Technology:Metal Alloy
features:17mm, dimmer switch
Rated voltage:AC 250V
Rated current:10A
Full rotation angle:300°±5°
Slewing life:10000 times

01.Potentiometer is also called variable resistance, sliding resistance and rheostat. It is composed of a resistor body and a rotating or sliding system. A moving contact moves on the resistor body to obtain part of the voltage output.
02.The normal operating temperature range is -10 ~ 70 ℃, and instructions are required for low-temperature operation.

features	17mm, dimmer switch
Rated voltage	AC 250V
Rated current	10A
Full rotation angle	300°±5°
Slewing life	10000 times
