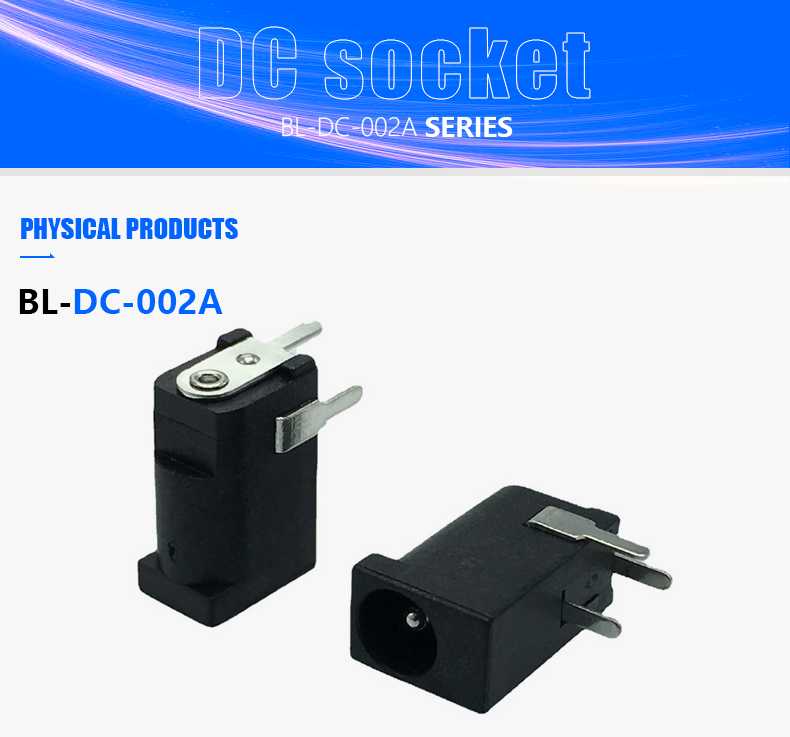

Beelee BL-DC-002A DC charging power socket female plug connector Panel mount DC jack

• Model Number:BL-DC-002A
• Type:Plug - Female Sockets
• Place of Origin:Guangdong, China
• Brand:Beelee
• Packaging:DC connector
• Description:BL-DC-002A DC connector
• Operating temperature range:-30~70℃
• Rated load:DC 30V 1.0A
• Contact resistance:≤0.03Ω
• Insulation resistance:≥100MΩ
• Withstand voltage:AC 500V(50Hz)/min
• Action force:3~20N
• Life:10000cycles

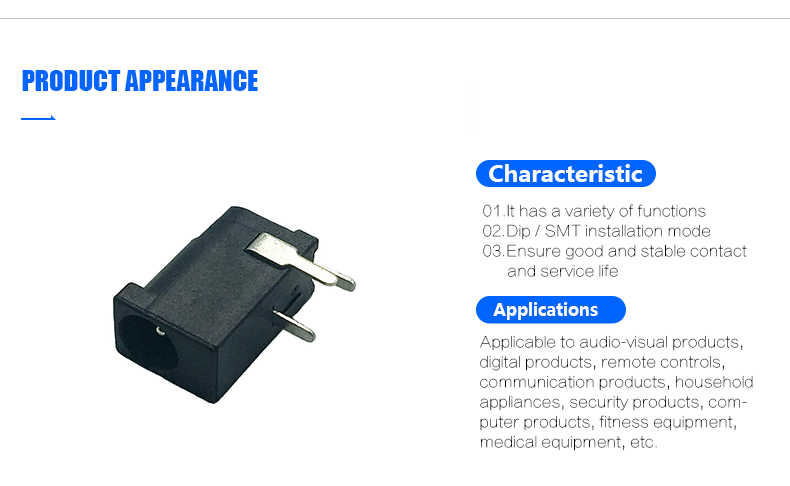

DC socket is a socket matched with the power supply of computer display. It is composed of transverse socket, longitudinal socket, insulating base, fork contact spring and directional keyway.

01.DC socket is a socket matched with the power supply of computer display. It is composed of transverse socket, longitudinal socket, insulating base, fork contact spring and directional keyway.
02.It is made of high-quality materials with reliable performance. There are many different sizes to choose from.
03.Applicable to audio-visual products, digital products, remote controls, communication products, household appliances, computer products, etc.

1.Q:Can I get sample from you?

A:Yes,we can provide the free samples for your testing,please contact us for free and tell us which product you need.

2.Q:Do you accept customization?

A:Yes,customization is acceptable,please contact our sales staffs for consult.

3.Q:Can you provide help for technical issues?

A:Yes,we have more than 15 years of research and development in the electronic switch industry. If you need technical help in the purchase process, please feel free to contact us
