Beelee single port no led 5 6 8 pin female USB connector modular jack

BL-DC-0031

minimum order

1 piece

Quantity:

Contact Now

add to cart

Model Number:BL-DC-0031
Type:Receptacle - Female Sockets
Place of Origin:Guangdong, China
Brand:Beelee
Packaging:plastic
Description:BL-DC-0031 Connector
Operating temperature range:-30~70℃
Rated load:DC 30V 1.0A
Contact resistance:≤0.03Ω
Insulation resistance:≥100MΩ
Withstand voltage:AC 500V(50Hz)/min
Action force:3~20N
Life:10000cycles

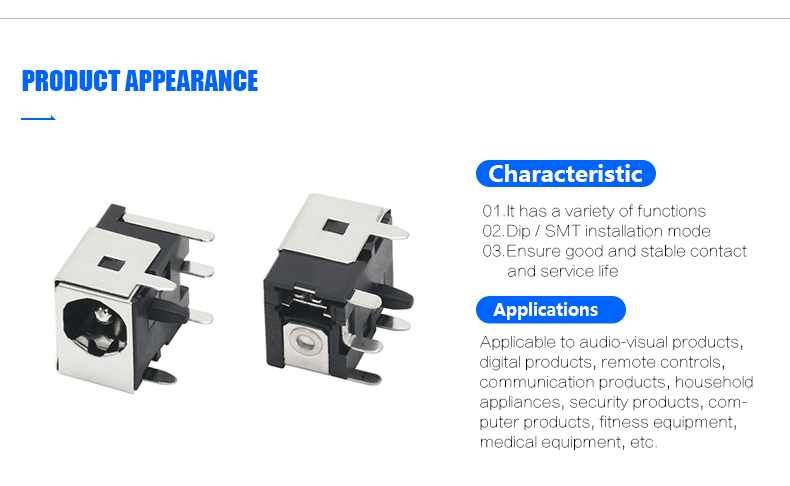

01.DC socket is a socket matched with the power supply of computer display. It is composed of transverse socket, longitudinal socket, insulating base, fork contact spring and directional keyway.
02.It is made of high-quality materials with reliable performance. There are many different sizes to choose from.
03.Applicable to audio-visual products, digital products, remote controls, communication products, household appliances, computer products, etc.

Operating temperature range	-30~70℃
Rated load	DC 30V 1.0A
Contact resistance	≤0.03Ω
Insulation resistance	≥100MΩ
Withstand voltage	AC 500V(50Hz)/min
Action force	3~20N
Life	10000cycles
