Beelee 10V single rotary potentiometer 9mm SMT smt rotary potentiometer for PCB

R08710NS-D

minimum order

1 piece

Quantity:

Contact Now

add to cart

Model Number:R08710NS-D
Type:Rotary Potentiometer
Place of Origin:Guangdong, China
Brand Name:Beelee
Technology:Metal Alloy
Tolerance:Not Applicable
Adjustment Type:Not Applicable
Diameter:4
Mounting Type:Surface mount
Built in Switch:None
Rotation:300°
Resistive Material:Not Applicable
Termination Style:Surface Mount
Actuator Type:Round
features:8mm, single belt rotary switch
Rated voltage:DC10V,AC50V
Full rotation angle:300°±5°
Slewing life:30000 times
Waterproof grade:IP67

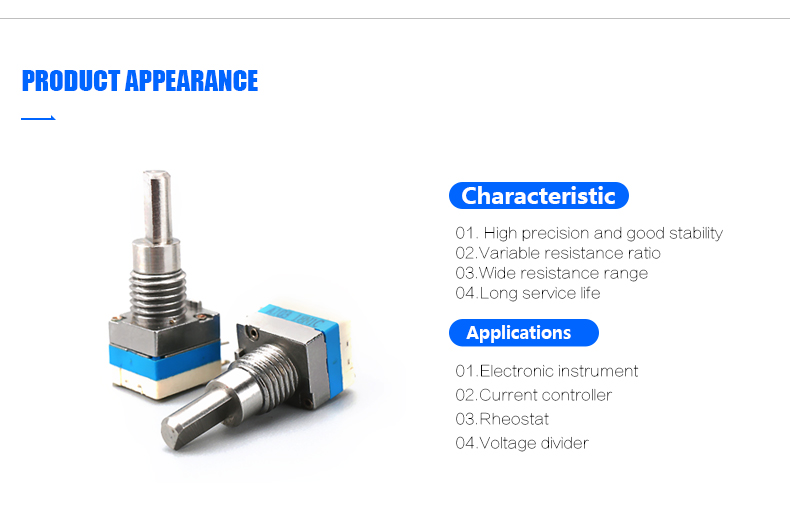

01.Potentiometer is also called variable resistance, sliding resistance and rheostat. It is composed of a resistor body and a rotating or sliding system. A moving contact moves on the resistor body to obtain part of the voltage output.
02.The normal operating temperature range is -10 ~ 70 ℃, and instructions are required for low-temperature operation.

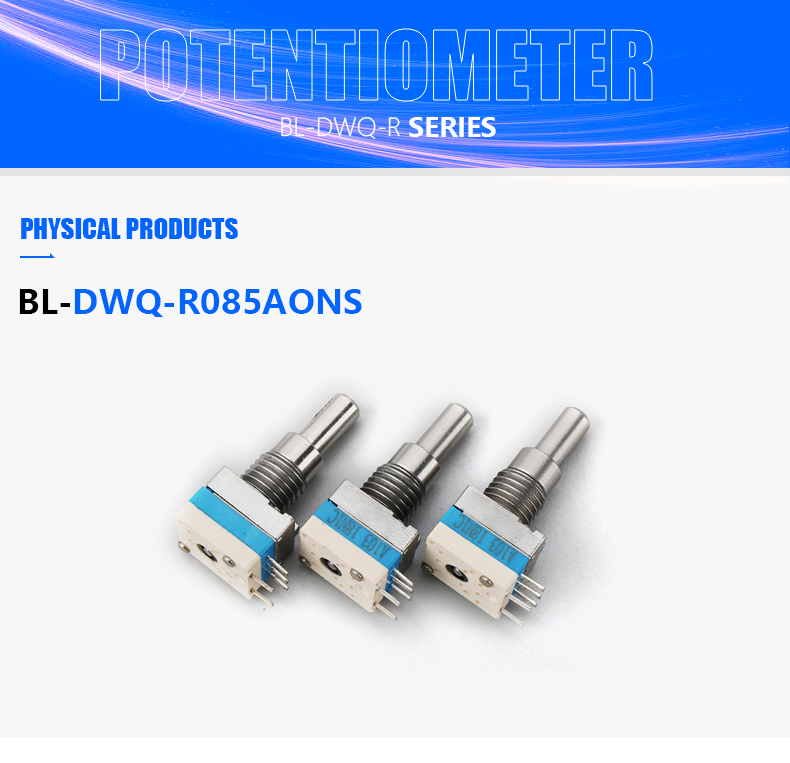

Series project	BL-DWQ-R085A0NS
features	8mm, single belt rotary switch
Rated voltage	DC10V,AC50V
Full rotation angle	300°±5°
Slewing life	30000 times
Waterproof grade	IP67

About us

1.Q:Can I get sample from you?

A:Yes,we can provide the free samples for your testing,please contact us for free and tell us which product you need.

2.Q:Do you accept customization?

A:Yes,customization is acceptable,please contact our sales staffs for consult.

3.Q:Can you provide help for technical issues?

A:Yes,we have more than 15 years of research and development in the electronic switch industry. If you need technical help in the purchase process, please feel free to contact us

4.Q:How many types of switches do you have,and what about your quality?

A:We have 10 different types of switches for your choice,all our products is passed the ROHS and REACH,please trust we definitely could meet your quality stander.
