BL-JJ-H2R photo interrupter switch square capacitive proximity switch detection metal liquid induction capacitive sensor

BL-JJ-H2R

minimum order

1 piece

Quantity:

Contact Now

add to cart

Series:Proximxty Sensor
Features:square capacitive proximity switch
Mounting Type:Non contact working mode
Description:Metal proximity switch, Capacitive square proximity sensor
Model Number:BL-JJ-H2R
Type:Capacitive Proximity Sensor
Place of Origin:Guangdong, China
Brand Name:Beelee
Use:Position Sensor
Theory:Subminiature proximity switch
Output:NO+NC
Current consumption:<15mA
Leakage current:<100uA
Residual voltage:Less than 2V
Load current:<150mA
Circuit protection:reverse connection protection
Indicator light:Red LED
Connection:Cable (2m)
Ambient temperature:work and store:-25℃~+70℃
Ambient humidity:work and store:35~95%
Withstanding voltage:1000VAC,50/60Hz 1min

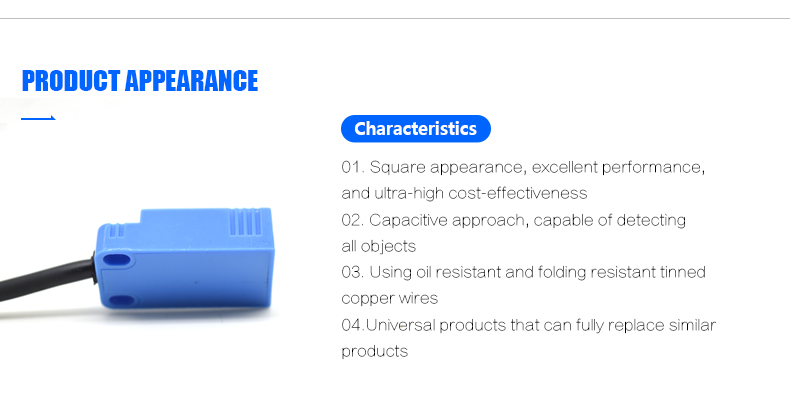

01.Square appearance, excellent performance, and ultra-high cost-effectiveness
02.Capacitive approach, capable of detecting all objects
03.Using oil resistant and folding resistant tinned copper wires
04.Universal products that can fully replace similar products

Current consumption	<15mA
Leakage current	<100uA
Residual voltage	Less than 2V(load current at 100mA &cable 2m)
Load current	<150mA
Circuit protection	reverse connection protection, short circuit protection, electrical surge absorption
Indicator light	Red LED
Connection	Cable (2m)
Ambient temperature	work and store:-25℃~+70℃
Temperature effect	Between -25℃~ +70℃,less than 15% of sensing distance at +23℃
Ambient humidity	work and store:35~95%
Withstanding voltage	1000VAC,50/60Hz 1min Between the charging unit and the housing
Insulation resistance	>50MΩ(DC500V) Between the charging unit and the housing
Ambient humidity	work and store:35~95%
Voltage effect	<3%
Anti-vibration	10 to 55 Hz with 1.5 mm double amplitude for 2 hrs each in X,Y, andZ directions
Withstanding voltage	1000VAC50/60Hz 1min Between the charging unit and the housing
Insulation resistance	>50MΩ(DC500V)Between the charging unit and the housing

Q1:How can I get more information about your product?
A1:Please send the inquiry for us, and then we can send the detail including spec and offer to you.
Q2:Do you accept OEM or ODM?
A2:Yes,But we have quantity requirements.
Q3:What is the payment way of your company?
A3:100% T/T in advance before shipping,(We can accept payment such as T/T, Paypal,Western Union,Alibaba trade assurance,Etc. )
Q4:What is the shipping way?
A4: Usually by air (DHL,UPS,TNT, FedEx etc).
Q5:How long for manufacturing once we place order?
A5: 10000pcs within 5-10days
Q6:How long for samples order?
A6: Usually within 24hour
