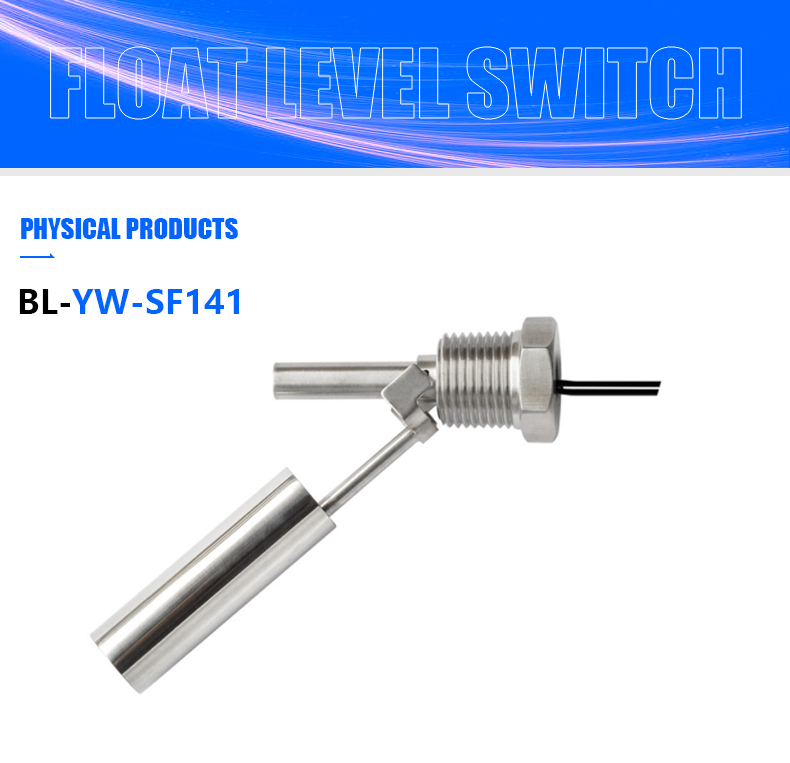

Water level sensor switch stainless Float type liquid level switches side mounted (stainless steel) for water heater, etc

• Model Number:BL-YW-SF141
• Type:Liquid Level Sensor
• Place of Origin:Guangdong, China
• Brand Name:BeeLee
• Usage:Water heater, coffee machine,
• Theory:Floating ball type magnetic liquid level switch
• Output:200~580 VDC
• Description:YW-SF141
• Maximum switch power:10W
• Maximum switch voltage (DC):200V
• Maximum switch voltage (AC):140V
• Maximum switch current (DC):500mA
• Maximum switch current (AC):500mA
• Minimum breakdown voltage:250V DC
• Maximum load current:1.0A
• Maximum contact impedance:200mΩ
• Minimum insulation resistance:108MΩ
• Range of working temperature:-40℃~+125℃

The principle of floating ball magnetic liquid level switch is equipped with a powerful constant magnetic field in the floating ball of the pole. Due to the rise or decrease of the liquid level, the magnetic field generated inside the floating ball triggers the dry reservoir in the pole to generate action. Widely used in the field of liquid level measurement, liquid level alarm and liquid level safety control.
