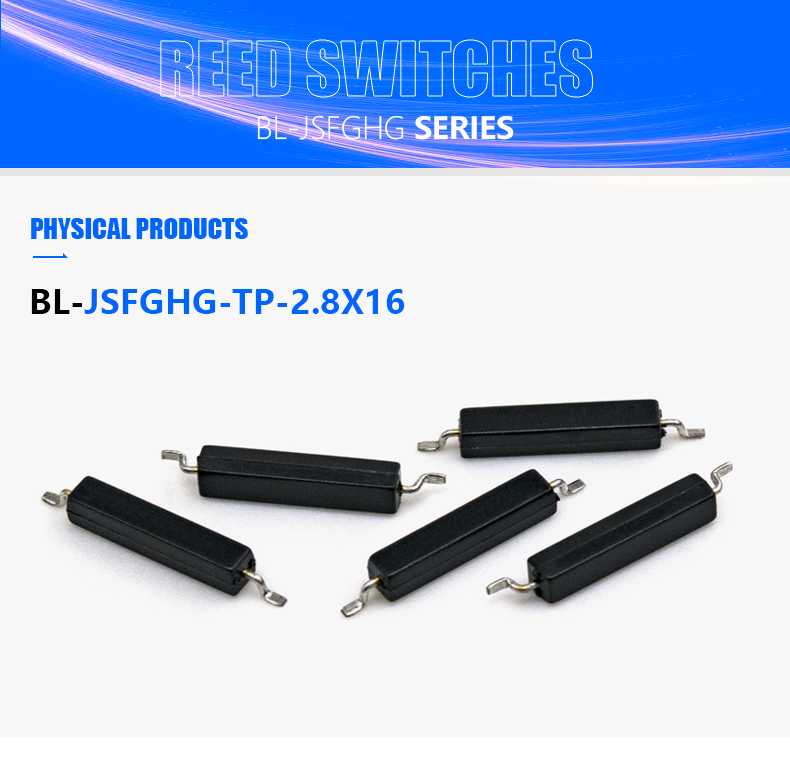

Beelee 2.8X16 리드 센서 스위치 수도 미터용 자기 원통형 밀폐형 근접 리드 스위치

BL-JSFGHG-TP2.8X16

최소 주문

1 조각

수량:

연락처 보내기

장바구니에 추가

Model Number:BL-JSFGHG-TP2.8X16
Place of Origin:Guangdong, China
Brand Name:Beelee
Contact Rating:10 W
Switching Voltage:200 V
Carry Current:0.5 A
Contact Resistancence:150 mΩ
Breakdown Voltagence:160/220 V
Insulation Resistance:10000 MΩ
Operating temperature:-40~+105℃
Switching Current:1 A

DESCRIPTION

01.Micro normally open reed switch hermetically sealed in gas fulled envelope.Single-pole, double-throw (SPST-NO) type, normally open contact.

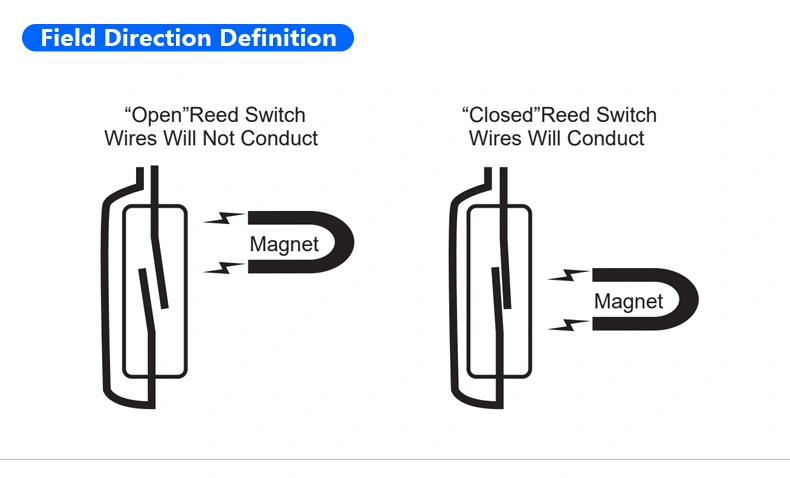

02.The switch may be actuated by an electromagnet, a permanent magnet or a combination of both.The device is intended for use in sensors, relays, pulse counters or similar devices.

DATA SCAN	Unit	BL-JSFGHG-TP-2.8x16
Contact Form		A
Contact Rating	W	10
Switching Voltage	VDC	200
Breakdown Voltage	VDC	160/220
Switching Current	A	1
Carry Current	A	0.5
Contact Resistance	mΩ	150
Insulation Resistance	MΩ	10000
Pull in Value	AT	8-15
Oprating Temperature	℃	-40~105

Q1:How can I get more information about your product?
A1:Please send the inquiry for us, and then we can send the detail including spec and offer to you.
Q2:Do you accept OEM or ODM?
A2:Yes,But we have quantity requirements.
Q3:What is the payment way of your company?
A3:100% T/T in advance before shipping,(We can accept payment such as T/T, Paypal,Western Union,Alibaba trade assurance,Etc. )
Q4:What is the shipping way?
A4: Usually by air (DHL,UPS,TNT, FedEx etc).
Q5:How long for manufacturing once we place order?
A5: 10000pcs within 5-10days
Q6:How long for samples order?
A6: Usually within 24hour
