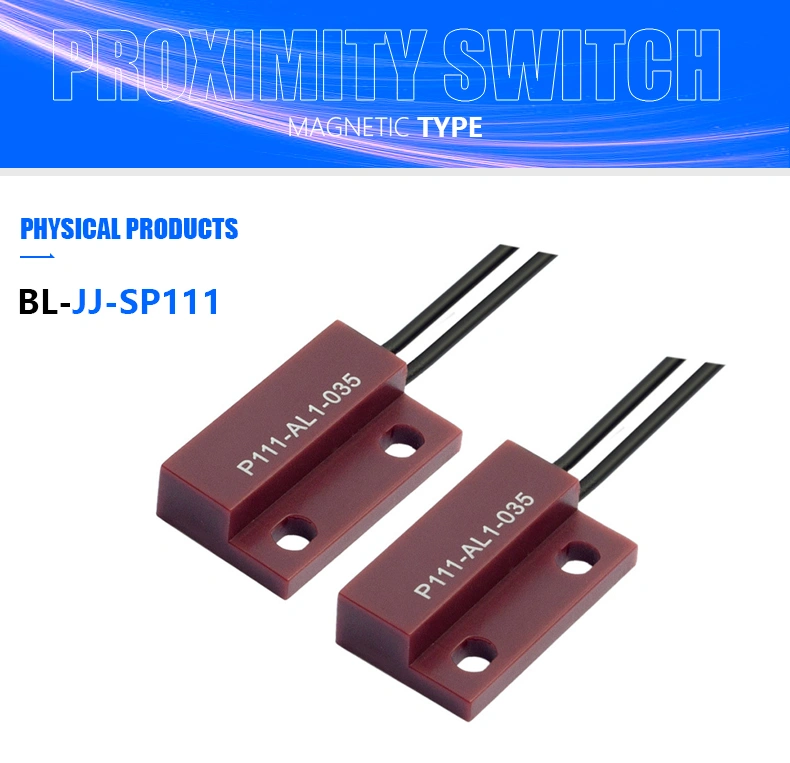

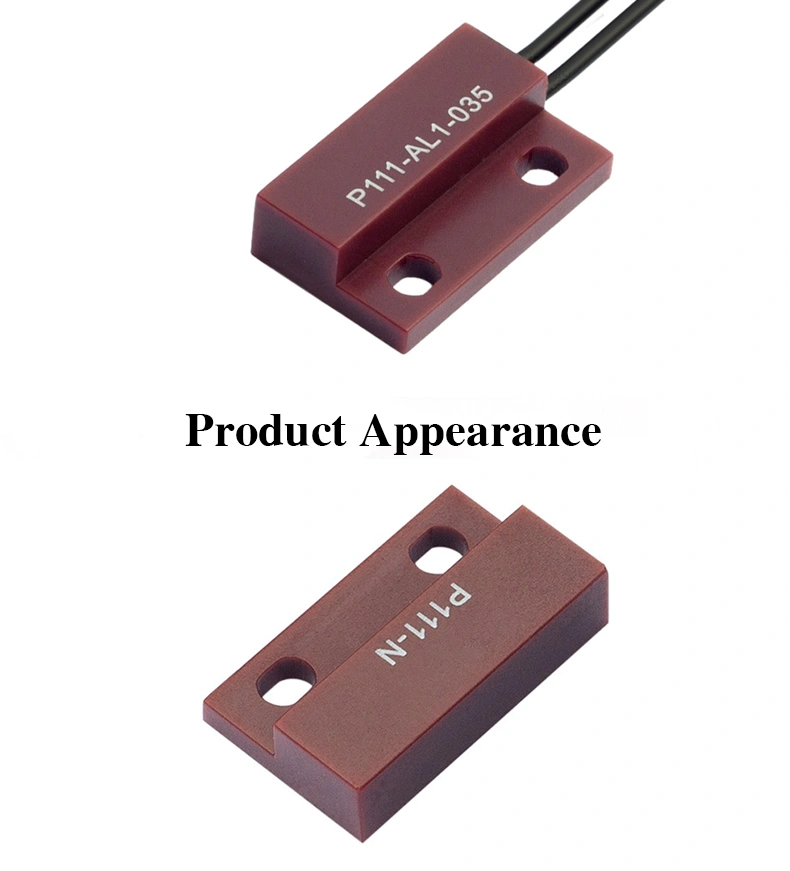

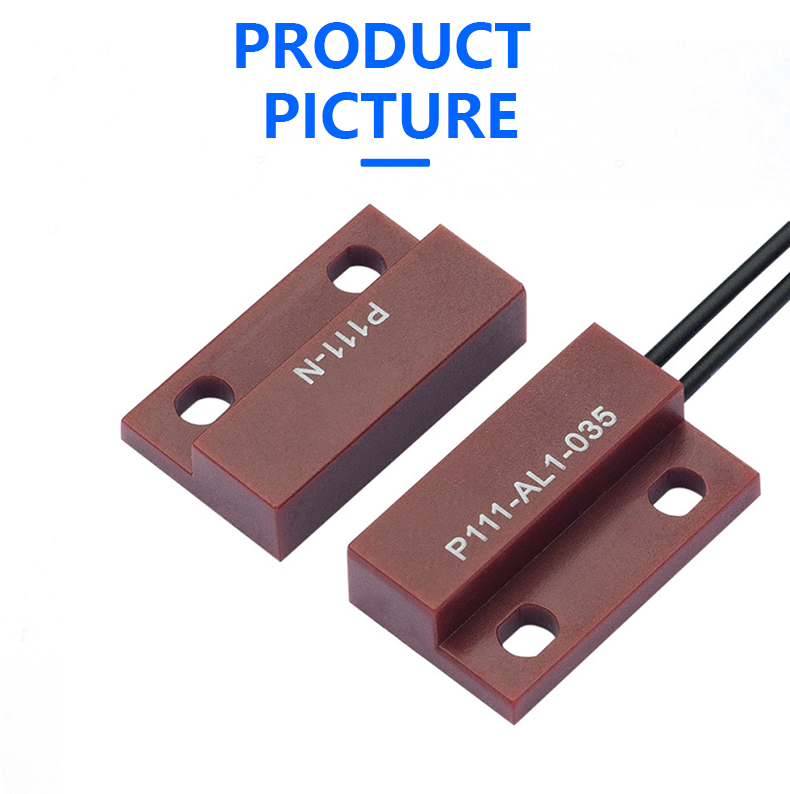

5C 센서 자기 유도 스위치 광 근접 센서 BL-JJ-SP111-AL1-035 표면 실장 게이트 자기
- Model Number:BL-JJ-SP111-AL1-035
- Type:Magnetic Proximity Sensor
- Place of Origin:Guangdong, China
- Brand Name:Beelee
- Usage:Position Sensor
- Theory:Inductance Sensor
- Output:Analog SENSOR
- Description:Inductive Sensor
- Max.switching power:10W
- Max.switching voltage(DC):180V
- Max.switching voltage(AC):130V
- Max.switching current(DC):250mA
- Max.switching current(AC):250mA

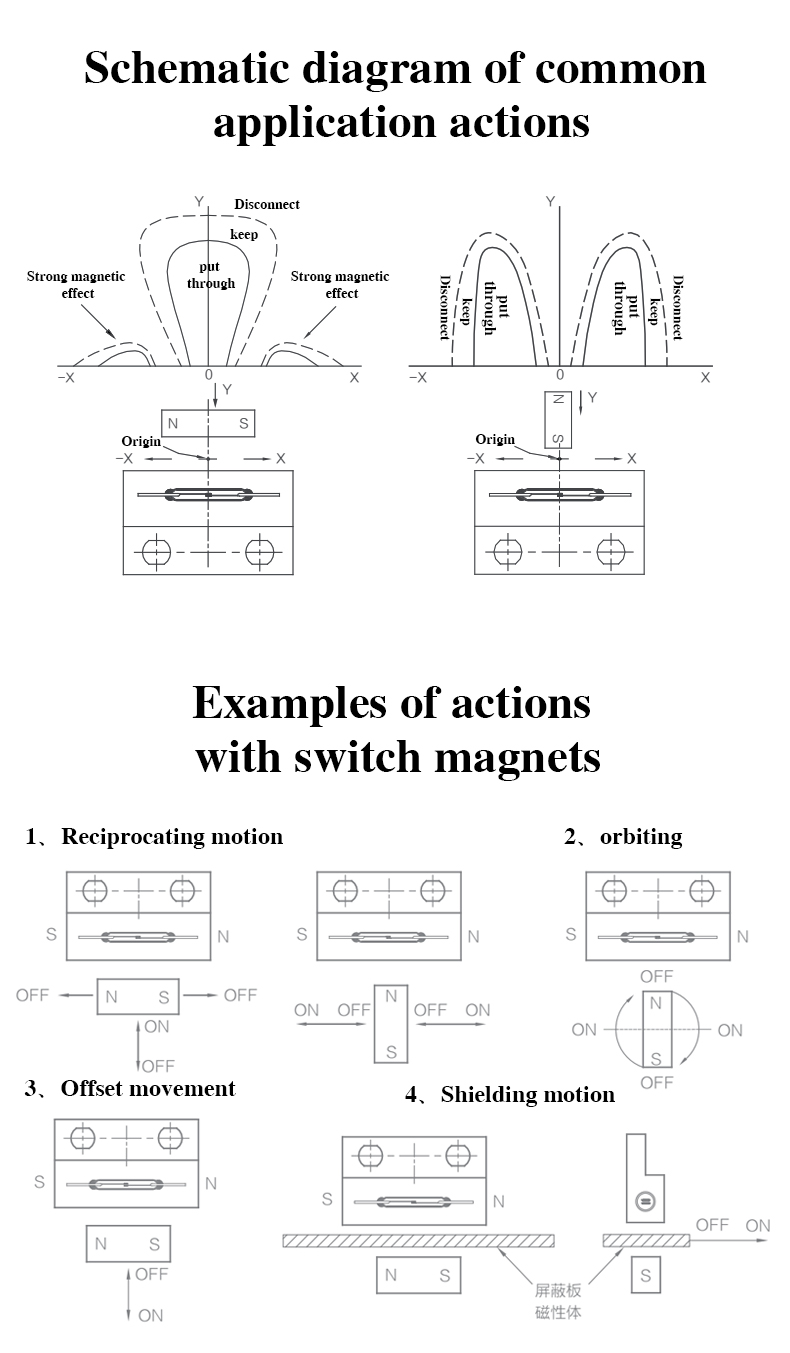

The working principle of the magnetic proximity switch is to change the position and polarity of the trigger to make the sensor A magnetic field is generated around the sensor so that the contact of the sensor operates. Adopt sealing design, with a service life of at least 1 million Second, it is easy to install and can be adjusted according to different application environments of customers.
* Product specifications can be customized according to customer requirements.
| switch type | 1 | 2 | 3 |
| Max.switching power | 10W | 10W | 5W |
| Max.switching voltage(DC) | 180V | 200V | 175V |
| Max.switching voltage(AC) | 130V | 265V | 125V |
| Max.switching current(DC) | 250mA | 500mA | 400mA |
| Max.switching current(AC) | 250mA | 500mA | 280mA |
| Min.breakdown voltage | 180V DC | 450V DC | 200V DC |
| Max.load current | 1.5A | 1.5A | 0.5A |
| Max.contact impedance | 100mΩ | 100mΩ | 120mΩ |
| Min.insulation resistance | 106MΩ | 106MΩ | 106MΩ |
| Operating temperature range | -40℃~+80℃ | -20℃~+80℃ | -40℃~+80℃ |
| Note: the above parameters can be formulated according to the specific needs of customers | |||
Q1:How can I get more information about your product?
A1:Please send the inquiry for us, and then we can send the detail including spec and offer to you.
Q2:Do you accept OEM or ODM?
A2:Yes,But we have quantity requirements.
Q3:What is the payment way of your company?
A4:100% T/T in advance before shipping,(We can accept payment such as T/T, Paypal,Western Union,Alibaba trade assurance,Etc. )
Q4:What is the shipping way?
A5: Usually by air (DHL,UPS,TNT, FedEx etc).
Q5:How long for manufacturing once we place order?
A7: I0000pcs within 5-10days
Q6:How long for samples order?
A7: Usually within 24hour
