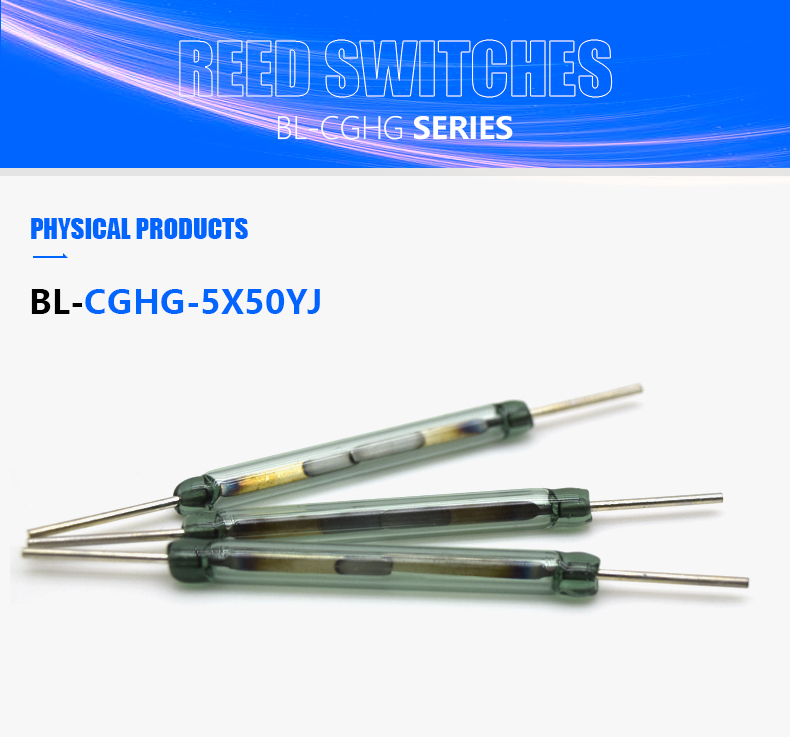

Beelee 5X50 평상시 열림 자기 리드 스위치 5A 250VDC 유리 리드 스위치

BL-CGHG-5X50

최소 주문

1 조각

수량:

연락처 보내기

장바구니에 추가

Place of Origin:Guangdong, China
Brand Name:BeeLee
Model Number:BL-CGHG-5X50
Type:SWITCHES
Number of Pole:3
Rated Current:5.0A
Rated Voltage:250
Contact Form:A
Contact Rating:250 W
Max.Switching Voltage:250 VDC
Breakdown Voltage:700 VDC
Max.Switching Current:5 A
Max.Intial Contact Resistance:150 mΩ
Operating time:2s
Resonant Frequency:700 Hz
Pull in Value:50-90 AT
Contact Capacitance:1 PF

DESCRIPTION

01.Micronormally open reed switch hermetically sealed in gas fulled envelope.Single-pole, double-throw (SPST-NO) type, normally open and normally closed contact.

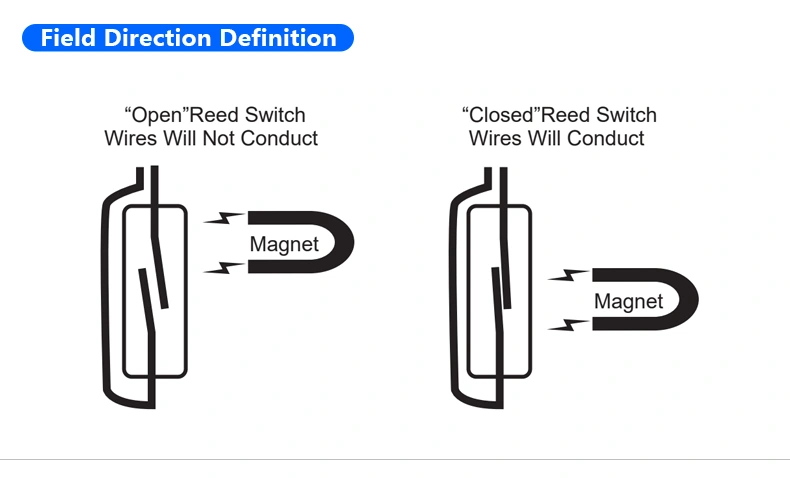

02.The switch may be actuated by an electromagnet, a permanent magnet or a combination of both.The device is intended for use in sensors, relays, pulse counters or similar devices.

parameter	Unit	BL-CGHG-5X50YJ
Contact Form		A
Contact Rating	W	250
Max.Switching Voltage	VDC	250
Breakdown Voltage	VDC	700
Max.Switching Current	A	5
Max.Carry Current	A
Max.Intial Contact Resistance	MΩ	150
Min.Insulation Resistance	Ω	10⁹
Operating time	ms	2
Bounce time	ms	2
Release time	ms	1
Resonant Frequency	Hz	700
Operating Frequency	Hz
Pull in Value	AT	50-90
Drop Out Value	FT
Contact Capacitance	pF	1
Electrcal Life (Resistive Loads)		1*10⁵(250VDC,1A)
Test Coll Number of turns	Ω	5000
Resistance	Ω		335
