proximity sensor

Супер мини-металлоискатель, водонепроницаемый индуктивный датчик приближения, переключатель для промышленных металлоискателей, латунная теория, источник вывода

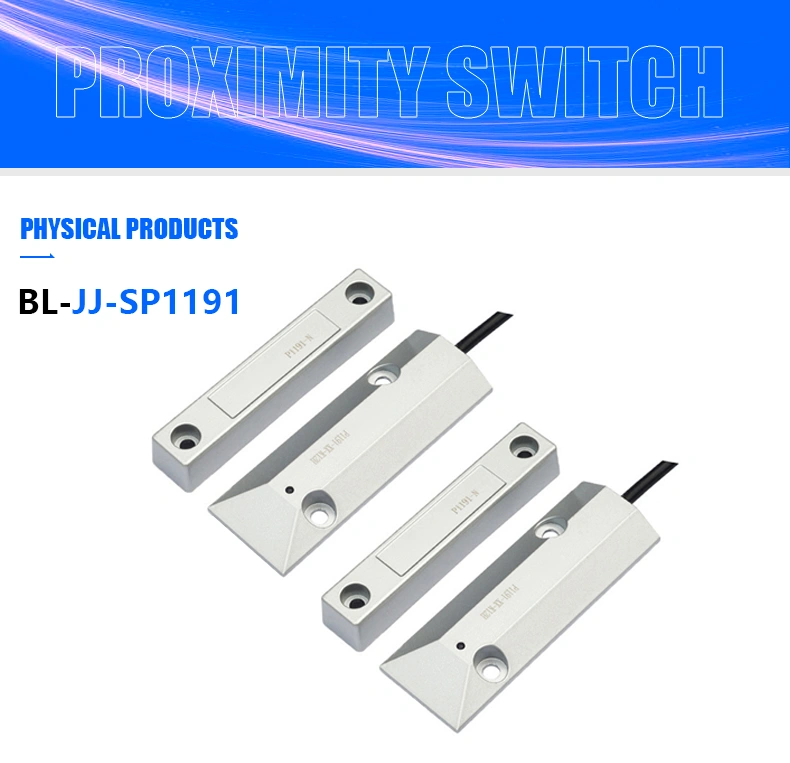

BL-JJ-SP1191
минимальный заказ
1 кусок
количество:
отправить контакт
добавить в корзину
Все продукты
  • Series:Proximity Sensor
  • Mounting Type:Contact Us
  • Description:Magnetic Proximity Sensor, Inductive Sensor
  • Model Number:BL-JJ-SP1191
  • Type:Magnetic Proximity Sensor
  • Place of Origin:Guangdong, China
  • Brand Name:Beelee
  • Usage:Position Sensor
  • Theory:Inductance Sensor
  • Output:Analog SENSOR
  • Supply voltage:12-30 VDC
  • Trigger mode:Magnet trigger
  • Trigger distance:≤ 15 mm (face-to-face trigger)
  • temperature range:-30~ +120 ℃
  • Output mode::No trigger, output 5V
  • Action distance:≤ 100 mm (after face-to-face triggering Parallel movement)


Sp1191 series proximity switches generate a magnetic field around the sensor through the change of the position and polarity of the trigger to make the contact of the sensor act. The seal design life is at least 1 million times, and the installation is convenient. It can be adjusted according to different application environments of customers.


* Product specifications can be customized according to customer requirements.





























































































 SP1191-ASP1191-BSP1191-C
contact arrangement——Type a contact
(normally open type)		Type a contact
(normally open type)
Trigger modeMagnet triggerMagnet trigger——
Trigger distance≤ 15 mm (face-to-face trigger)≥20 mm——
Contact power——12-24 VDC70 W-max
Switching voltage————DC 200AC 250 V-max
breakdown voltage————DC 400 V-min
Switching current————1.0A-max
load current————1.75A-max
Contact impedance————1.0Ω-max
Insulation impedance————10Ω-min
Contact capacity————0.3Pf-typ
temperature range-30~ +120 ℃-25~80 ℃-25℃~+80℃

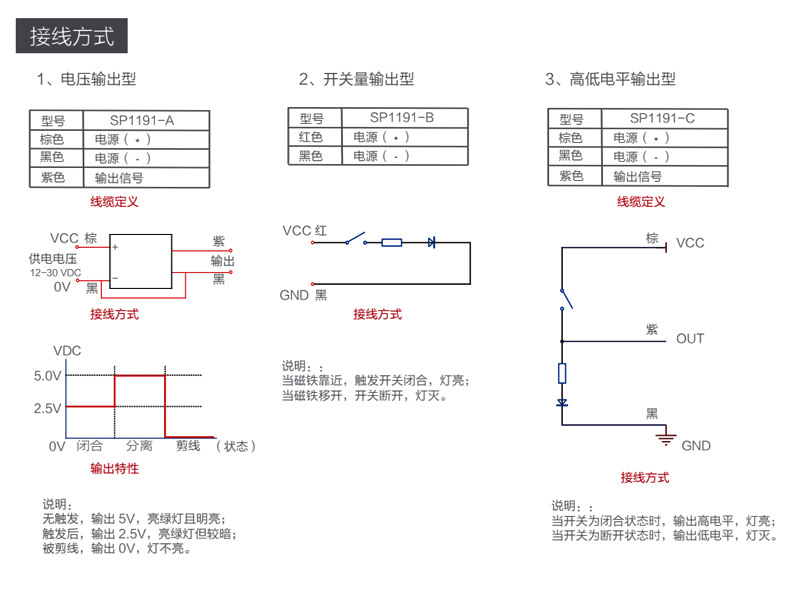

Output mode:No trigger, output 5V, green light bright
When triggered, the output is 2.5V, and the green light is dark
Cut wire, output 0V, light off		Switching value
On trigger
No trigger, disconnected		High and low level output
Trigger (when closed):
High level light is on
Leave (when on):
The low level light is off
