Beelee 1V 6V датчик ударной вибрации SMD датчик удара для игрушки

• Certification:ROHS
• Whether the smart:Yes
• Place of Origin:Guangdong, China
• Brand Name:GBelee

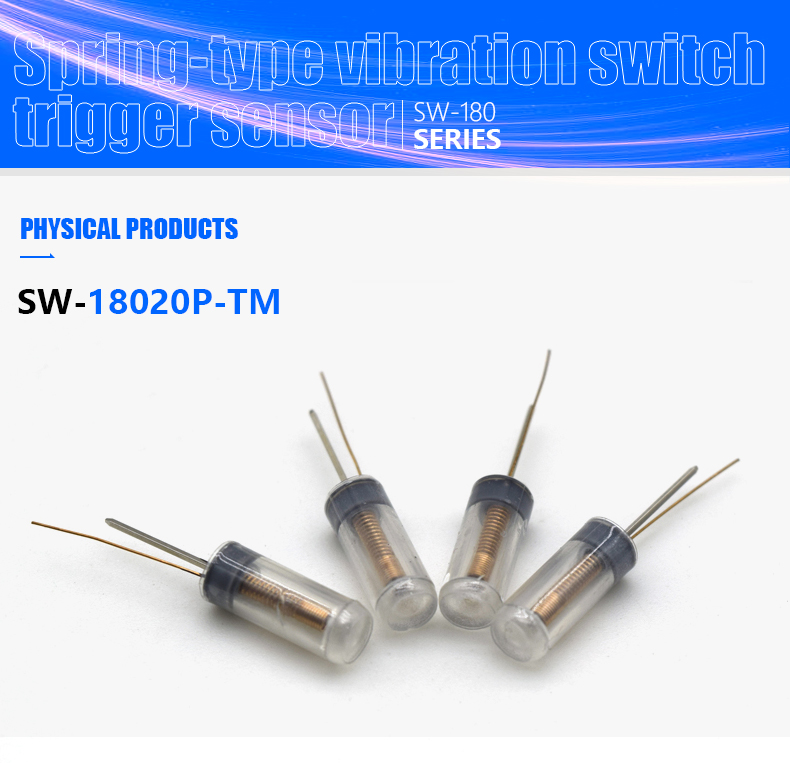

• Model Number:SW-18020P
• Max. Current:2uA-10mA
• Max. Voltage:1-6V
• Max. Current::2uA-10mA
• Max. Voltage::1-6V
• Cond uctive time:About 2ms
• Cond uction mode:Discontinuous conduction mode
• Open resistance:>10MΩ
• Pull force of terminal:300gf for 1 minute
• Salt mist test:95% RH, 40°C for 24 hours
• Operatin g life:200,000 times
• Operating temperature:-25℃ to 85℃
• Storage Temperature:-10℃ to 40℃

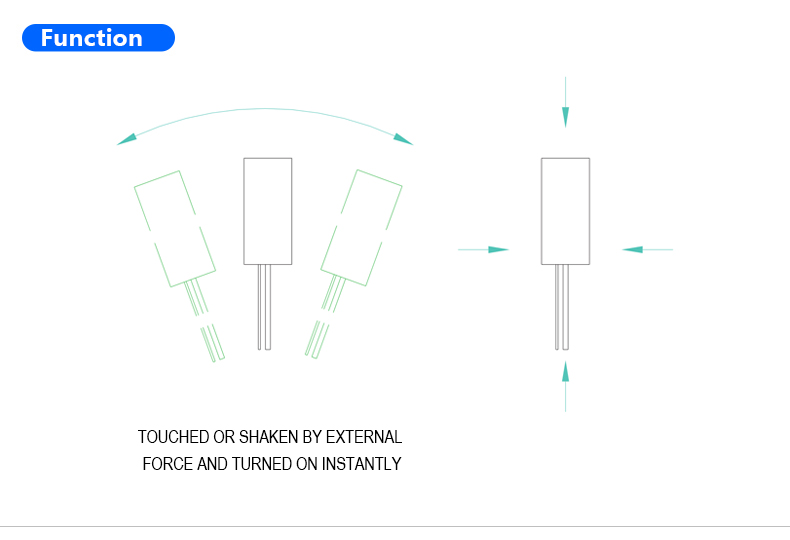

01.This product is spring type, no directional vibration sensor trigger switch, any angle can trigger.

02.Switch is open circuit OFF-state, when it is static, when external force to touch
and corresponding vibration, or movement speed achieve adequate (partial) centrifugal force,
conductive pick feet will produce instant conductivity is instant ON-state,
when external force disappear, switch back to open circuit OFF-state.

03.Switch have the identification P at the bottom, for completely airtight;
