Датчик угла наклона с односторонним переключателем наклона шарика на 45 градусов для печатной платы трекера

• Model Number:BL 3300-45
• Place of Origin:Guangdong, China
• Brand Name:Beelee
• Voltage:1.5-12V
• Current:<20mA
• Conductive time:about 2ms
• Closed resistance:<10 ohm
• Open resistance:>10M ohm
• Copper cap:Brass ,silver-plated
• Plastic:Temperature resistance nylon
• Ball:Stainless steel, silver-plated
• Guide cup:Brass ,silver-plated

When the product upright is in OFF-state, as the products tilt to any direction and exceed 25degrees, switch stay in a disconnect ON-state.

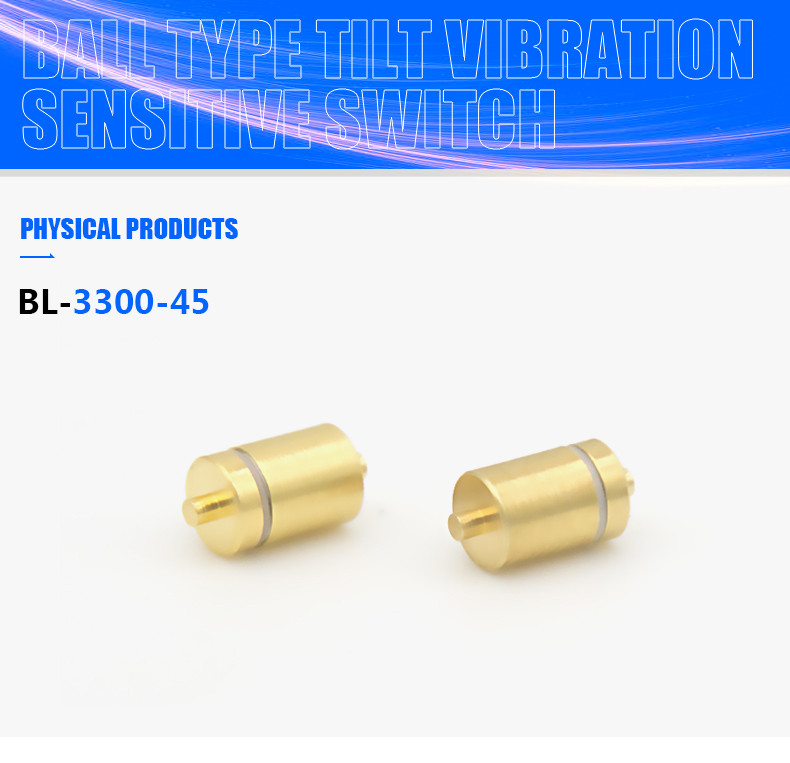

01.BL-3300 is Ball type tilt vibration sensitive switch.
02.When the product upright is in OFF-state, as the products tilt to any direction and exceed 25±10 degrees, switch stay in a disconnect ON-state. 03.Product completely airtight, waterproof, dustproof.
04.In the normal, switch life can reach 100,000 cycles lifespan.
05.Material compliant with ROSH directive, replace the mercury switch.
06.Simple for switch signals and circuit , and economic price.

Q1:How can I get more information about your product?
A1:Please send the inquiry for us, and then we can send the detail including spec and offer to you.
Q2:Do you accept OEM or ODM?
A2:Yes,But we have quantity requirements.
Q3:What is the payment way of your company?
A4:100% T/T in advance before shipping,(We can accept payment such as T/T, Paypal,Western Union,Alibaba trade assurance,Etc. )
Q4:What is the shipping way?
A5: Usually by air (DHL,UPS,TNT, FedEx etc).
Q5:How long for manufacturing once we place order?
A7: I0000pcs within 5-10days
Q6:How long for samples order?
A7: Usually within 24hour
