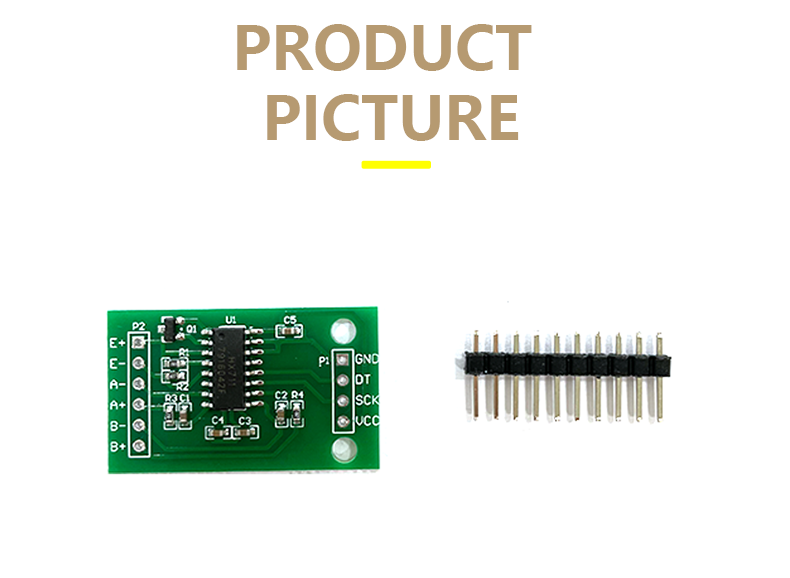

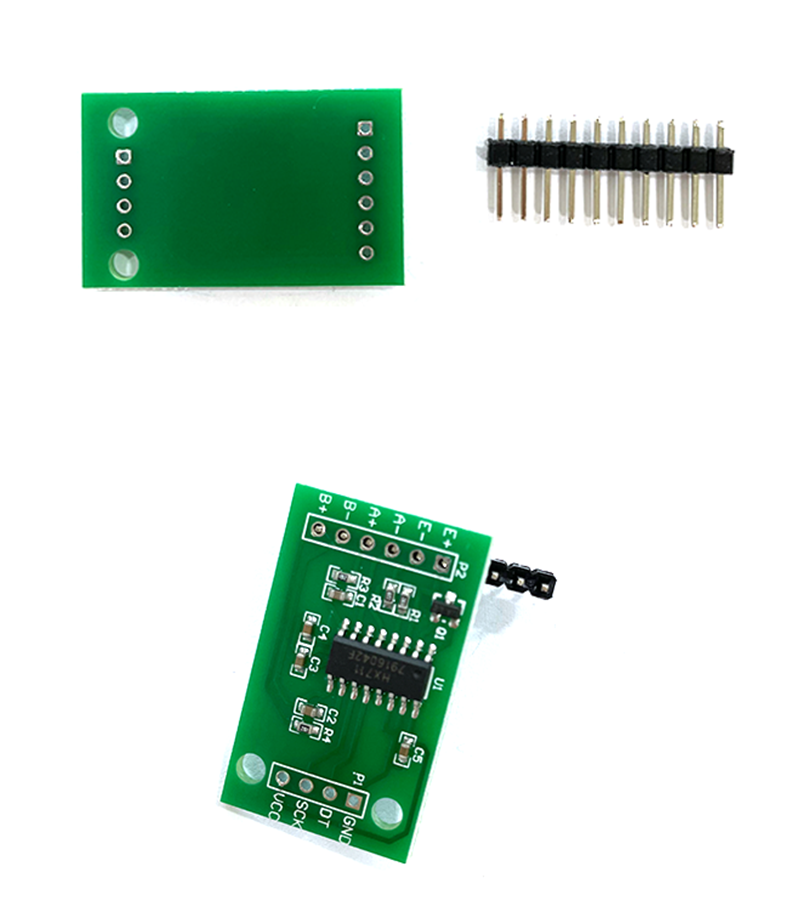

XST-MZ-029 HX711 Weighing Pressure Sensor Module

Weight sensor parameter

Technical parameter table:

Rap (kg): 3, 15

Comprehensive error (%F.S): 0.05

The rated output temperature drifting (%f.s/10 ℃):≤0.15

Sensitivity (MV/V): 1.0 ±0.1

Zero output (MV/V): ±0.1

Non -linear (%F.S): 0.05

Input resistance (ω): 1000 ±50

Repeatability (%F.S): 0.05

Output resistance (ω): 1000 ±50

Hall behind (%F.S): 0.05

Insulation resistance (mΩ):≥2000 (100VDC)

Creep (%f.S/3min): 0.05

Recommended incentive voltage (V): 5 ~10

Zero Drift (%F.S/Imin): 0.05

Work temperature range (℃): -10 ~+50

Zero temperature drift (%F.S/10 °C): 0.2

Overload capacity (%F.S): 150
