bbq temperature probe

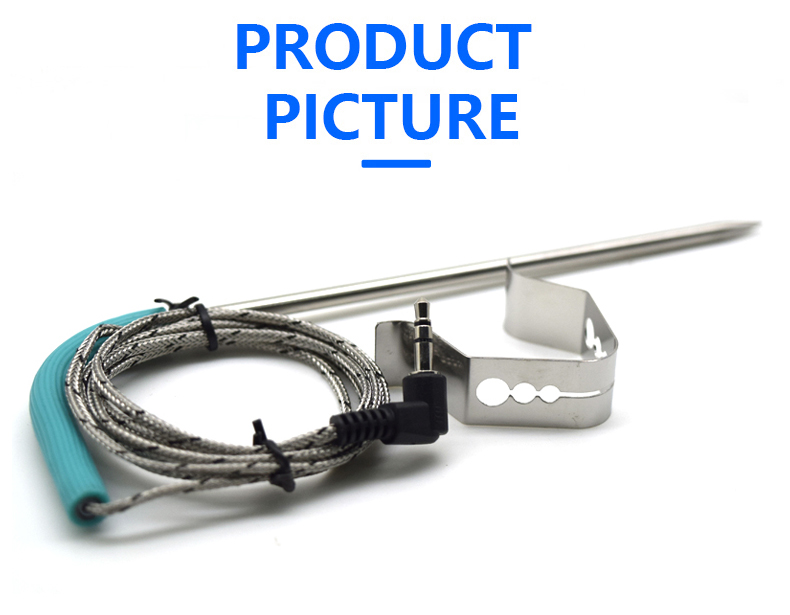

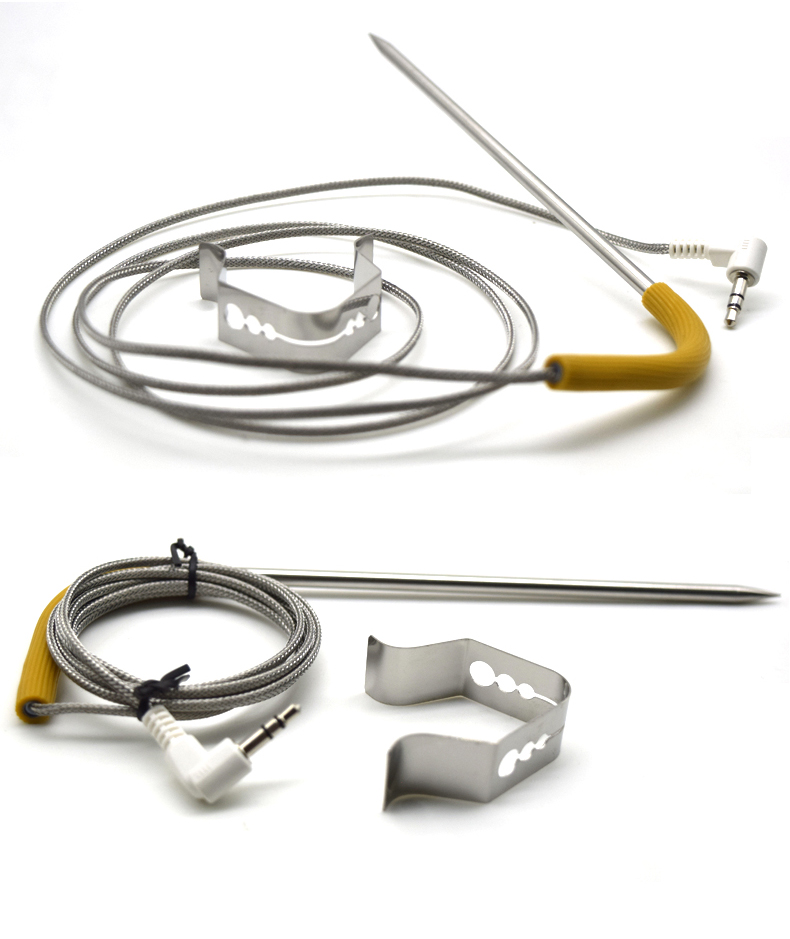

Waterproof Kitchen Meat Thermometer BBQ Temperature Probe 304 Probe Food Temperature Sensor

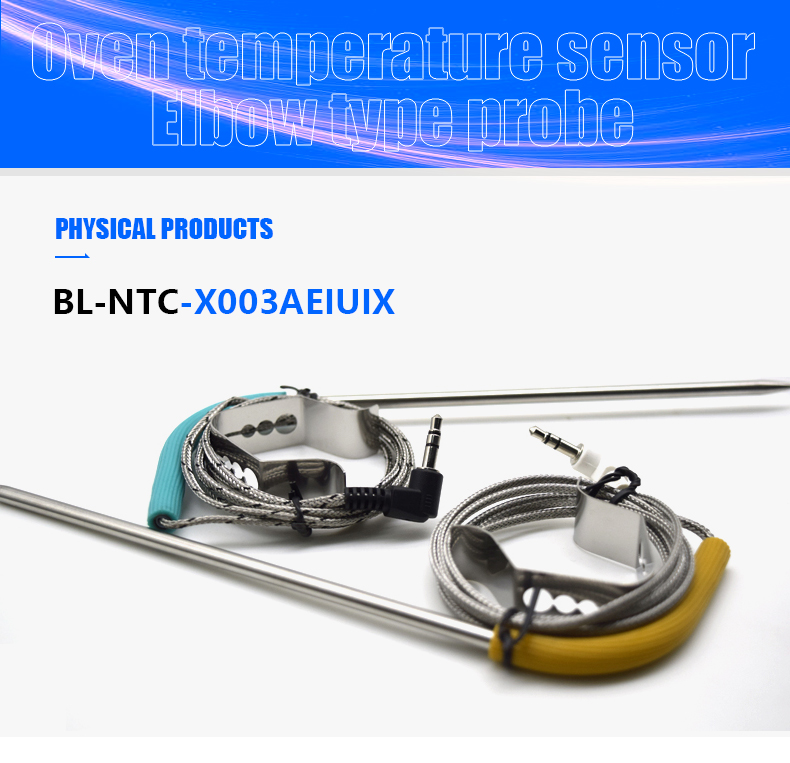

BL-NTC-X003AEIUIX
minimum order
1 piece
Quantity:
Contact Now
add to cart

BL-NTC-X003AEIUIX is a waterproof NTC temperature probe: the thermistor sits inside a food-grade 304 stainless-steel stem, wired to a lead and connector, so it can be pushed straight into meat, liquid or a process fitting. Its resistance falls as temperature rises, and a simple voltage divider or bridge turns that into an analogue signal a control board can already measure — no signal-conditioning IC is required. The part is available with B-value options from 3270 K to 4650 K and ten R25 values, so the temperature curve can be matched to an existing thermometer or controller rather than forcing a redesign around the sensor.

Key Specifications

  • Sensor type: NTC thermistor on a food-grade 304 stainless-steel probe
  • Resistance at 25 °C (R25): 1 kΩ, 2 kΩ, 4.7 kΩ, 5 kΩ, 10 kΩ, 15 kΩ, 20 kΩ, 30 kΩ, 50 kΩ or 100 kΩ
  • R25 tolerance: ±1 % or ±2 %
  • B-value options: 3270 K, 3380 K, 3470 K, 3550 K, 3700 K, 3950 K, 4200 K, 4650 K; B-value tolerance ±1 %
  • Operating temperature: up to 100 °C
  • Output: resistance change, read as an analogue voltage

Key Features

  • Eight B-value options and ten R25 values, so an existing measurement curve can be matched without changing the electronics
  • ±1 % B-value tolerance and ±1 %/±2 % R25 tolerance, tight enough for interchangeable probes without per-unit calibration
  • Sealed 304 stainless-steel probe for direct contact with food and liquids
  • Rated for operating temperatures up to 100 °C
  • Two-wire passive element — no supply rail and no calibration IC on the sensor side
  • Lead length and connector configured to the customer's assembly

Typical Applications

  • Meat, oil and food temperature probes for BBQ, kitchen and catering thermometers
  • Temperature monitoring in household and small appliances
  • Liquid temperature sensing, the sealed 304 stem being the wetted surface
  • Over-temperature protection in heaters and power equipment
  • OEM temperature probes built to a customer's cable, connector and housing drawing

Why Buy from GBeelee

GBeelee is the export brand of Dongguan Bailing Electronics, a national high-tech enterprise that has manufactured sensors for more than 18 years and serves over 20,000 customers. Production is RoHS compliant, and OEM/ODM support is available for custom leads, housings and sensitivity. Temperature sensors are produced in-house, so the B value, lead length and housing can be specified together instead of being sourced from separate suppliers.

Related product lines:NTC thermistor sensors

FAQ

Which B value should I choose?
It depends on the meter or control board the sensor connects to. Send us the target resistance-temperature curve and the working range, and we will match one of the 3270–4650 K options.

What is the maximum operating temperature?
100 °C for this model. If your process runs hotter, tell us the target range and we will propose a higher-temperature element from the wider NTC range.

Can the cable and connector be customised?
Yes. Lead length, wire gauge and terminations are built to your assembly drawing as part of normal OEM production.

  • Series:Contact Us
  • Features:Contact Us
  • Mounting Type:Temperature Sensor
  • Description:Bbq Temperature Probe, Beelee Temperature Sensor
  • Manufacturing Date Code:Contact Us
  • Model Number:BL-NTC-X003AEIUIX
  • Type:Temperature Sensor
  • Place of Origin:Guangdong, China
  • Brand Name:Beelee
  • Usage:Electric Boiler Heater
  • Theory:Contact Us
  • Output:Contact Us
  • sensor type:Temperature Sensor
  • B value:3270K,3380K,3470K,3550K,3700K,3950K,4200K,4650K
  • R value:1K,2K,4.7K,5K,10K,15K,20K,30K,50K,100KΩ
  • R25 accuracy:±1%,±2%
  • Operating temperature:100 (℃)
  • B value accuracy:±1%




The definition and principle of NTC temperature sensor: It is a thermistor and probe, and its principle is that the resistance value rapidly decreases as the temperature increases. It is usually composed of 2 or 3 types of metal oxides, mixed in a fluid like clay, and forged into a dense sintered ceramic in a high-temperature furnace. The actual dimensions are very flexible, and they can be as small as 0.010 inches or very small diameters.


Characteristics of NTC temperature sensor:
01.High sensitivity and fast response speed
02.High accuracy of resistance and B values, good consistency and interchangeability
03.Adopting a double-layer encapsulation process, it has good insulation and sealing properties, mechanical collision resistance, and bending resistance
04.The structure is simple and flexible, and can be customized according to different customer design requirements




Q1:How can I get more information about your product?
A1:Please send the inquiry for us, and then we can send the detail including spec and offer to you.
Q2:Do you accept OEM or ODM?
A2:Yes,But we have quantity requirements.
Q3:What is the payment way of your company?
A3:100% T/T in advance before shipping,(We can accept payment such as T/T, Paypal,Western Union,Alibaba trade assurance,Etc. )
Q4:What is the shipping way?
A4: Usually by air (DHL,UPS,TNT, FedEx etc).
Q5:How long for manufacturing once we place order?
A5: 10000pcs within 5-10days
Q6:How long for samples order?
A6: Usually within 24hour
