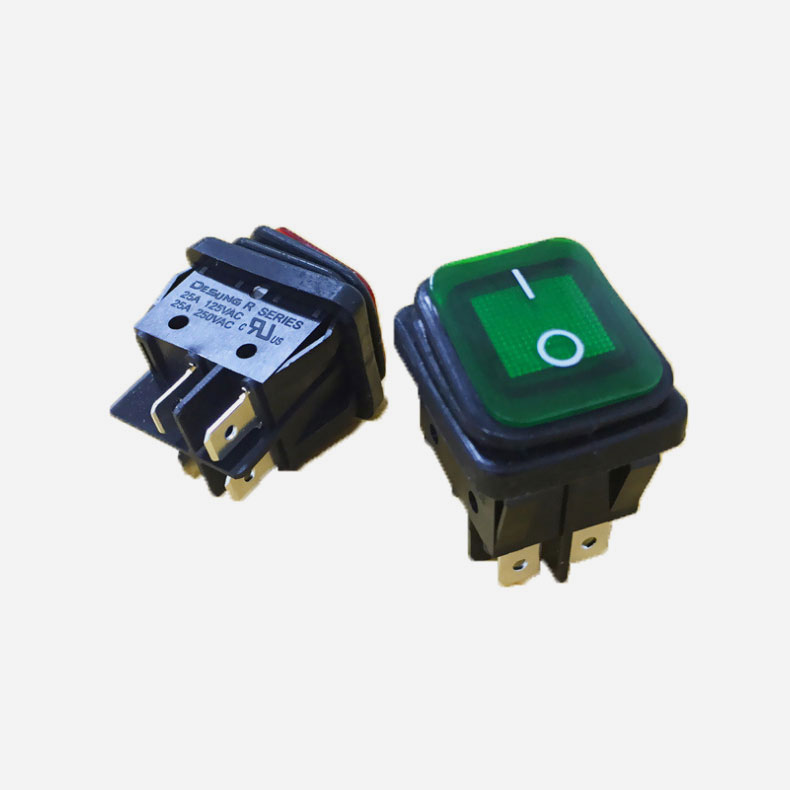

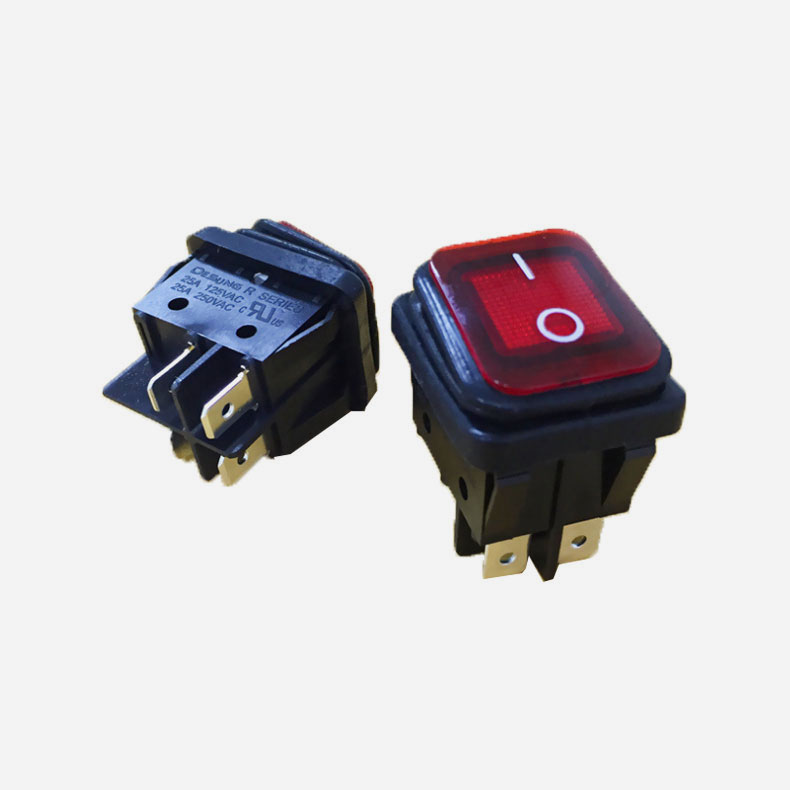

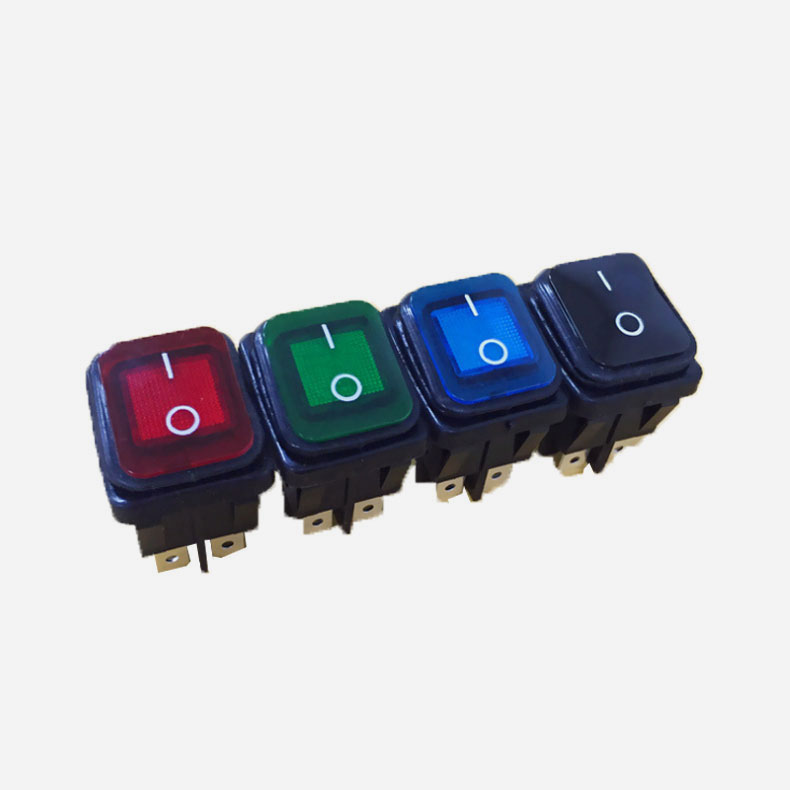

ROSH CE REACH PLASTIC Rocker switches

R-6-210-P5L-XX-4
Quantity:
Contact Now
add to cart
  • BL-R-6-210-P5L-XX-4 Rocker switches electrical Round Small rocker switch ON OFF 4pins are used in motorcycles, ion TVs, computer speakers with High Lifespan and waterproof, dustproof
  • Place of Origin:CN;GUA
  • Brand Name:BeeLee
  • Model Number:R-6-210-P5L-XX-4
  • Max. Current:6A 125VAC(UL CUL)
  • Max. Voltage:12v
  • Certificate:CE
  • Material:Brass/Aluminum/SS
  • Product name:push button switch
  • Contact Resistance:50mΩ Max
  • Insulation Resistance:DC 500V 100MΩ MIN
  • Electrical Life:10000 Cycles
  • Operating Pressure:5.5N±1.5N
  • Safety Approval:ROHS CQC CE ROHS


Rating6A 125VAC(UL CUL)
3A 250VAC (UL CUL VDE CE CQC)
Contact Resistance50mΩ Max
Insulation ResistanceDC 500V 100MΩ MIN
Dielectric StrengthAC1500V 1 MINUTE
Electrical Life10000 Cycles
Operating Temperature0-85
Safety ApprovalROHS CQC CE ROHS
