Proximity switch Object detection module automatic detection infrared induction switch distance sensor for Disinfection machine
- Series:Proximxty Sensor
- Features:Plastic Proximty Switch
- Mounting Type:Contact Us
- Description:wired roller shutter door magnetic detector, Inductive Sensor
- Manufacturing Date Code:Contact Us
- Model Number:BL-JJ-SM-PD-01
- Type:Magnetic Proximity Sensor
- Place of Origin:Guangdong, China
- Brand Name:Beelee
- Use:Position Sensor
- Theory:Inductance Sensor
- Output:Analog SENSOR
- working voltage:3.3-5.0V
- Water output voltage:<15mA
- Power consumption:<60mW
- Detection distance:0-20cm
- working temperature:-20℃~80℃

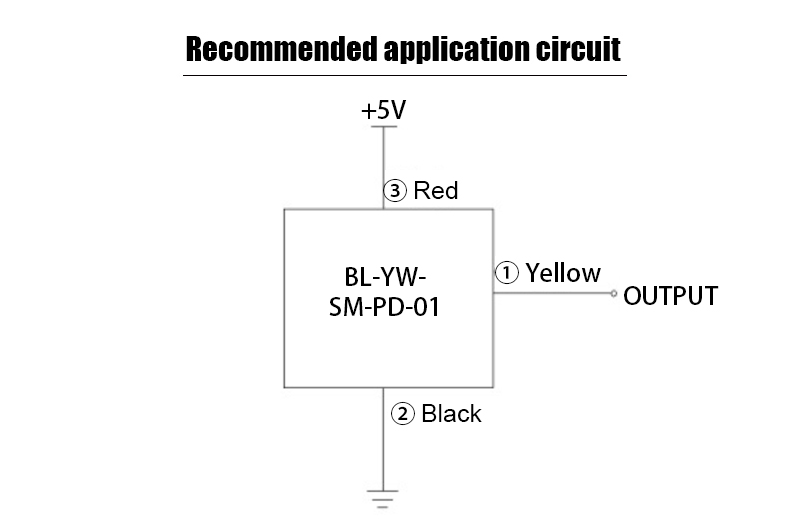

Connect the sensor as described above, and the signal end will output a voltage signal that is consistent with the water level condition. This signal is used as a liquid level control signal to connect to the MCU (microcontroller) I/0 port. When the liquid level exceeds the critical liquid level and submerges the sensor body, the signal output is low voltage. When the liquid level is below the critical liquid level and the sensor body is exposed, the signal output is high voltage.
| parameter | Symbol | Conditions | Typ |
| working voltage | VDD | 3.3-5.0V | |
| Working current | IOP | VDD=5.0V,Ta=25℃ | <15mA |
| Power consumption | Pd | VDD=5.0V,Ta=25℃ | <60mW |
| Detection distance | L | VDD=5.0V,Ta=25℃ | 0-20cm |
| working temperature | Topr | -20℃~80℃ | |
| Storage temperature | Tstg | -25℃~85℃ | |
| working life | WL | 30000H | |
| Output method | OUT | High and low levels |
Q1:How can I get more information about your product?
A1:Please send the inquiry for us, and then we can send the detail including spec and offer to you.
Q2:Do you accept OEM or ODM?
A2:Yes,But we have quantity requirements.
Q3:What is the payment way of your company?
A4:100% T/T in advance before shipping,(We can accept payment such as T/T, Paypal,Western Union,Alibaba trade assurance,Etc. )
Q4:What is the shipping way?
A5: Usually by air (DHL,UPS,TNT, FedEx etc).
Q5:How long for manufacturing once we place order?
A7: I0000pcs within 5-10days
Q6:How long for samples order?
A7: Usually within 24hour
