New original GBeelee BL-JJ-H2N-H2NA non-screen shield type M12 inductive proximity sensor switch

BL-JJ-H2N-H2NA

minimum order

1 piece

Quantity:

Contact Now

add to cart

Series:Proximxty Sensor
Features:No standby power consumption
Mounting Type:Non contact working mode
Description:Metal proximity switch, Inductive Sensor

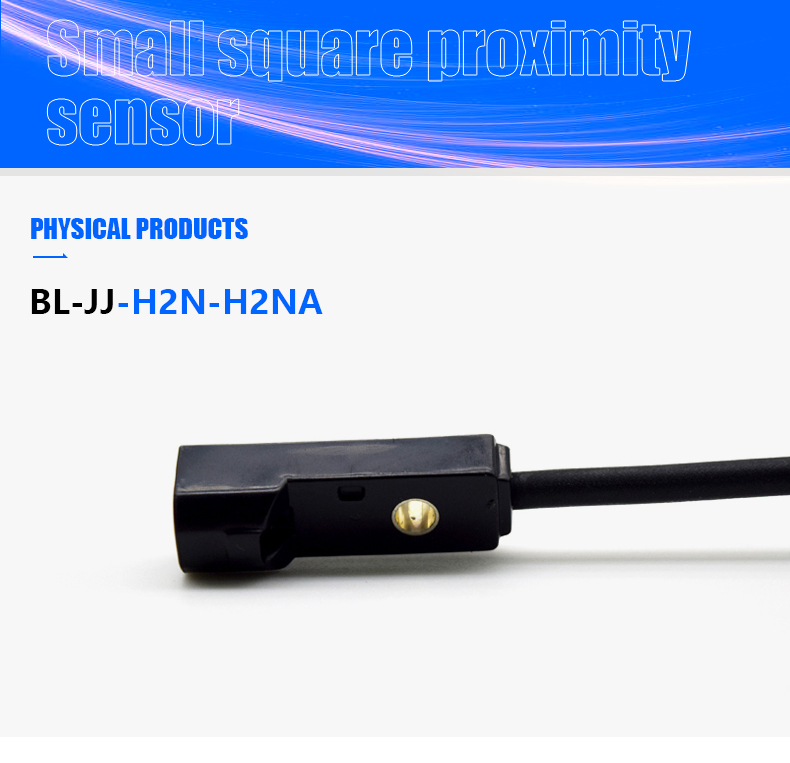

Model Number:BL-JJ-H2N-H2NA
Type:Magnetic Proximity Sensor
Place of Origin:Guangdong, China
Brand Name:Beelee
Use:Position Sensor
Theory:Inductance Sensor
Output:Analog SENSOR
Sensing distance:4mm+10%
Set distance:0-3.2mm
Response frequency:500Hz
Standard target:15*15*1t(Q235A)
Hysteresis error:1%~15% of sensing distance
Repeat accuracy:Less than 3% of sensing distance
Power supply:DC12~24Vimpulse p-p)less than 10%(DC10-30V)
Current consumption:<15mA
Leakage current:< 100uA
Load current:< 100mA

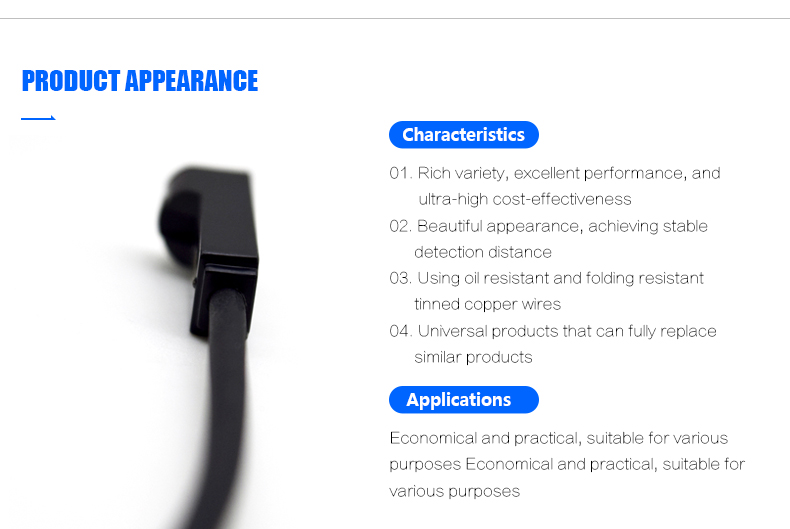

01. Rich variety, excellent performance, andultra-high cost-effectiveness
02.Beautiful appearance, achieving stabledetection distance
03. Using oil resistant and folding resistanttinned copper wires
04. Universal products that can fully replacesimilar products

Output type	N: NPN，NA: NPN-NO，NB: NPN-NC， P:PNP，PA: PNP-NO，PB: PNP-NC
Residual voltage	Less than 2V( load current at 100mA &cable 2m)
Circuit protection	reverse connection protectin,short circuit protection, electrical surge absorption
Indicator light	Red LED

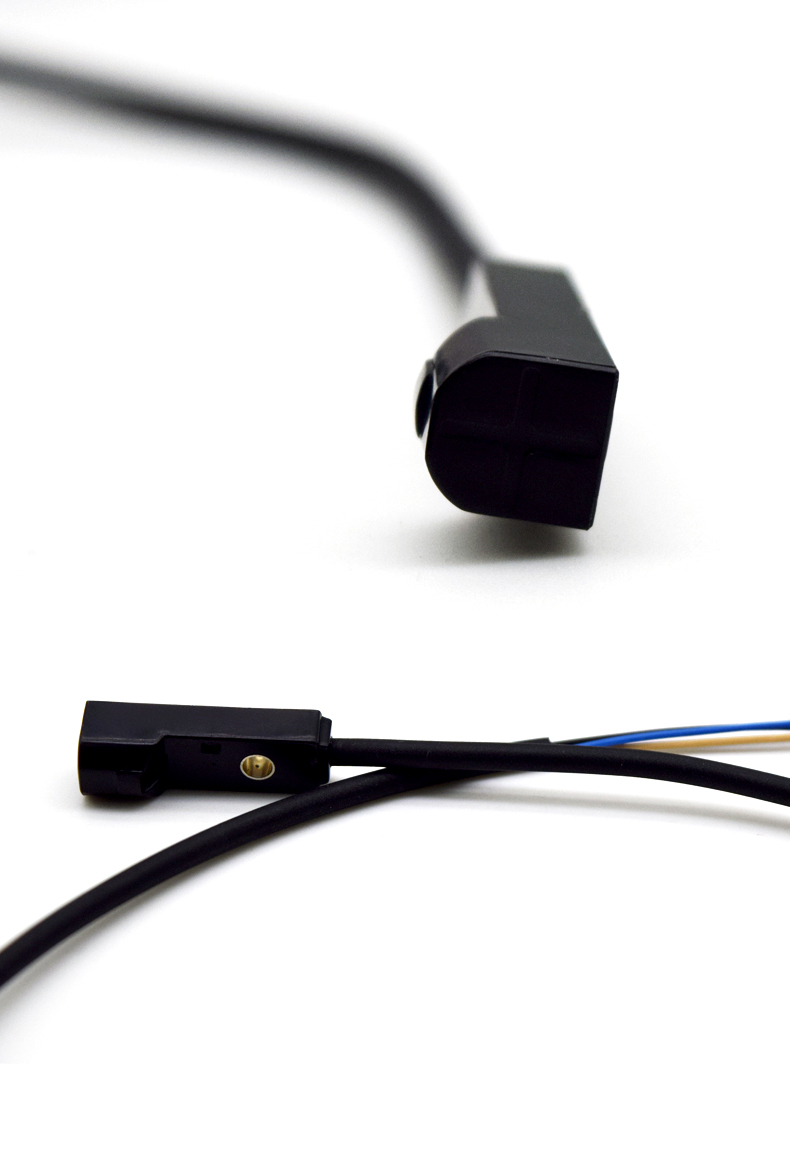

Connection	Cable (2m)
Ambient temperature	work and store:-25℃~+70℃
Temperature effect	Between -25℃ +70℃,less than 15% of sensing distance at +23℃
Ambient humidity	work and store:35~95%
Voltage effect	<3%
Anti-vibration	10 to 55 Hz with 1.5 mm double amplitude for 2 hrs each in X,Y, andZ directions
Withstanding voltage	1000VAC50/60Hz1min
nsulation resistance	>50MΩ(DC500V)
Protection degree	IP67
Housing	PC/PBT

Q1:How can I get more information about your product?
A1:Please send the inquiry for us, and then we can send the detail including spec and offer to you.
Q2:Do you accept OEM or ODM?
A2:Yes,But we have quantity requirements.
Q3:What is the payment way of your company?
A3:100% T/T in advance before shipping,(We can accept payment such as T/T, Paypal,Western Union,Alibaba trade assurance,Etc. )
Q4:What is the shipping way?
A4: Usually by air (DHL,UPS,TNT, FedEx etc).
Q5:How long for manufacturing once we place order?
A5: 10000pcs within 5-10days
Q6:How long for samples order?
A6: Usually within 24hour
