Power Module Board

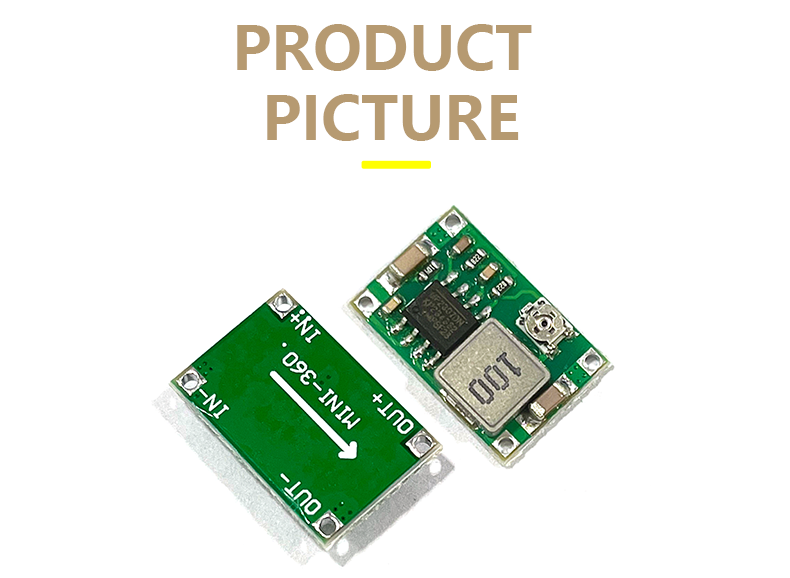

Mini360 Aerial Model Power Decompression Module Board DC-DC Ultra -Small Car Power Supply Super LM25

XST-MZ-187
minimum order
1 piece
Quantity:
Contact Now
add to cart
  • Model Number:XST-MZ-187
  • Power Decompression Module
  • Type:RF/Wireless Development Boards and Kits
  • Place of Origin:Guangdong, China
  • Brand Name:Xunster
  • Application: DIY Power Module Board
  • Model Name:Mini360
  • Input voltage:4.75V-23V
  • Output voltage:1.0V-17V
  • Output current:Peak 3A, 1.8A long time
  • Conversion efficiency:96%
  • On-off level:340kHz
  • Output ripple:30mv
  • Operating temperature:-40 ℃ to+85 ℃

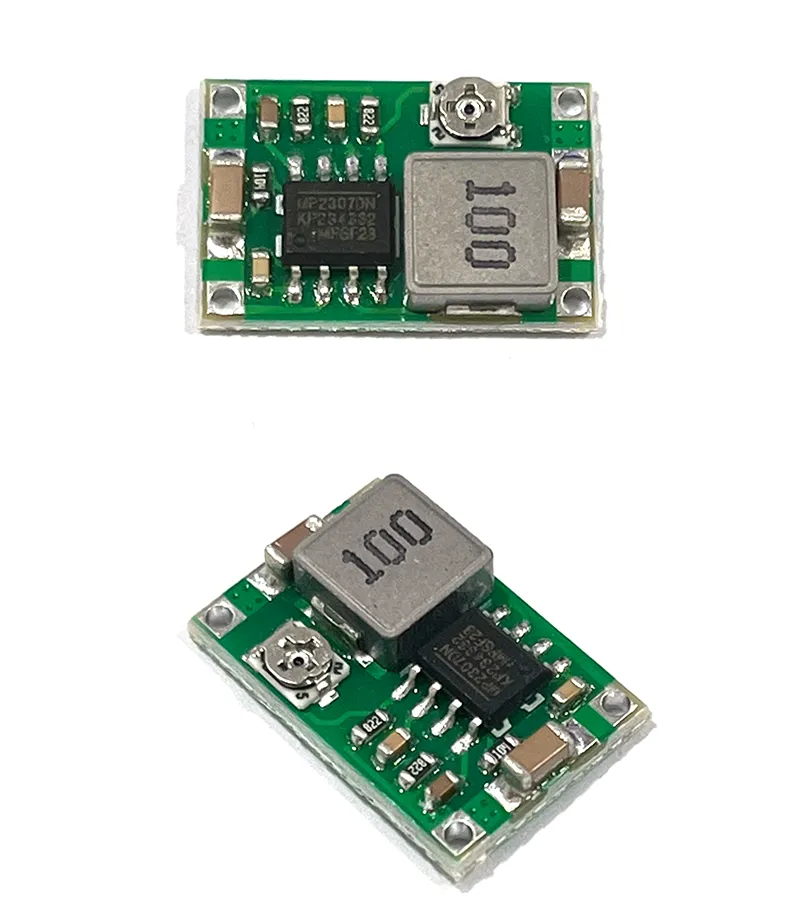

Ultra-small volume DC-DC synchronization rectifier antihypertensive module



Application field:DIY mobile power, vehicle power supply, communication equipment power supply, various occasions (such as aviation models, etc.) with strict requirements for volume and weight.



Features:Use integrated forming power inductance and synchronous rectification control chip, with smaller volume and higher efficiency.






Model NameMini360
(ultra-small volume DC-DC synchronization rectification and boasing module)
Module natureNon -isolation reduction
Rectification methodSynchronous rectification
Input voltage4.75V-23V
Output voltage1.0V-17V
Output currentPeak 3A, 1.8A long time
Conversion efficiency96%(the highest)
On-off level340kHz
Output ripple30mv (air load)
Load Regulation± 0.5%
Voltage adjustment± 2.5%
Operating temperature-40 ℃ to+85 ℃
Peripheral17*11*3.8 (long*width*height) (mm)
