ITR180 U-type Photoelectric Switch Alarm and Anti-theft Trigger Optocoupler Switch

Optocoupler switch (optical coupler, abbreviated as OC in English) is also called opto-isolator, or optocoupler for short. Optocouplers use light as a medium to transmit electrical signals. It has a good isolation effect on input and output electrical signals, so it is widely used in various circuits. At present, it has become one of the most diverse and versatile optoelectronic devices. The optical coupler generally consists of three parts: light emission, light reception and signal amplification. The input electrical signal drives the light-emitting diode (LED) to emit light of a certain wavelength, which is received by the photodetector to generate a photocurrent, and then output after further amplification. This completes the electrical-optical-electrical conversion, thereby playing the role of input, output, and isolation. Since the input and output of the optocoupler are isolated from each other, and the electrical signal transmission is unidirectional, it has good electrical insulation and anti-interference capabilities.

The optocoupler switch is a semiconductor optoelectronic device that encapsulates the light-emitting device and the photosensitive device in the same housing, and transmits electrical signals through the conversion of electricity to light to electricity in the middle. Among them, the light-emitting devices are generally light-emitting diodes. However, there are many types of photosensitive devices, in addition to photodiodes, there are photosensitive triodes, photoresistors, photoelectric thyristors and so on. According to different requirements, photoelectric couplers can be combined into many series of optocoupler switches by different types of light-emitting devices and photosensitive devices.

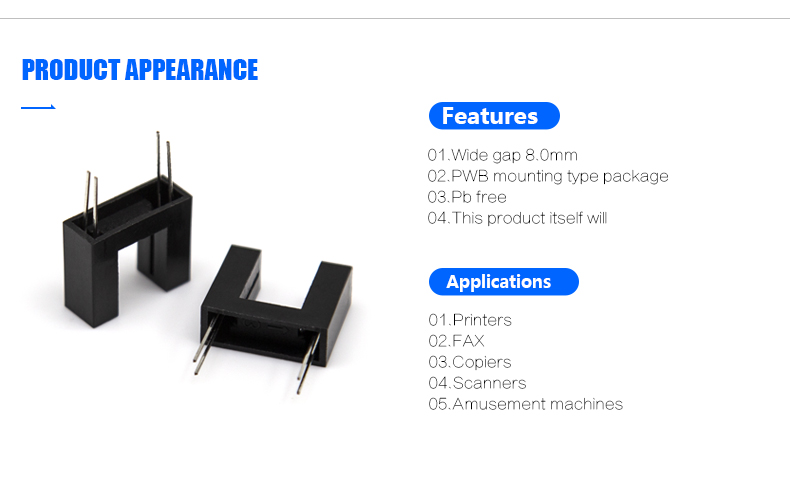

• 1， Slot-type photoelectric switch is actually a kind of through-beam photoelectric switch, also known as U-type photoelectric switch. It is an infrared sensor photoelectric product, which is composed of an infrared emitting tube and an infrared receiving tube.
• function:position detecting hall sensor
• Type:optocoupler switch
• Supplier Type:Original manufacturer
• Supplier Type:ODM
• Media Available:datasheet
• Media Available:Photo
• Rated Voltage:5V
• Place of Origin:CN
• Current Rating (Amps):20MA
• Brand Name:BeeLee
• Model Number:ITR180
• Voltage Rating - AC:5V
• Voltage - Switching DC:5V
• Voltage:5V
• Application:Alarm and anti-theft trigger
• Operating Temperature:-40 to 150 degree
• Color:BLACK
• Current - Switching:20MA
• Switch Function:Alarm and anti-theft trigger
• Brand:optocoupler switch
• Voltage - Switching AC:5V

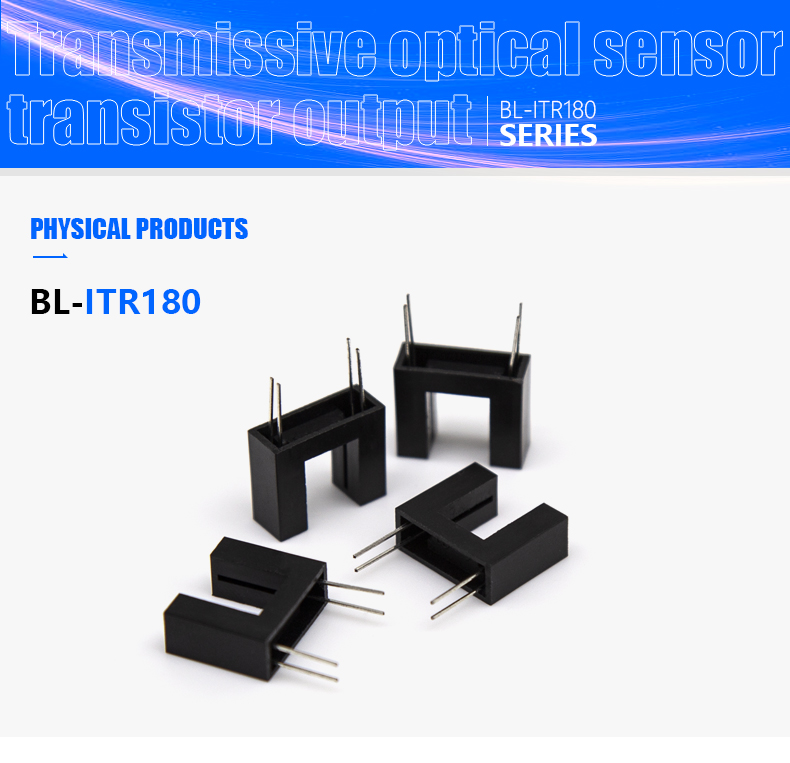

01.The ZOS-ITR180 is a photointerrupter high-performance standard type,combines
high-output GaAlAs IRED with high sensitive phototransistor.

02.encased side-by-side on converging optical axis in a black thermoplastic housing.The phototransistor receives radiation from the IR only .

03.Phototransistor receives radiation from the IR LED only, and avoids the noise from ambient
light.

04.But when an object is in between , phototransistor could not receives the radiation.

05.For additional component information , please refer to IR and PT.
