water flow detection flowmeter

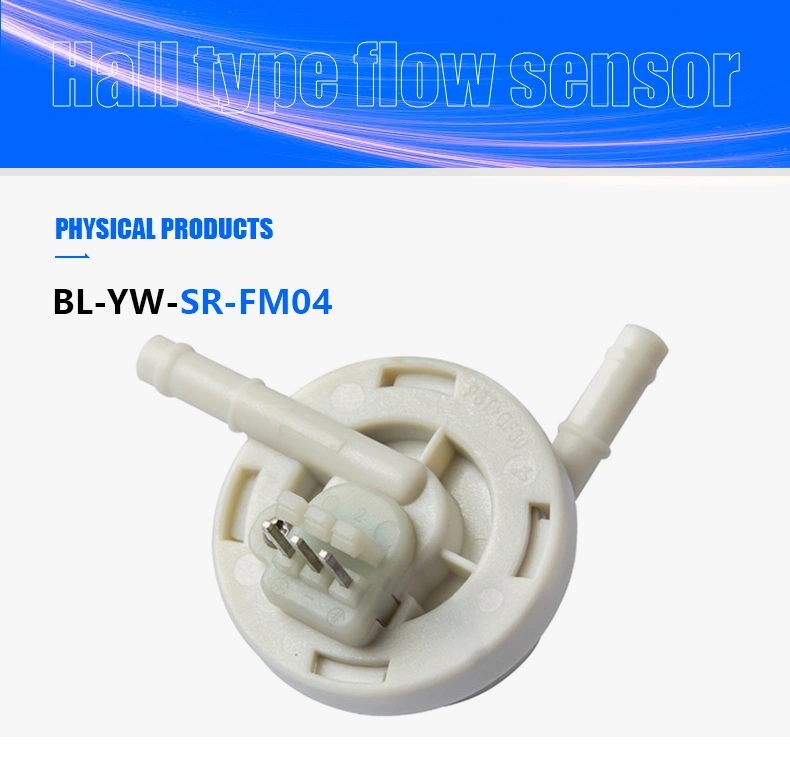

Gbeelee BL-YW-SR-FM04 New Power Water Flow Generator Stabilized Micro-Hydro Generator Inductive flow sensor of Water dispenser

BL-YW-SR-FM04
minimum order
1 piece
Quantity:
Contact Now
add to cart

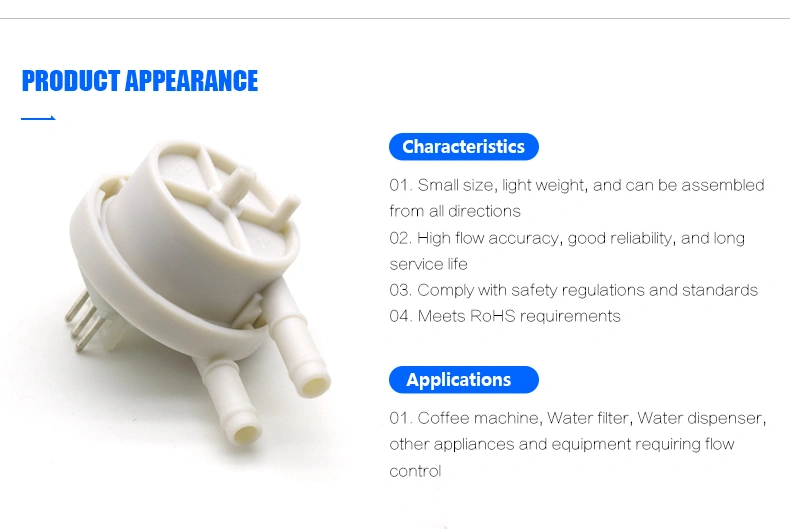

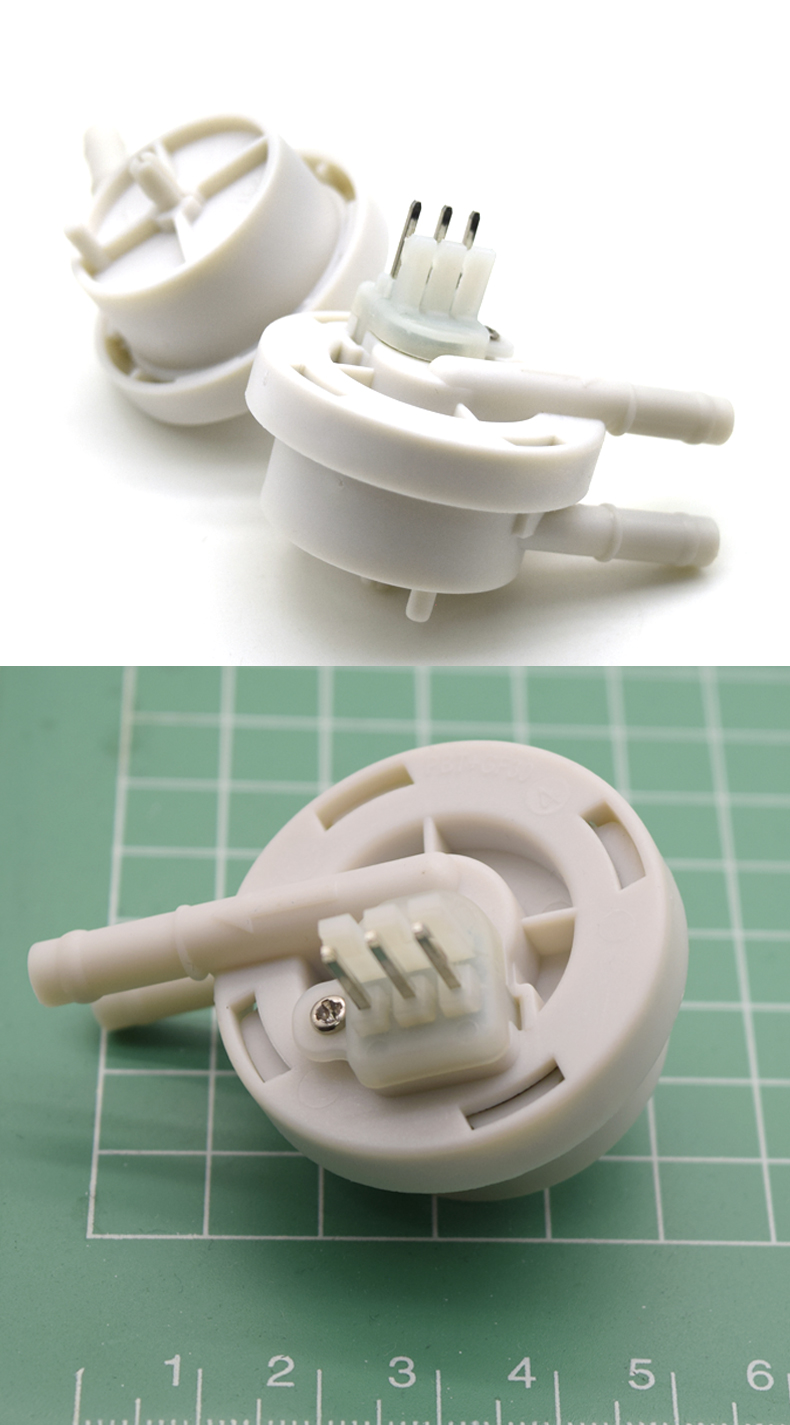

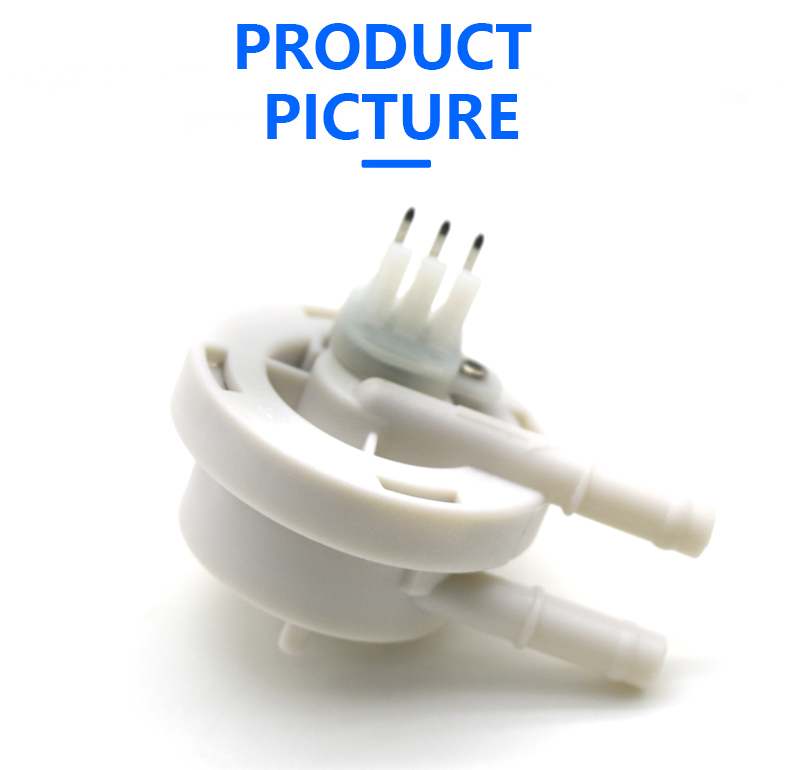

BL-YW-SR-FM04 is a liquid flow sensor for low-flow measurement. Water passing through the sensor body drives the internal sensing element, and the circuit converts that into an electrical output proportional to flow rate. The specified measuring range is 200–1200 ml/min with ±3 % accuracy and ±0.5 % repeatability at a 5 V supply, which puts it in the range used by dispensers, coffee machines and small cooling loops.

Key Specifications

  • Working voltage: 3.8–24 V
  • Working current: < 8 mA at VDD = 5 V, Ta = 25 °C
  • Flow range: 200–1200 ml/min at VDD = 5 V, Ta = 25 °C
  • Measurement accuracy: ±3 %
  • Repeatability: ±0.5 %

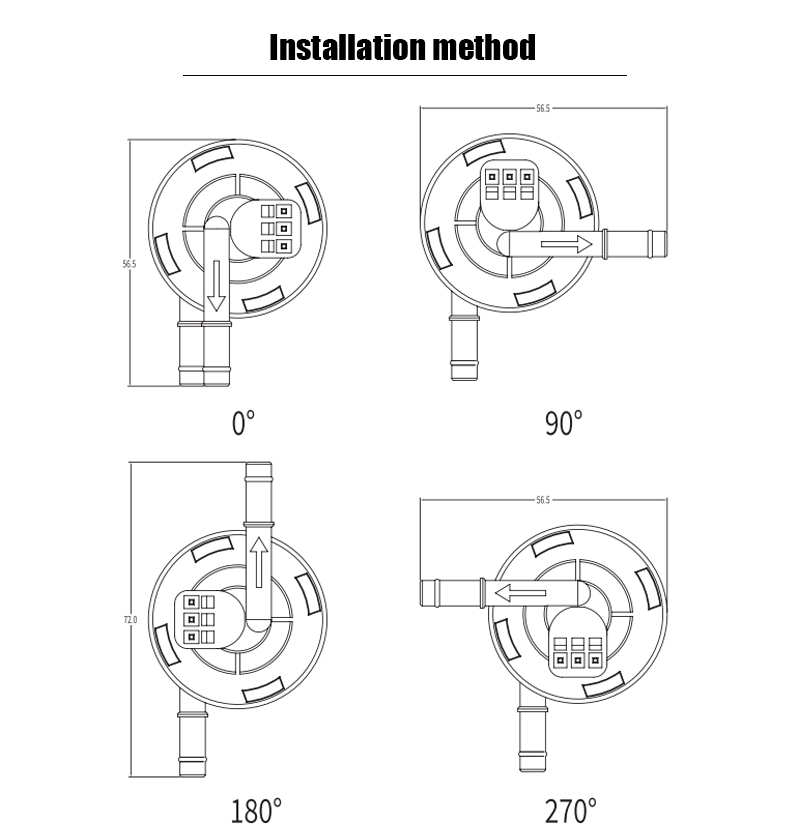

  • Output: pulse signal, approx. 1,250–1,361 pulses per litre (1.8 mm / 2.0 mm orifice; the exact value varies with mounting orientation)
  • Withstand pressure: < 0.65 MPa
  • Working temperature: −20 °C to +100 °C
  • Working life: 30,000 hours

Key Features

  • Low-flow range from 200 ml/min, where many industrial flow meters cannot resolve a reading
  • ±3 % accuracy with ±0.5 % repeatability — repeatability matters more than absolute accuracy for dosing control
  • Wide 3.8–24 V supply and under 8 mA at 5 V
  • Handles line pressure up to 0.65 MPa and liquid up to 100 °C
  • 30,000-hour rated working life

Typical Applications

  • Flow dosing and feedback in water dispensers, coffee machines and tea makers
  • Cooling-loop and pump protection monitoring in compact equipment
  • Flow verification in small appliances and laboratory fixtures
  • Water treatment and dosing equipment operating at low flow rates

Why Buy from GBeelee

GBeelee is the export brand of Dongguan Bailing Electronics, a national high-tech enterprise that has manufactured sensors for more than 18 years and serves over 20,000 customers. Production is RoHS compliant, and OEM/ODM support is available for custom leads, housings and sensitivity. Flow and level sensors are developed by the same engineering team, so a dispensing system can be specified with matched level and flow parts.

Related product lines:Water flow detection flowmeters

FAQ

What is the flow range?
200 ml/min to 1200 ml/min at a 5 V supply. Below 200 ml/min the reading is outside the specified range.

Can it handle hot water?
Yes, up to 100 °C, provided the line pressure stays below 0.65 MPa.

How is the output read?
The output is proportional to flow. Tell us the controller input (analogue voltage or pulse) and we will confirm the wiring and the scaling for your range.

  • Series:capacitance level transducer
  • Mounting Type:Built-in external sticker
  • Description:High and low levels, BL-YW-SR-FM04
  • Model Number:BL-YW-SR-FM04
  • Type:Liquid Level Sensor
  • Place of Origin:Guangdong, China
  • Brand Name:BeeLee
  • Usage:liquid level measurement and liquid level alarm
  • Theory:Floating ball type magnetic liquid level switch
  • Output:analog signal
  • working voltage:3.8-24V
  • Working current:<8mA
  • Flow range:200ml/min- 1200ml/min
  • measurement accuracy:±3%
  • Repetitive accuracy:±0.5%
  • working temperature:-20℃~100℃
  • Withstand voltage range:<0.65MPa
  • working life:50000H




1. Water quality requirements: Avoid the influence of particles and debris.
2. Avoid strong vibration and magnetic interference environments.
3. Ensure that the fluid does not experience rapid pulse fluctuations
4. Ensure that there is no reverse surge pressure
5. The minimum/maximum flow rate should be within the linear range of the flowmeter. 6. The system should be cleaned after appropriate time intervals
7. Avoid voltage and current surges
8. Do not connect the terminals incorrectly, otherwise it may damage the flow meter




parameter
Symbol
Conditions
Type
working voltage
VDD
3.8-24V
Working current
IDD
VDD=5.0V,Ta=25℃
<8mA
Flow range
F.S
VDD=5.0V,Ta=25℃
200ml/min- 1200ml/min
measurement accuracy
M.A
VDD=5.0V,Ta=25℃
±3%
Repetitive accuracy
R.A
VDD=5.0V,Ta=25℃
±0.5%
working temperature
Topr
-20℃~100℃
Withstand voltage range
P.R
VDD=5.0V,Ta=25℃
<0.65MPa
working life
WL
VDD=5.0V,Ta=25℃
50000H







Q1:How can I get more information about your product?
A1:Please send the inquiry for us, and then we can send the detail including spec and offer to you.
Q2:Do you accept OEM or ODM?
A2:Yes,But we have quantity requirements.
Q3:What is the payment way of your company?
A3:100% T/T in advance before shipping,(We can accept payment such as T/T, Paypal,Western Union,Alibaba trade assurance,Etc. )
Q4:What is the shipping way?
A4: Usually by air (DHL,UPS,TNT, FedEx etc).
Q5:How long for manufacturing once we place order?
A5: 10000pcs within 5-10days
Q6:How long for samples order?
A6: Usually within 24hour
