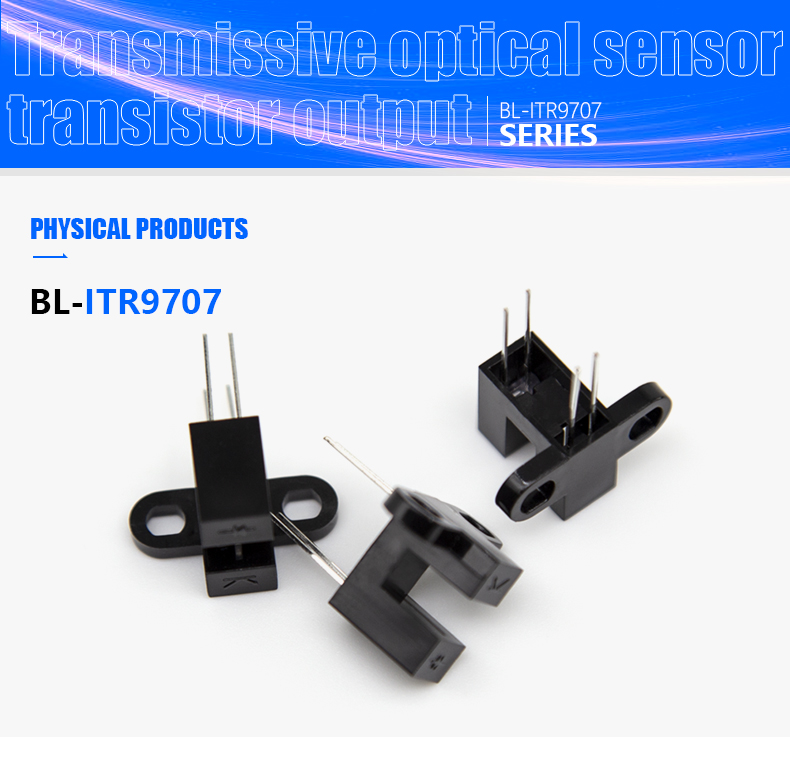

BL-ITR9707 Slot-type photoelectric switch Anti-drowsiness alarm U-shaped infrared receiver reflection switch

BL-ITR9707

Quantity:

Contact Now

add to cart

BL-ITR9707 photoelectric switch ic used for Anti-drowsiness alarm
function:position detecting hall sensor
Type:optocoupler switch
Supplier Type:Original manufacturer
Supplier Type:ODM
Media Available:datasheet
Media Available:Photo
Place of Origin:CN
Model Number:ITR9707
Application:Anti-drowsiness alarm
Brand Name:BeeLee
Brand:optocoupler switch
Color:BLACK
Operating Temperature:260°±5°
Switch Function:Alarm and anti-theft trigger
Current Rating (Amps):20MA
Voltage Rating - AC:5V
Voltage:5V
Voltage - Switching AC:5V
Voltage - Switching DC:5V
Rated Voltage:5V
Current - Switching:20MA

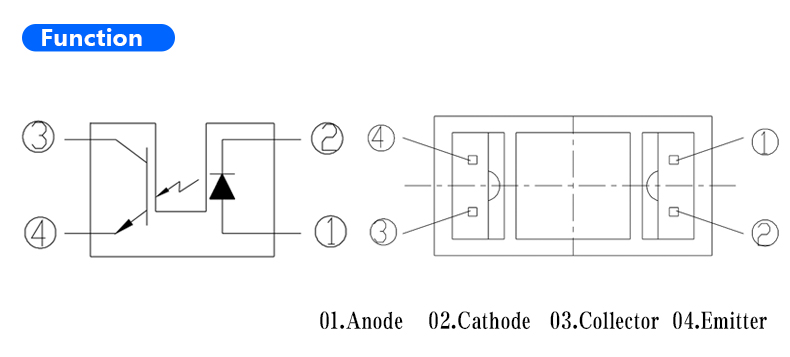

01..jpg 02-1..jpg

The ITR9707 consist of an infrared emitting diode and an NPN silicon phototransistor, encased side-by-side on converging optical axis in a black thermoplastic housing. 03-1..jpg

01.The ITR9707 consist of an infrared emitting diode and an NPN silicon phototransistor, encased side-by-side on converging optical axis in a black thermoplastic housing.

02.The phototransistor receives radiation from the IR LED only .

03.This is the normal situation.

04.But when an object is in between , phototransistor could not receives the radiation.

05.For additional component information , please refer to IR908-7C and PT908-7C

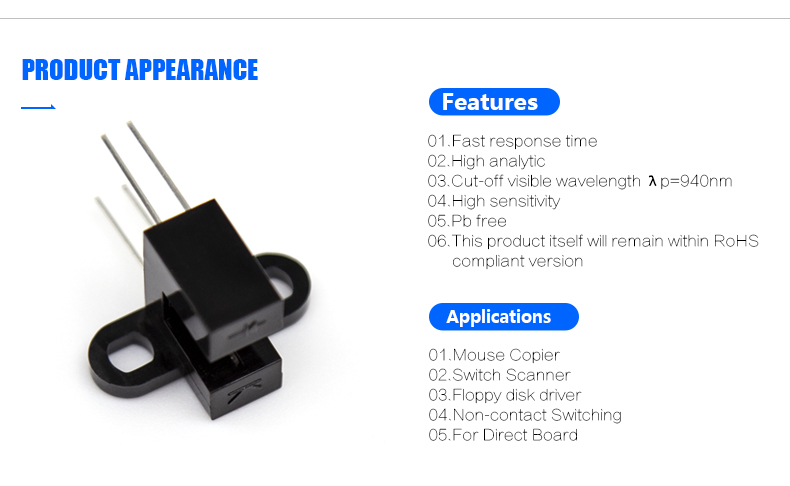

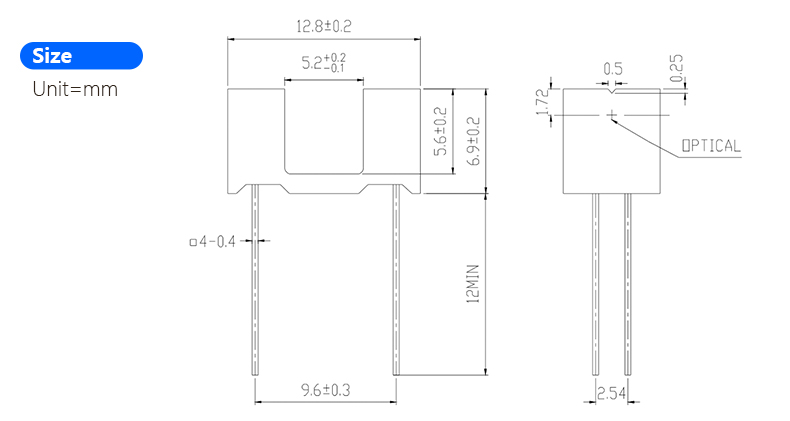

04-1..jpg 05-1..jpg 06-1..jpg

Parameter(Ta=25℃)		Symbo	Min.	Typ.	Max.	Unit	Conditions
Input	Forward Voltage	VF	--	1.2	1.5	V	IF =20mA
	Reverse Current	IR	--	--	10	μA	VR =5V
	View Angle	2θ1/2	--	60	--	nm	IF =20mA
	Peak Wavelength	λp	--	940	--	Deg	IF =20mA
Output (Detector)	Dark Current	ICEO	--	--	100	nA	VCE =20V Ee=0mW/cm2
Output (Detector)	C-ESaturation Voltage	VCE(sat)	--	--	0.4	V	IC =2mA Ee=1mW/cm2
Transfer Characteristics	Collect Current	IC(ON)	0.5	--	--	mA	VCE =5V IF =20mA
	Rise time	tr	--	15	--	μsec	VCE =5V IC =1mA RL =1KΩ
	Fall time	tf	--	15	--	μsec	VCE =5V IC =1mA RL =1KΩ
