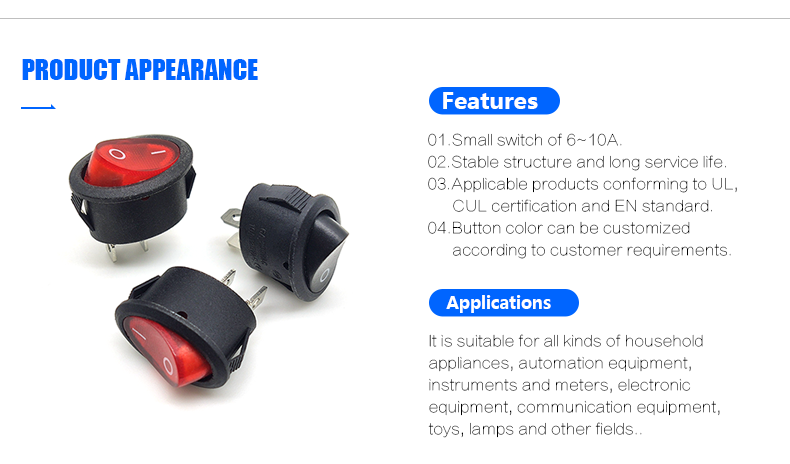

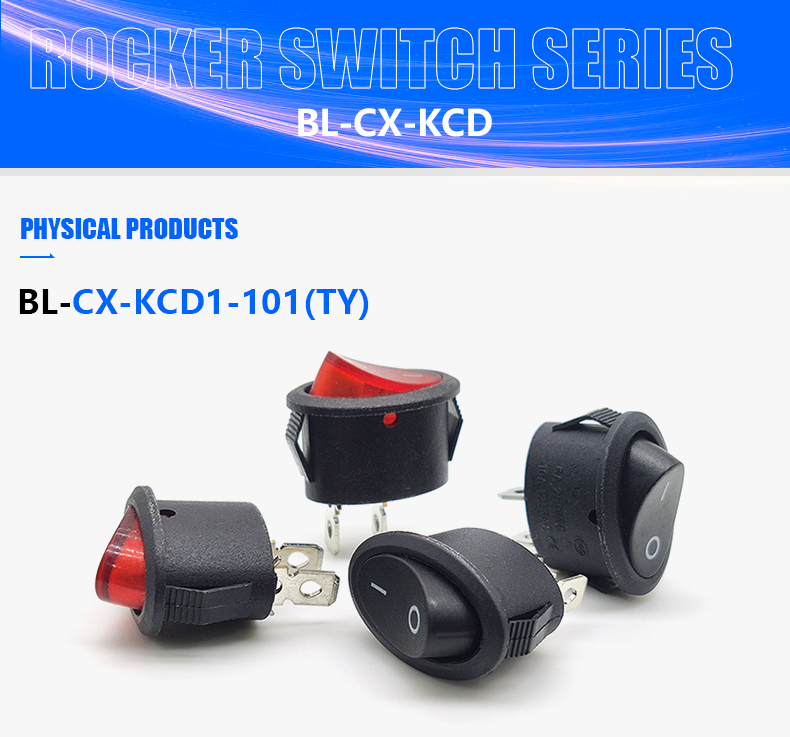

BL-CX-KCD1-101 With circle 250V 6A LED Lighted Round 2 pins Waterproof Rocker Switch for Marine Car RV Truck

• Certification:RoHS
• Whether the smart:NO
• Place of Origin:Guangdong, China
• Brand Name:beelee
• Model Number:BL-CX-KCD1-101 With circle
• Max. Current:6A
• Max. Voltage:250V
• Mechanical Life:10000cycles
• Item:Condition
• Rating:6A 250V/10A 125V
• Insulation Resistance:≥100mΩ
• Contact Resistance:≤50mΩ
• Dielectric strength:≥1500V 5S
• Electrical life:10000cycles

01.Single pole and single throw: 1 moving contact and 1 stationary contact. Only one channel

02.Single pole and double throw: 1 moving contact and 2 static contacts (the static contacts on both sides can be connected respectively)

03.Double-pole single-throw 2 moving contacts and 2 static contacts, with 2 channels

04.Double-pole double-throw has 2 moving contacts and 4 static contacts, and there are 4 channels that can connect the 2 static contacts on both sides respectively)
