Bimetallic Thermostat Temperature Controller Thermal Cut-off Switch BL-HKW-KSD301 250V 10A 16A 0 to 250 Degree with ROHS

• Place of Origin:Guangdong, China
• Brand Name:GBeelee
• Model Number:BL-HKW301-KSD301
• Warranty:Other
• Type:Temperature controller
• Certification:CQC ROHS
• Voltage:AC250V
• Customized:NO
• Whether the smart:Yes
• Series project:BL-WK-301/KSD301
• Operating temperature range:-10~300℃ (optional)
• temperature accuracy:±5℃
• According to the nature of action:Normally closed/opened
• Temperature difference recovery action:8~100℃(optional)
• Material:Electric body and ceramic body
• Contact resistance:≤50mΩ
• Enclosure protection level:IP00
• Temperature range:-25℃- +300℃
• Cycle lifetime:≥10000 times

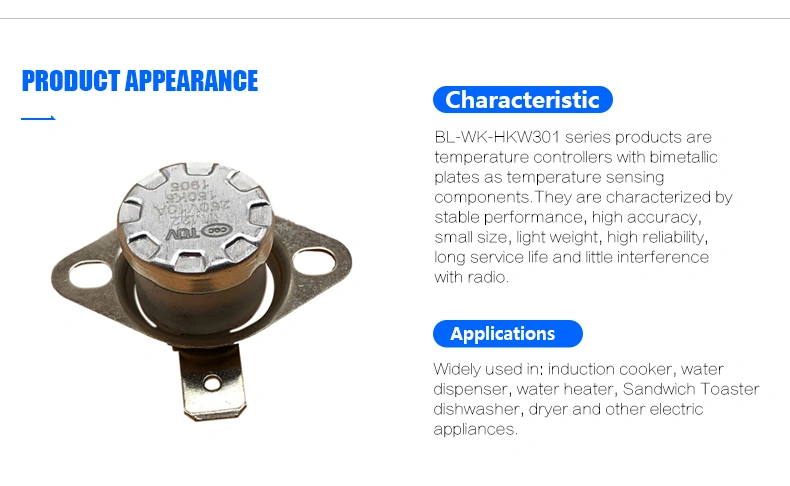

BL-WK-HKW301 series products are temperature controllers which use bimetal as temperature sensing component. 1. When the electrical appliance works normally, bimetal is in a free state, and the contacts are in a closed/open state. When the temperature reaches the operating temperature, bimetal is heated to generate internal stress and act quickly, opening/closing the contacts and cutting/connecting the circuit, thus playing a role in temperature control. When the electrical appliance is cooled to the reset temperature, the contacts will automatically close/open and return to the normal working state. 2: Manual reset requires pressing the reset button to restore the circuit.
