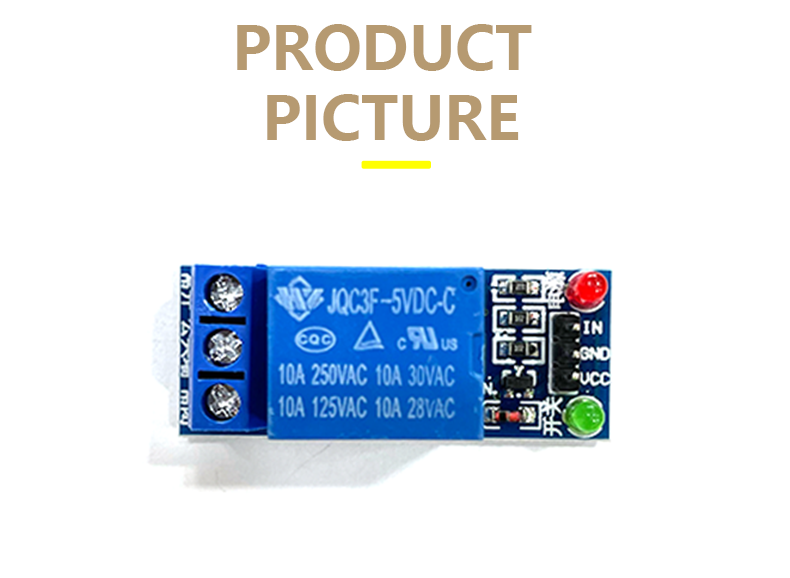

1 Channel Relay Module 5V/12V/24V with Low Level Trigger relay expansion board with indicator light

Product description:

1. This module meets international security standards, and there is an isolation slot in the control area and the load area;

2. Use genuine relay;

3. Have the action instructions of the power and relay, the suction and combination, the disconnection is not bright;

4. When the signal input has a signal, the public end and the often start will be turned on;

5. It can be used as a single -chip microcomputer development module, which can be used as an electrical control;

6. Control DC or AC signals, you can control 220V AC load;

7. There is a frequent opening and one constant closed contact;

8. The blue KF301 terminal is more convenient.

Electric parameters:

Voltage version:5V

Quiescent Current:4mA

Working current:65mA

Trigger voltage:0-2V

Touch current:2mA

For descriptions of high levels and low level triggers, friends who do not understand, please take a look:

High -level trigger refers to a voltage trigger method between the signal input terminal and the ground. It can be understood as a way to trigger the signal input terminal and VCC positive pole short circuit;

Low -level trigger refers to the trigger method of the voltage between the signal input terminal and the ground. It can be understood as a way of the signal input terminal and the GND negative short circuit trigger.
