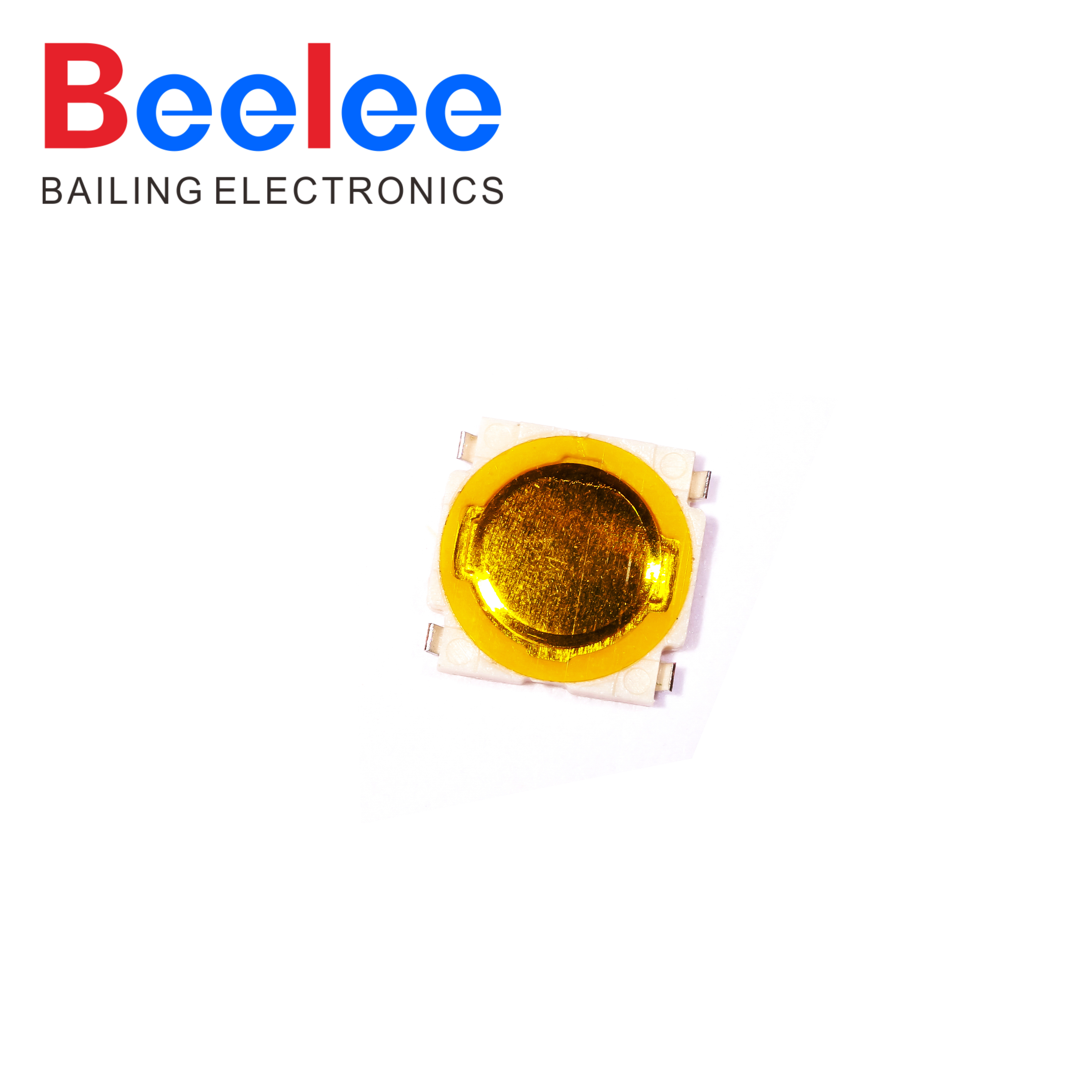

Matters needing attention when using waterproof tact switches

There are also many types of switches, because now our country’s technology is becoming more and more developed, so if we want to choose a switch, we must also understand the types of switches and which ones are better. Let us introduce the size and specifications of the tact switch for you. Type of Tact Switch Package? Let's look at related issues together. The size of the touch switch? Type of Tact Switch Package? Tact switch size specifications What are the dimensions of the touch switch: 6x6mm, 12x12mm, 5x5mm, 3x6mm The 2×4 series structure includes: Xiaobei switch / 2×4×3.5; 3×3 series: H=0.35/0.7/1.5/2.0; 3×4 series: small tortoise with two legs and four legs, middle tortoise with four legs and big tortoise; 3×6 series: The structure has: 3×6×2.5 red head and white head; 3×6×4.3 and 3×6×5 pins, patch, with bracket, side press; 4.5×4.5 series: H=3.8/4.3/5/6/7/8······Structures are: three legs, pins, and patches; 5.2×5.2 series: The structure includes: 0.8h without cover, flat cover, copper head, plastic head 1.5, 1.7, 2.5, 4.3h; 6×6 series: H=2.5/2.7/3.1/3.4/3.8/4/4.3/4.5/4.8/5/5.5/6/6 .5/7/8/9/12. Tact switch package type 1. SMT patch; 2. DIP plug-in. Main technical parameters of tact switch 1. Environmental protection standards, including RoHS, halogen-free, and EU restrictions on hazardous substances control values. 2. Rated current and voltage; usually milliampere, 50mA12VDC. 3. Operating force: 50gf, 100gf, 160gf, 260gf, 320gf, 520gf. 4. Operating life: Operating life is generally inversely proportional to operating force. Take 160gf as an example, usually 6x6 switches can achieve 1 million to 3 million lifespans. 5. Working environment temperature: -25 degrees Celsius to +70 degrees Celsius 6. Switch stroke. What we have introduced above is about the size of the tact switch? We should have some understanding of the related issues of the type of touch switch packaging. Tact switches are also widely used in our lives, so if we want to choose a switch, we must choose a product with a more appropriate size, so that it will be more comfortable to use.
