BL-5150-45 パッチ チルトスイッチ モーション検知 特殊アングルスイッチ 充電パイルガスメーター
- Model Number:BL-5150-45
- Place of Origin:Guangdong, China
- Brand Name:Beelee
- Voltage:1-6V
- Current:2uA-10mA
- Closed resistance:<30 Ω
- Open resistance:>10 MΩ
- Temperature range:-40℃ to 85℃
- Pull force of terminal:500gf for 1 minute
- Operating lifespan:50,000 cycles

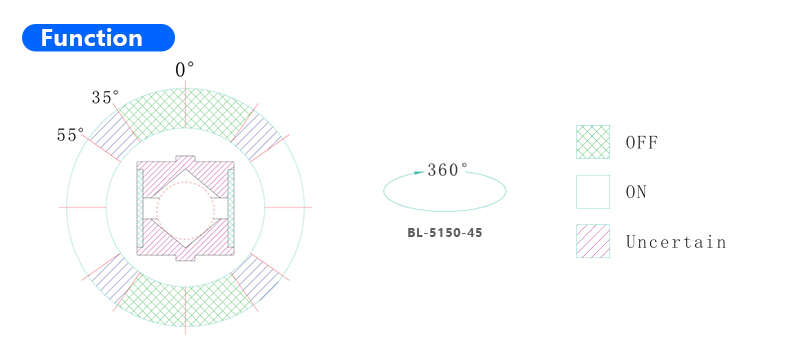

When the product upright is in OFF-state, as the products tilt to any direction and exceed 45 ±10 degrees, switch stay in a disconnect ON-state.

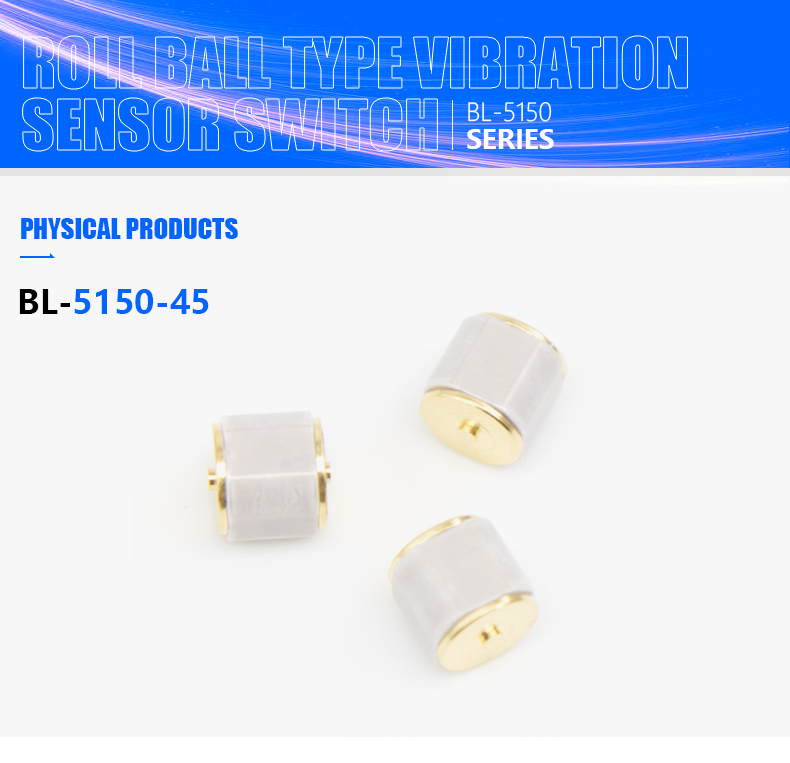

01.BL-5150 is Ball type tilt vibration sensitive switch.
02.When the product upright is in OFF-state, as the products tilt to any direction
and exceed 45 ±10 degrees, switch stay in a disconnect ON-state. 03.Product completely airtight, waterproof, dustproof.
04.In the normal, switch life can reach 100,000 cycles lifespan.
05.Simple for switch signals and circuit , and economic price.
| 1 | Voltage | <6V |
| 2 | Current | <20mA |
| 3 | Conductive time | about 2ms |
| 4 | Closed resistance | <10 ohm |
| 5 | Open resistance | >10 MΩ |
| 6 | Temperature range | Operating: -30℃ to 80℃ |
| 7 | Pull force of terminal | 500gf for 1 minute |
| 8 | Salt mist test | 95% RH, 40℃ for 96 hours |
| 9 | Operating lifespan | 200,000 cycles |
Q1:How can I get more information about your product?
A1:Please send the inquiry for us, and then we can send the detail including spec and offer to you.
Q2:Do you accept OEM or ODM?
A2:Yes,But we have quantity requirements.
Q3:What is the payment way of your company?
A4:100% T/T in advance before shipping,(We can accept payment such as T/T, Paypal,Western Union,Alibaba trade assurance,Etc. )
Q4:What is the shipping way?
A5: Usually by air (DHL,UPS,TNT, FedEx etc).
Q5:How long for manufacturing once we place order?
A7: I0000pcs within 5-10days
Q6:How long for samples order?
A7: Usually within 24hour
